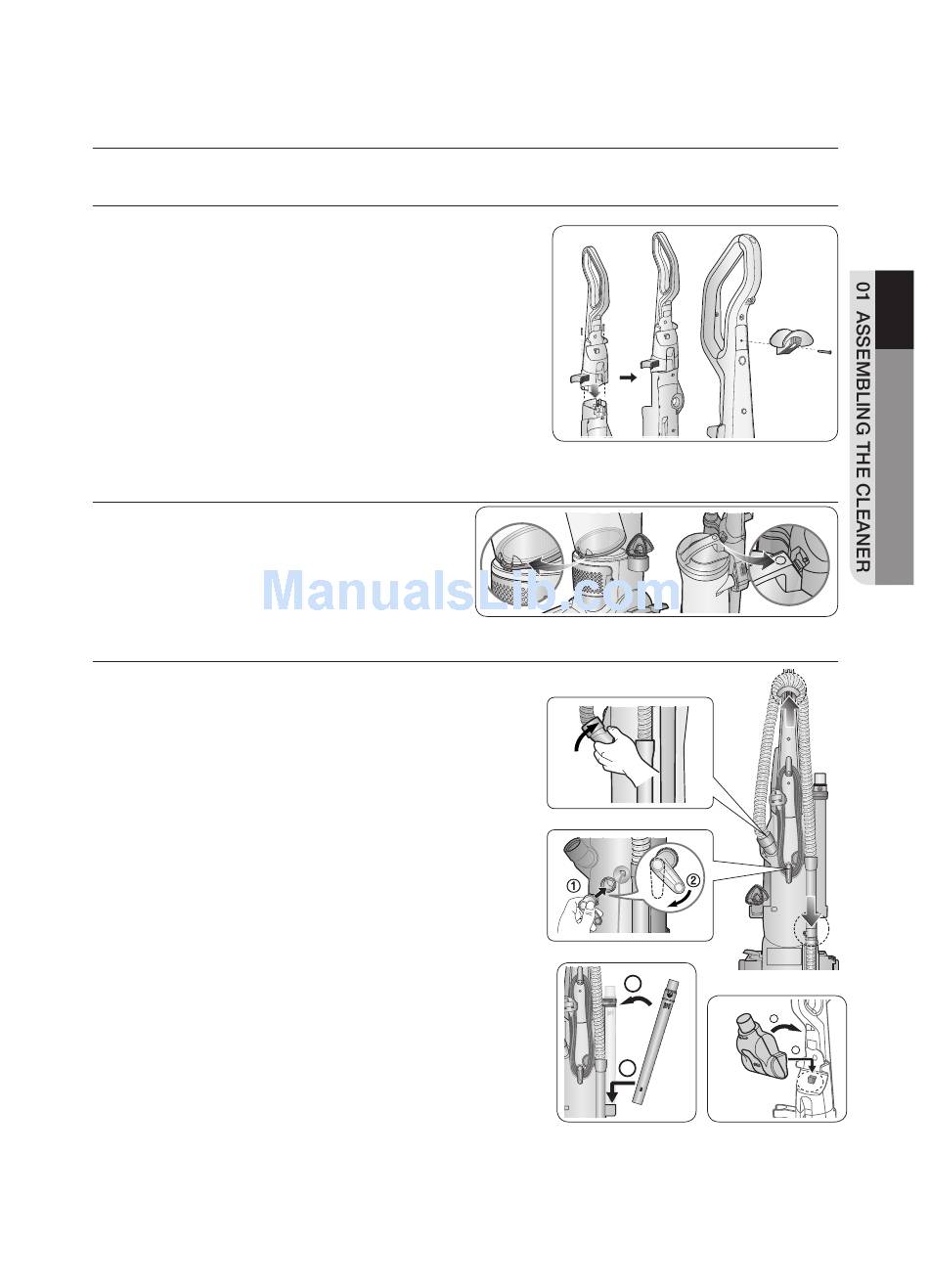

Assembling the cleaner

ATTACH HANDLE TO VACUUM

1. Stand the vacuum upright and slide the base of
the handle fi rmly into the grooves at the top of
the vacuum body.
2. Check to be sure the handle is fi tted to the
vacuum body. If there is a gap, continue to
push fi rmly until the handle is fl ush.
3. Insert the screw provided from the screw
packet into the existing hole. Tighten securely
with a screwdriver.
4. Attach the hose clip into the handle of the unit.
Secure it by inserting a short screw provided.

ATTACH DUST BIN TO VACUUM

Fit the groove located on the lower front
side of the Dust Bin to the hook located
on the vacuum body and attach the hook
located on the Dust Bin Handle to the
vacuum body as shown.

ATTACH VACUUM HOSE AND TOOLS

1. Attach the Twist Snap Hose by lining up the
taps on the base with the corresponding
notches on the back of the vacuum as shown.
2. Turn the Twist Snap Hose clockwise to lock the
hose into place.
3. Grasping the Hose Wand, slide the end of the it
onto the Hose Wand Base. Snap the Hose into
the Hose Clip.
Note : The vacuum will not operate effectively
unless the Hose Wand is fi rmly attached.
4. Attach the Lower Cord Wrap by lining up the
tab on the base with the corresponding notch
on the back of the vacuum and turn it clockwise
as shown.
5. Attach the Extension Wand and the Crevice
Tool together into the holder on the right side of
the body as shown.
6. Attach the Combination Tool into the holder on
the left side of the body as shown.
7. Store Mini Turbo Brush on the front of the
handle by lining up the Mini Turbo Brush base
with the base of the holder then push back to snap into place.
2
2
1
1
*Option *Option
assembling the cleaner _07
