Leviton Renu RUAA1 Series Quick Start Manual

renu
TM

WARNING AND CAUTIONS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that the power is off before wiring!
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
• Use this device with copper or copper clad wire only.
• To be used with Class 2 connectors with interconnecting cables.
• The Class 2 USB ports are not intended for use with appliances and supporting products.
• All connected Class 2 output cables must be routed away from the receptacle slots or any plug/cord inserted into the receptacle.
• The USB ports are used to charge portable electronic devices ONLY (NO data transfer capability).
1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that the power is off before wiring!
2. This device is to be installed in a wall box measuring at least 3" x 2" x 2-1/2" (standard single gang electrical wall box) and wired in accordance with
NEC article 314 box fill requirements.
3. Connect wires per WIRING DIAGRAM as follows: NOTE: Back and Side wire terminals accept #14 - #12 AWG copper or copper clad wires.
4a. To Side Wire: NOTE: If more than one wire is required on a terminal, you cannot side wire and must use the back wire option. Remove insulation
from each circuit conductor per strip gage on device [approx. 3/4" (1.9 cm)]. Loop wires clockwise 3/4 turn around terminal screws. FIRMLY tighten
screws over wire loop.
4b. To Back Wire: Remove insulation from each circuit conductor [approx. 1/2" ( 1.3 cm)]. Insert straight wires under clamps next to appropriate terminal
screws. Tighten screws FIRMLY.
5. Mount device in wall box with screws provided.
6. Snap Renu TM screw-less wallplate directly onto device strap with Leviton logo properly oriented.
7. Restore power at circuit breaker or fuse. Installation is complete.
NOTE: Your device may include color options. To change color of the face see COLOR CHANGE figures.

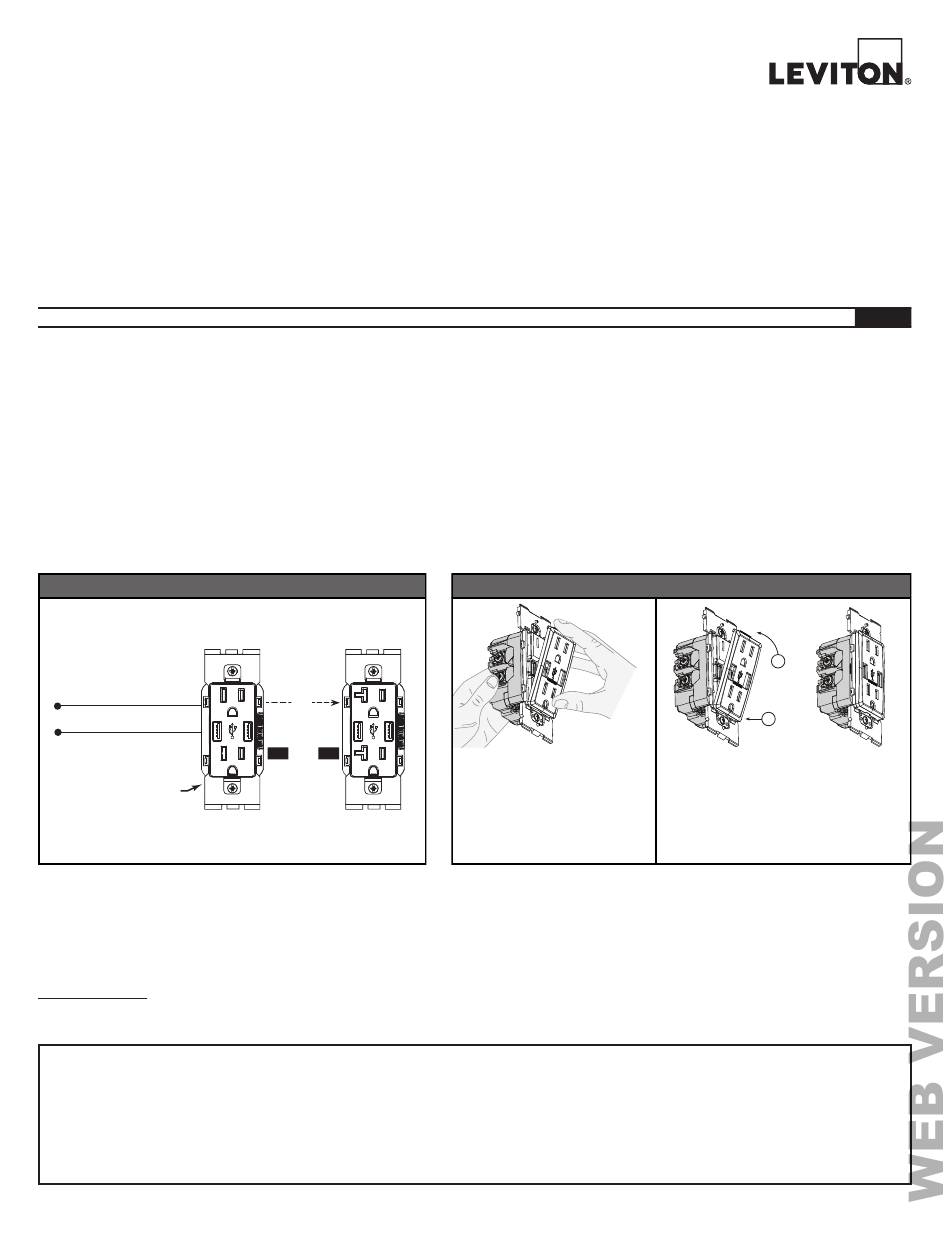

Wiring Diagram / Schéma de cablâge / Diagrama de Cableado
Hot (Black)
Actif (Noir)
Fase (Negro)
Neutral (White)
Neutre (Blanc)
Green
Neutro (Blanco)
Ground
Terre (vert)
Verde a tierra
This product is covered by U.S. Pat. Nos.: 7,355,117; 7,820,909; 8,242,362; 8,592,681; D662,885 and corresponding foreign patents.

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in
materials and workmanship under normal and proper use for five years from the purchase date. Leviton's only obligation is to correct such defects by repair or
replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of
this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered
in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of
any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of
any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect,
special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to
perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.

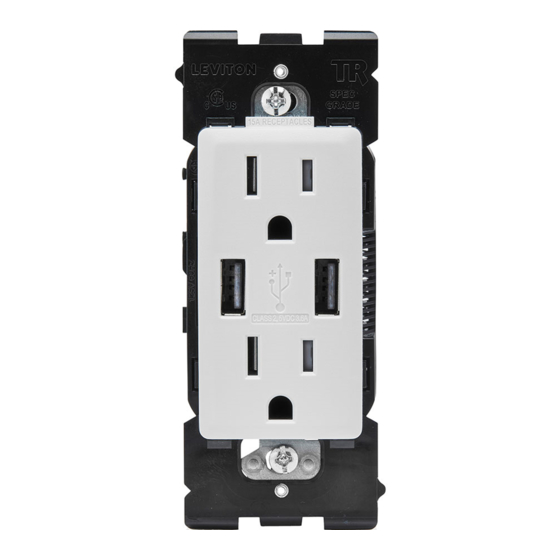

Renu USB Charger/Tamper Resistant Receptacle
TM
Cat. No. RUAA1 - Rated: 15A-125V
Cat. No. RUAA2 - Rated: 20A-125V

INSTALLATION

or
ou
o
15A 20A

LIMITED 5 YEAR WARRANTY AND EXCLUSIONS

For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) www.leviton.com
Color Change / Changement de couleur / Cambio de Color
Push down tabs per diagram, one at a
time and rotate forward to release face
Pousser une à la fois les pattes vers le
bas et basculer la face vers l'avant pour
la dégager.
Presione las pestañas hacia abajo de
acuerdo al diagrama, una a la vez y gire
para soltarla de la cara
PK-A3175-10-02-2A
2
1
Attach new face by inserting bottom hinge tabs (1),
then pivot and snap the new face to attach (2)
Fixer la nouvelle face en insérant les pattes
inférieures (1), et en la faisant basculer vers le haut
pour l'enclencher (2).
Coloque la cara nueva insertando las pestañas en
la base (1), luego gire y presione la nueva
cara para unir
English
