WARNINGS AND CAUTIONS

• Read and understand all instructions. Follow all warnings and instructions marked on the product.
• Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a
wet basement, or near a swimming pool.
• Never push objects of any kind into this product through openings, as they may touch dangerous
voltages.
• SAVE THESE INSTRUCTIONS.

DESCRIPTION

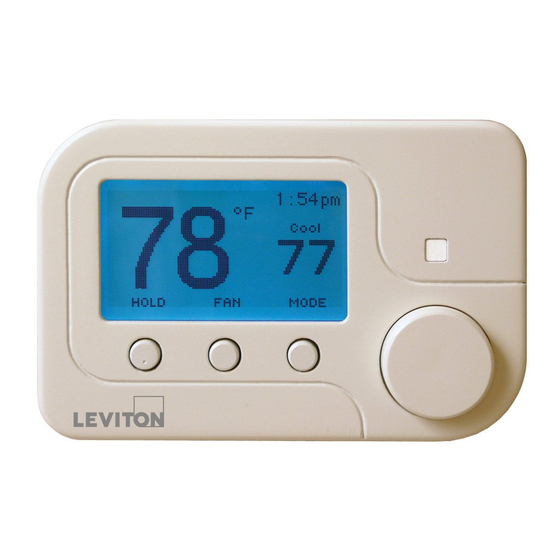

The Omnistat2 Wireless ZigBee thermostats offer all the features of the standard Omnistat2 thermostats, plus uses ZigBee wireless to communication with the Leviton controller and
other devices on the ZigBee network.

HOME SCREEN

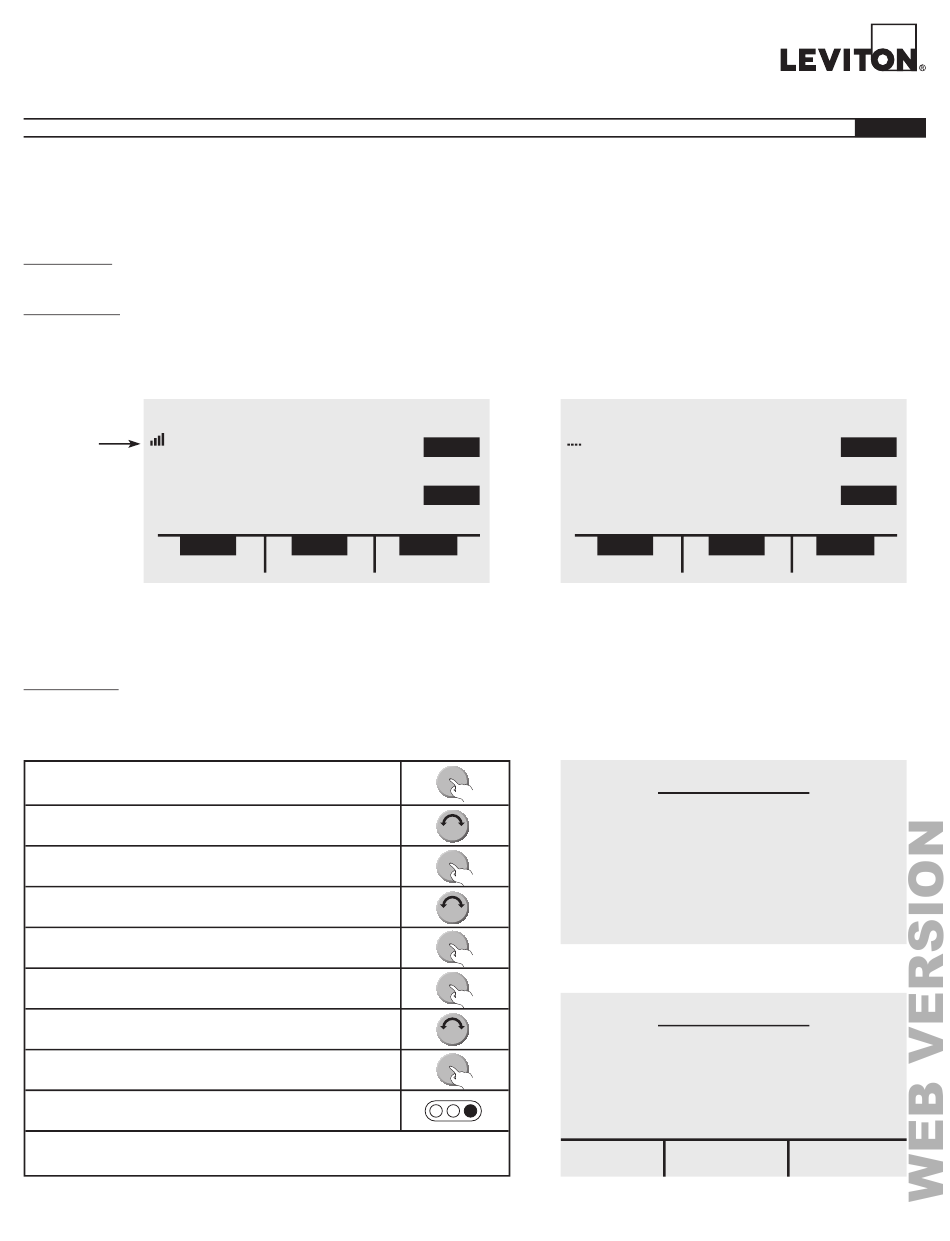

The Home screen now has a signal strength indicator that indicates the signal strength between the Omnistat2 thermostat and the ZigBee Interface Module (ZIM). When the
Omnistat2 is enrolled in the ZigBee network and if it is able to communicate with the ZIM, the bars on the indicator will be illuminated, according to the signal strength. However, if
the Omnistat2 is not enrolled in the ZigBee network or if it is unable to communicate with the ZIM, the bars will appear as four dots.
Thursday
76
Signal
Strength
Indicator
HOLD
Off

ZIGBEE SETUP

Enrolling an Omnistat2 to ZigBee Network

Each Omnistat2 Wireless ZigBee thermostat must be individually enrolled. To start the enrollment process on an Omnistat2:
From the Home screen on the Omnistat2, press the Scroll Wheel.
Turn the Scroll Wheel to highlight "Setup".
Select "Setup" by pressing the Scroll Wheel.
Turn the Scroll Wheel to highlight "Installation Settings".
Select "Installation Settings" by pressing the Scroll Wheel.
Acknowledge the Warning by pressing the Scroll Wheel.
Turn the Scroll Wheel to highlight "ZigBee Network".
Select "ZigBee Network" by pressing the Scroll Wheel.
Press the "Enroll" button to begin the enrollment process.
Enroll the device using the ZigBee Interface Module (ZIM).
OMNISTAT2 WIRELESS ZIGBEE ADDENDUM
Cat. No. RC-2000WHZB
Installation Instructions and User's Guide
5:08pm
F
o
45
%RH
FAN
Cycle
Omnistat2 enrolled and communicating
INSTALLATION
WARNINGS AND CAUTIONS
• Never install communications wiring or components during a lightning storm.
• Never install communications components in wet locations unless the
components are designed specifically for use in wet locations.
• Never touch uninsulated wires or terminals unless the wiring has been
disconnected at the network interface.
• Use caution when installing or modifying communications wiring or
components.
Thursday
Eve
COOL
76
HEAT
59
MODE
Auto
5:08pm
76
F
o
45
HOLD
FAN
Off
Cycle
Omnistat2 not enrolled and not communicating
ZIGBEE NETWORK
Finding Network...
Back
ZIGBEE NETWORK
Enrolled in ZigBee Network
Back
Details
PK-93332-10-B0-0A
AR2253
(65Z00)
ENGLISH
Eve
COOL
76
HEAT
%RH
59
MODE
Auto
Disband
Disband
