Leviton ZLDUZ Quick Start Manual

WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
Product Description

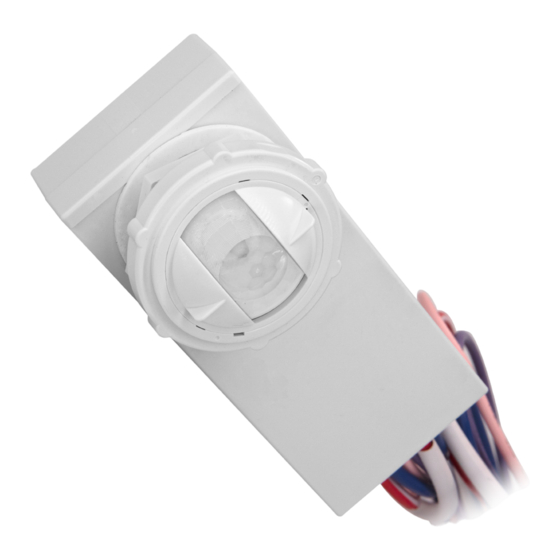

The Leviton Integrated Smart Sensor and Photocell uses Bluetooth™ 5.0 technology for
configuration. It is designed for use with Switching or 0-10V LED Drivers and Fluorescent
Ballasts and uses Passive Infrared (PIR) detection technology to monitor a space for
occupancy using advanced lenses. The specialized lenses provide extended Field-of-View
(FOV) for low-mid bay and mid-high bay applications.
Leviton's Integrated Smart Sensors combine multiple sensors and technology to provide
lighting control automatically and efficiently. Occupancy sensors turn the lights
ON and keep them ON while the space is occupied and turns them OFF when the space
is vacant, and the delayed-off timer has expired. Photocell detects natural light and dims
lighting up or down as needed for additional energy efficiency and occupant comfort benefits.
The sensor continually analyzes and adjusts to ensure adequate lighting under
varying conditions.
For Optimal Performance:
The ZLDUZ sensor lenses establish dozens of zones of detection. The sensor is sensitive to
the heat emitted by the human body. In order to trigger the sensor, the source of heat must
move from one zone of detection to another. The device is most effective in sensing motion
across its field-of-view, and less effective sensing motion directly towards or away from
the sensor. Keep this in mind when selecting the installation location. Note that occupancy
sensors respond to rapid changes in temperature, so care should be taken NOT to mount the
device near a climate control source (i.e., radiators, air exchanges, and air conditioners). Hot
or cold drafts will register as body motion to the device and will trigger it if the unit is mounted
too close. It is recommended to mount the occupancy sensor at least 6 ft away from a climate
control source.
Tools Needed: Parts Included:
• Wire Stripper • Fixture Sensor (1)
• Cutters
• Low/Mid Bay Lens (1)
• 1-7/16 in. Wrench
• High Bay Lens (1)
• Gasket/Rubber Flat Washer (1)
• Lock Nut (1)
• Aisleway Mask Cover (2)
Installation
1.
WARNING:
TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER at circuit breaker or fuse
and test that power is off before wiring!
2.
Prepare and connect wires. Refer to the appropriate wiring diagram.
For 0-10V Control Wiring: Connect the VIOLET wire to the 0-10V DIM (+) terminal and
the GRAY or PINK wire to the 0-10V DIM (-) terminal using Class 1 or Class 2 wiring
methods as indicated in these instructions, ballast/fixture/driver instructions, or ballast/
fixture/driver label markings. Observe all requirements of any authority having jurisdiction
with respect to wire type, sleeving, isolation methods, and the like.
3.
Install the sensor.
a. The sensor is designed to be installed through a 1.3 in. diameter hole in material up to
0.125 in. thick. Use lock nut to further secure controller, if needed.
b. Remove the nut from the lens tube; do not remove gasket.
c. Install sensor through hole with gasket against sensor body, and tighten nut to no more
than 15 lb.-in.
d. Install lens by lining up the mark on the lens 45° counterclockwise from the near end of
the sensor and rotating it 45° clockwise to lock it in place.
e. Install optional mask (if required) by aligning the marks on the lens and mask and
rotating the mask.
f. Restore power at circuit breaker or fuse.
NOTES:
• Allow approximately 30 seconds for start-up. If the lights turn ON and the LED blinks
BLUE/GREEN to indicate Daylight Harvesting Calibration has started, then the sensor was
installed properly. If the operation is different, refer to the Troubleshooting section.
• The sensor is preset to work without any adjustments. If you would like to change the
factory settings, refer to the Configuration section.

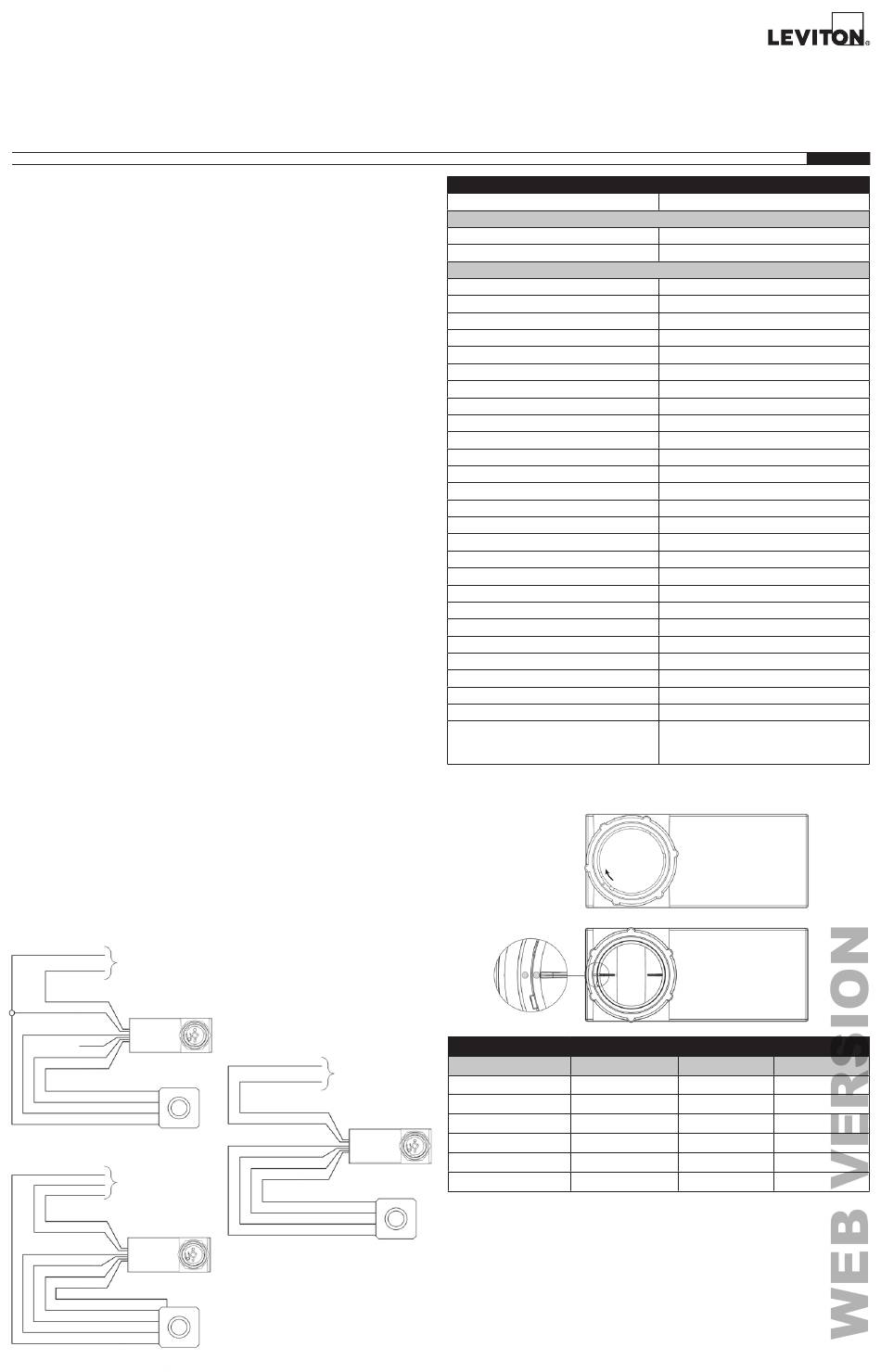

Wiring Diagrams
1-POLE
NEUTRAL
LIGHTING
CIRCUIT
LINE
LINE FEED
BLU
RED w/ WHT SLEAVE
BLUE/WHT
RED/WHT (N/C)
VIO
ZLDUZ
PNK/GRY
LIGHTING LOAD
2-POLE
NEUTRAL
LIGHTING
LINE 2
CIRCUIT
LINE 1
LINE FEED
BLU
RED
BLUE/WHT
RED/WHT
VIO
ZLDUZ
PNK/GRY
LIGHTING LOAD
Integrated Smart Sensor and Photocell
Cat. No. ZLDUZ
INSTALLATION INSTRUCTIONS
2-POLE DELTA
LINE 2
LIGHTING
CIRCUIT
LINE 1
LINE FEED
BLU
RED
BLUE/WHT
RED/WHT
VIO
ZLDUZ
PNK/GRY
LIGHTING LOAD
CAUTION:
For indoor or outdoor applications.
Input Voltage/Frequency
Current Consumption
LED, Electronic Ballast, General Use @ 120V
LED, Electronic Ballast, General Use @ 208V
LED, Electronic Ballast, General Use @ 230V
LED, Electronic Ballast, General Use @ 240V
LED, Electronic Ballast, General Use @ 277V
LED, Electronic Ballast, General Use @ 347V
LED, Electronic Ballast, General Use @ 480V
Resistive, Tungsten @ 120V
Resistive, Tungsten @ 208V
Resistive, Tungsten @ 230V
Resistive, Tungsten @ 240V
Resistive, Tungsten @ 277V
Resistive, Tungsten @ 347V
Resistive, Tungsten @ 480V
Motor @ 120 - 480V
0 -10V Dimming Control
Wire Lead Length
Environmental Rating
Network Connections
Operating Temperature
Storage Temperature
Relative Humidity
Purpose of Control
Pollution Degree
Impulse Voltage
Action Control Type
Dimensions
* To be used with Electronic Ballast (LED, CFL) not exceeding 287A peak current and 1.22ms pulse width.
** When installed in an appropriate IP66 rated enclosure/fixture.
Mounting Height (Ft.) Field of View Lens
8 Low Bay
15 Low Bay
20 Low Bay
20 High Bay
30 High Bay
40 High Bay
Operation
Occupancy Operation
Occupancy Mode: The Occupancy mode and associated settings are configured using the
Leviton Smart Sensor App. These configuration options define how the sensor responds
to occupancy.
• Occupancy (DEFAULT): In this mode, motion detection by the infrared sensor will turn the
lights ON as well as keep them ON.
• Photocell-Only (Occupancy Disabled): When in Photocell-Only mode, the Occupancy
Sensor is disabled, and the sensor ignores motion. In this mode the lights are ON and the
sensor performs daylighting/daylight harvesting only.
NOTE: The Motion Indicator light will blink RED twice (2x) (once per second) for 2 seconds
each time motion is detected.
SPECIFICATIONS
120-480 VAC, 50/60 Hz
Max 15 mA
Standby 8 mA
Load Ratings
6.7 A
5.0 A
5.0 A
5.0 A
5.0 A
5.0 A
5.0 A*
800 W
1040 W
1150 W
1200 W
1380 W
1700 W
2400 W
1/3 hp
50 mA MAX (sinking)
26 inches
IP66** (Type 3R)
Bluetooth 5.0
-40 °F to 167 °F (-40 °C to 75 °C)
-40 °F to 185 °F (-40 °C to 85 °C)
0% to 90% RH, Non-Condensing
Energy Management Equipment
2
6000V
1
Width: 1.8 in. (45.7 mm)
Length 4.34 in. (110.3 mm)
Depth: 0.94 in. (23.9 mm)
FIELD OF VIEW
Major (Sq. Ft.)
2050
1750
1850
2300
5300
8250
DI-000-ZLDUZ-02B
ENGLISH
Minor (Sq. Ft.)
900
750
350
1050
800
550
