Leviton 5206-S00 Installation

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST
THAT THE POWER IS OFF BEFORE WIRING!
WARNING: If you are not sure about any part of these instructions, consult an electrician.
NOTE: For use with #8 AWG thru #4 AWG copper, copper-clad, or aluminum wire. Tighten terminal screws to 25 in-lbs.
of torque.
Strip/Insert/Tighten
1
Dénuder/Insérer/Serrer
Pele/Inserte/Apretar
0.562"
(1.43 cm)

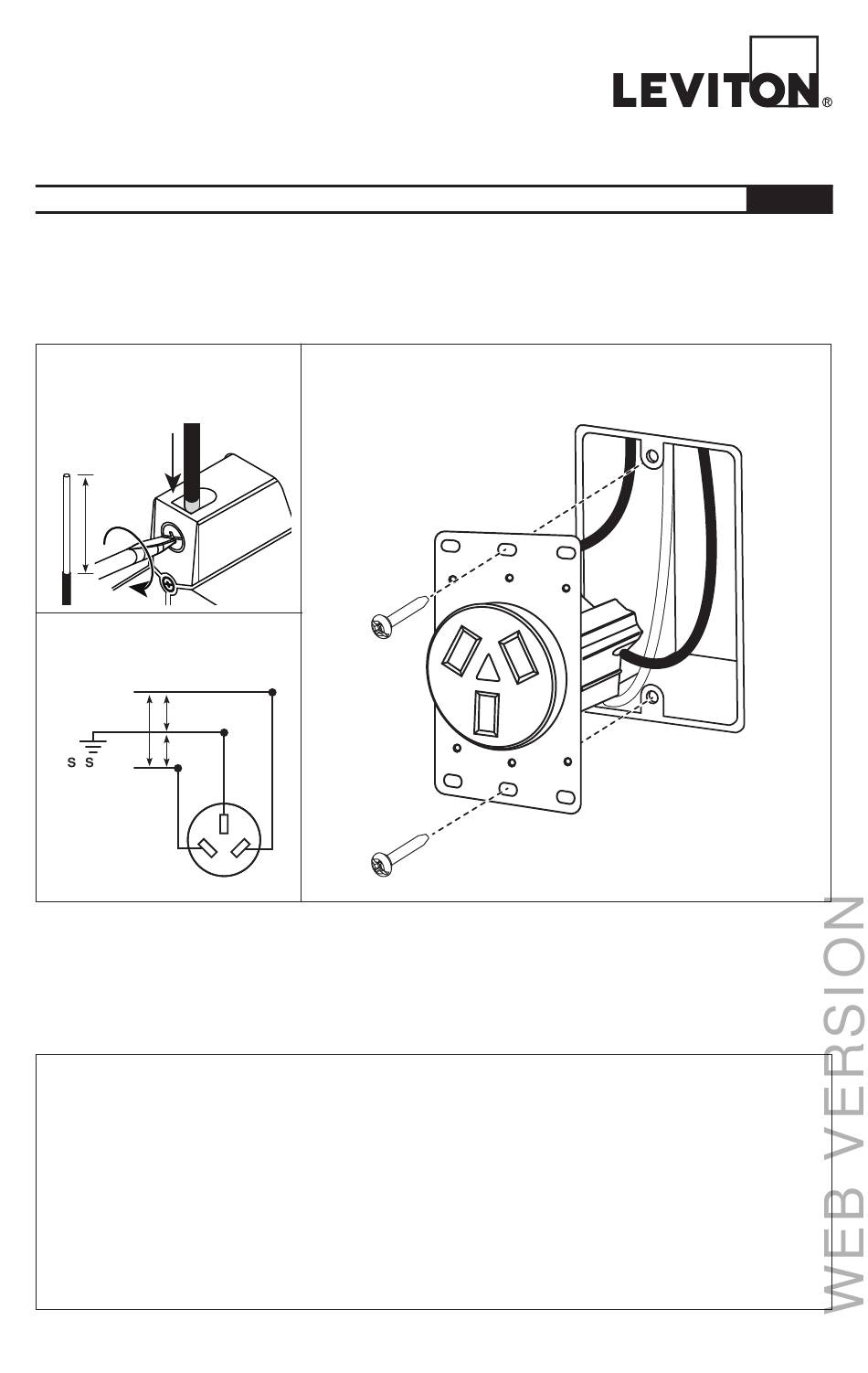

Wiring Diagram

2
Schéma de câblage
Diagrama de Cableado
250V
125V
W
125V
Y GR
Y
10-50R
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing
of Canada ULC to the attention of the Quality Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada
H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time
of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for ten years from the
purchase date. Leviton's only obligation is to correct such defects by repair or replacement, at its option. For details visit
www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of this
product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded,
misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance
with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and
fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of
any such implied warranty, including merchantability and fitness for a particular purpose, is limited to ten years. Leviton
is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to,
or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The
remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call: 1-800-824-3005 (USA Only) or 1-800-405-5320 (Canada Only) www.leviton.com

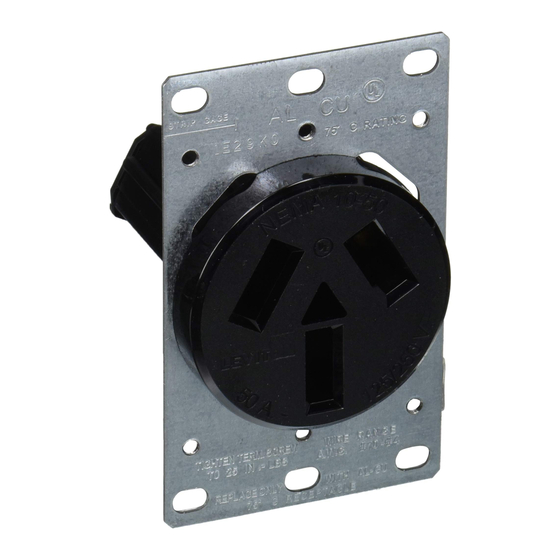

50A Flush Mount Power Outlet
INSTALLATION
3
W
X

LIMITED 10 YEAR WARRANTY AND EXCLUSIONS

Install
Installer
Instalar
DI-020-05206-20C
English
