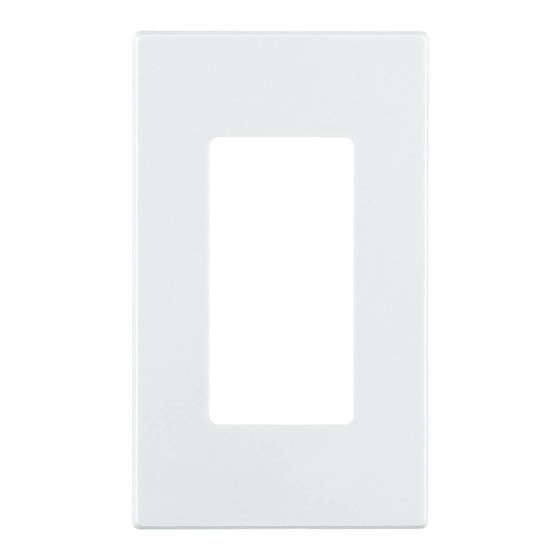

Snap-on wallplates

Advertisement

®
Decora Plus
Snap-On
Wallplates
For Decora Plus
and Decora
Designer Wiring
Devices

APPLICATION:

For use in all branch circuits in commercial,
industrial and institutional installations, to
cover Decora Plus and Decora wiring
devices in outlet and/or switch boxes in
compliance with the NEC and other
regulatory codes.

FEATURES AND BENEFITS:

Screwless, snap-on design for contemporary architectural styling. Complements style of Decora
plus devices.
Complete kit includes snap-on wallplate, mounting bracket and required assembly screws.
Impact-resistant thermoplastic construction stands up to abuse; resists fading and discoloration,
grease, oils, organic solvents and moisture.
High dielectric strength and arc resistance, meeting or exceeding UL Standard 514.
Meets material test standards of NEMA WD-1, ANSI and Federal Specifications W-P-544.
(Designer-configuration wallplates are not called for on Federal Specifications.)
• UL Listed, CSA Certified
• Backed by Leviton's Limited Ten-Year Warranty

TYPICAL SPECIFICATION:

Leviton Decora Plus Snap-On Wallplates shall be designed to cover Decora Plus and Decora wiring
devices in applications where a screwless, architectural appearance is desired. Commercial Specification
Grade Decora plus wallplates shall be UL Listed, CSA Certified and meet NEMA standards WD-1. Two
piece Decora plus wallplate and mounting assembly shall feature impact-resistant thermoplastic
construction and be backed by Leviton's Limited Ten-Year Warranty.
®
®
®
SPECIFICATION SHEET
FOR CAT. NOS. 80301, 80309,
80311, 80312, 80321, 80326

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leviton 80301

  • Page 1 • Backed by Leviton’s Limited Ten-Year Warranty TYPICAL SPECIFICATION: Leviton Decora Plus Snap-On Wallplates shall be designed to cover Decora Plus and Decora wiring devices in applications where a screwless, architectural appearance is desired. Commercial Specification Grade Decora plus wallplates shall be UL Listed, CSA Certified and meet NEMA standards WD-1. Two piece Decora plus wallplate and mounting assembly shall feature impact-resistant thermoplastic construction and be backed by Leviton’s Limited Ten-Year Warranty.
  • Page 2 For more information, contact your Leviton representative or: Leviton Manufacturing Company, Inc. 59-25 Little Neck Parkway, Little Neck, NY 11362-2591 TEL: 1-800-323-8920 FAX: 1-800-832-9538 © Copyright 1998, Leviton Manufacturing Co., Inc. All rights reserved WALL WALL 0.255 (6.48 mm) 0.080 (2.03 mm)
