5.2.6 Gateway mounting

The SKF Enlight Collect Gateway, excluding mounting plate, has overall dimensions
of 220 mm high, 220 mm wide and 50.5 mm deep. It is supplied fitted to the mounting
plate shown below. This mounting plate has overall dimensions of 195 mm wide, 250
mm high and is 3 mm thick. It provides for a 4-point mounting and has four 6.5 mm,
clearance for M6, holes on a 150 mm by 220 mm pitch.

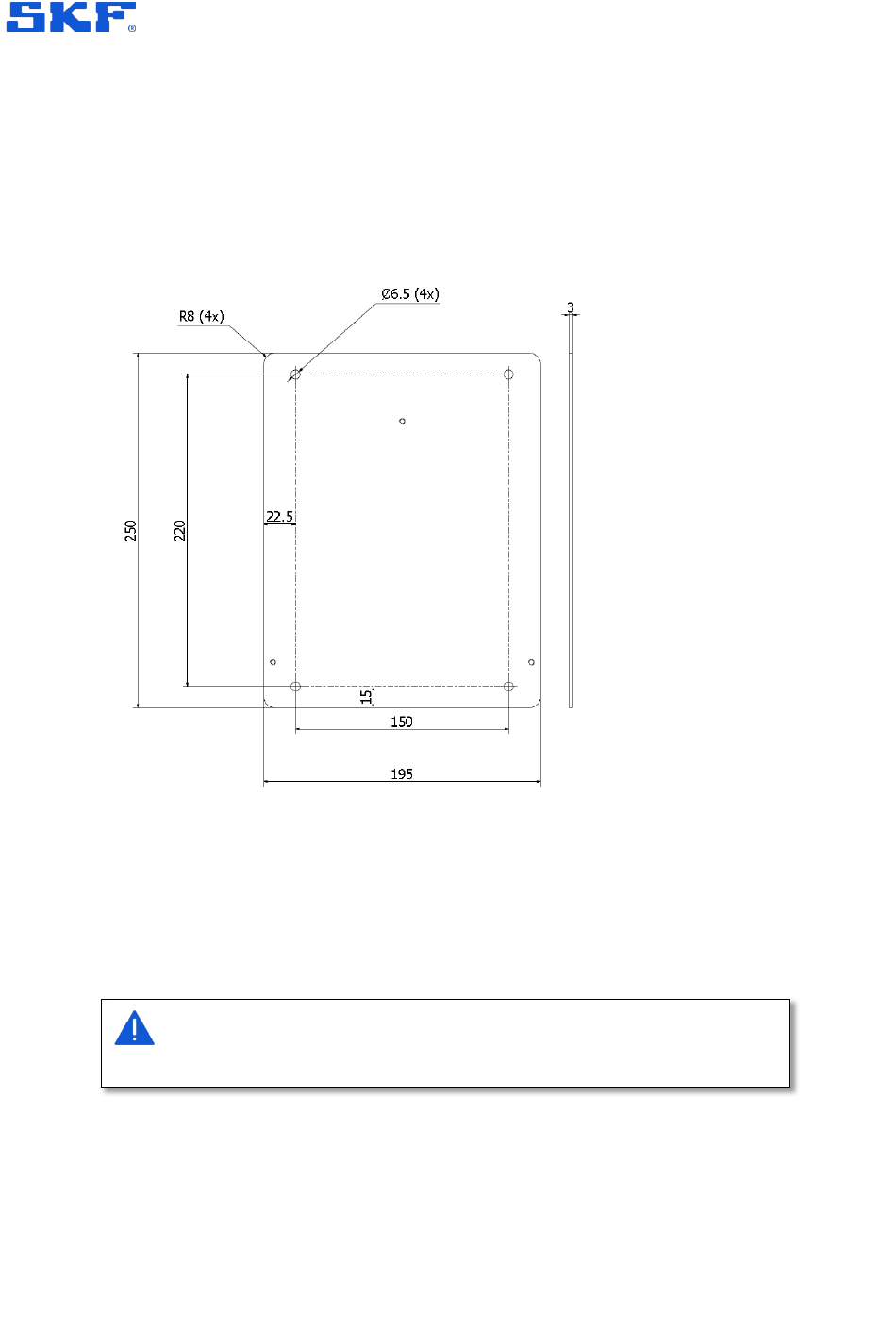

Figure 41 Gateway mounting plate dimensional drawing
To mount the gateway by its mounting plate it is only necessary to remove the lower,
connection area cover. The mounting plate protrudes above the gateway housing
and the upper two mounting positions are accessible there.
Important safety warning:
Always utilise all provided fixing points to secure it to the mounting surface,
using fasteners appropriate for that material.
