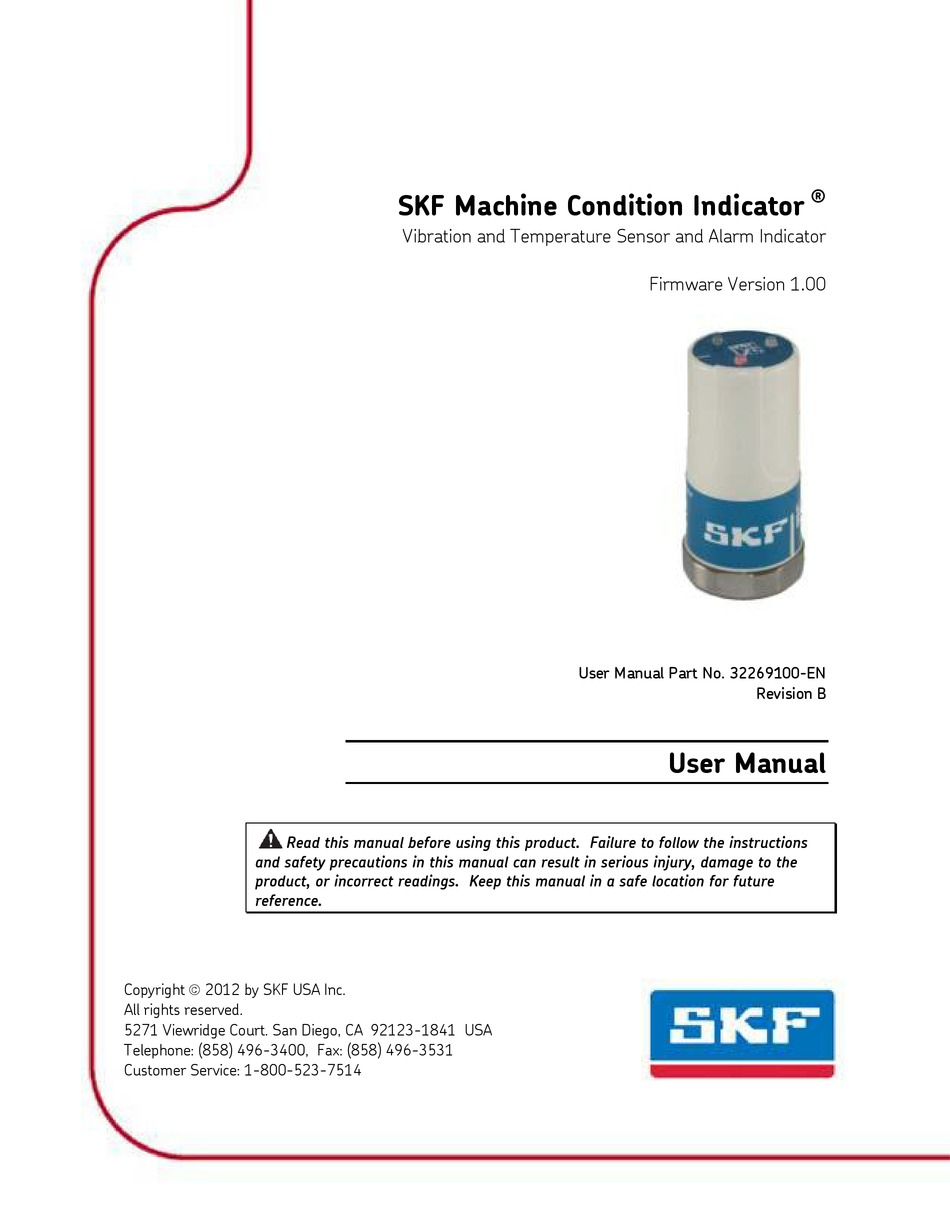

SKF Machine Condition Indicator
Vibration and Temperature Sensor and Alarm Indicator
Firmware Version 1.00
User Manual Part No. 32269100-EN
Revision B
User Manual
®
