Led Indicators - SKF Enlight Collect IMx-1 User Manual

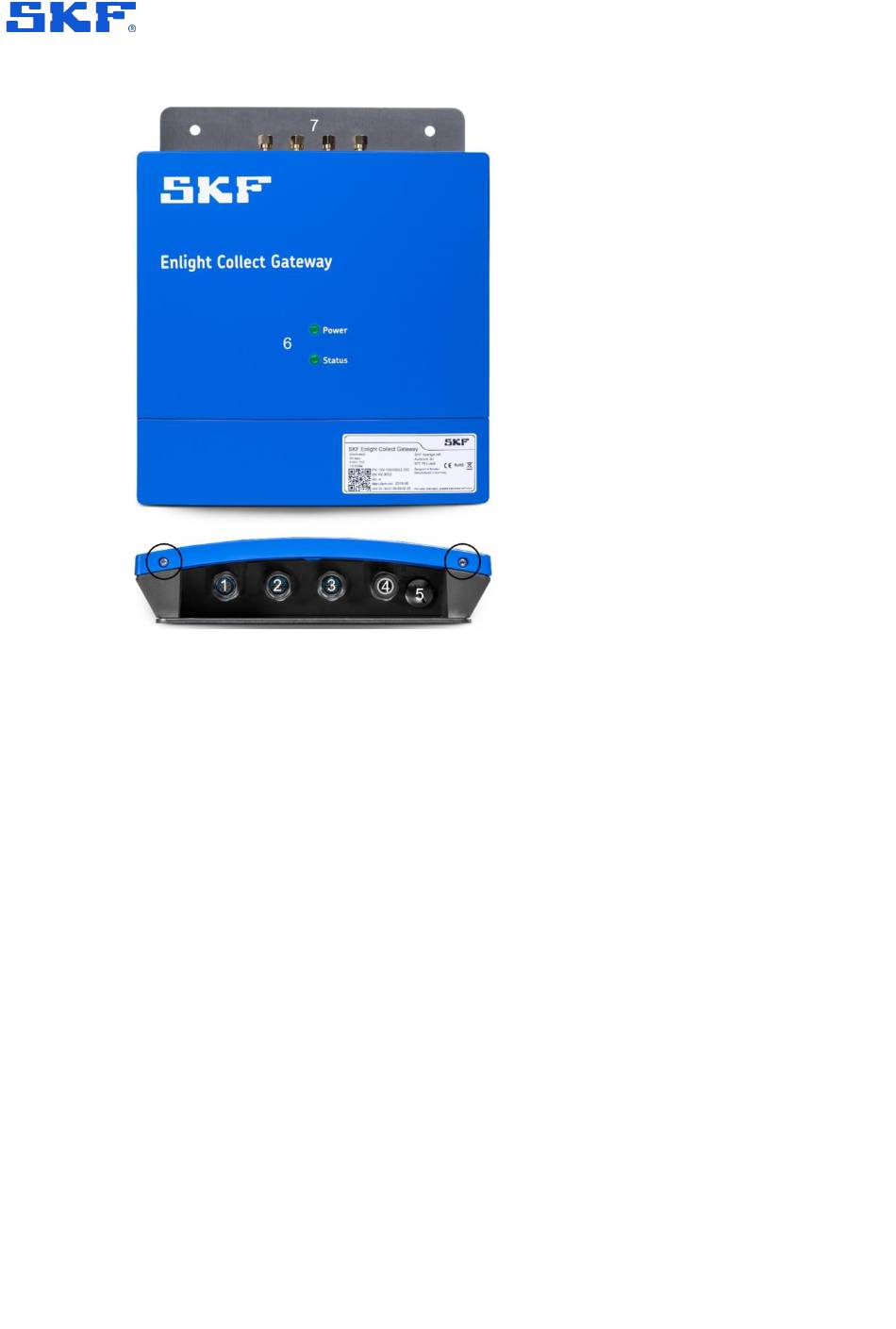

Figure 2 View on gateway and mounting plate with key features annotated
To access the connector area, unscrew the two Torx T10 screws on the lower edge
of the cover at the locations circled in the image above. Once this cover is removed,
four M12 connectors and one blanking plug are accessible:
1. Connector for dual speed inputs with transducer power (future use)
2. Connector for Ethernet link 2 (future use)
3. Connector for
4. Connector for
5. Access to SIM card holder (future use)
6. Gateway LED indicators
7. Connectors for external antenna: LTE x2, Mesh and Wi-Fi (future use)
Important note: Only the two connectors listed in bold above are usable, the
remainder relate to potential future functionality and are not currently supported.
Normally, no user access is needed to the gateway internals, all user connections
are made available externally at these interfaces.

1.4.2 LED indicators

The upper front panel of the gateway has positions for two, multi-colour, LED status
indicators – item 6 figure 2 above:
