Security - SKF Enlight Collect IMx-1 User Manual

PRODUCT DESCRIPTION
SKF Enlight Collect Manager – Android app

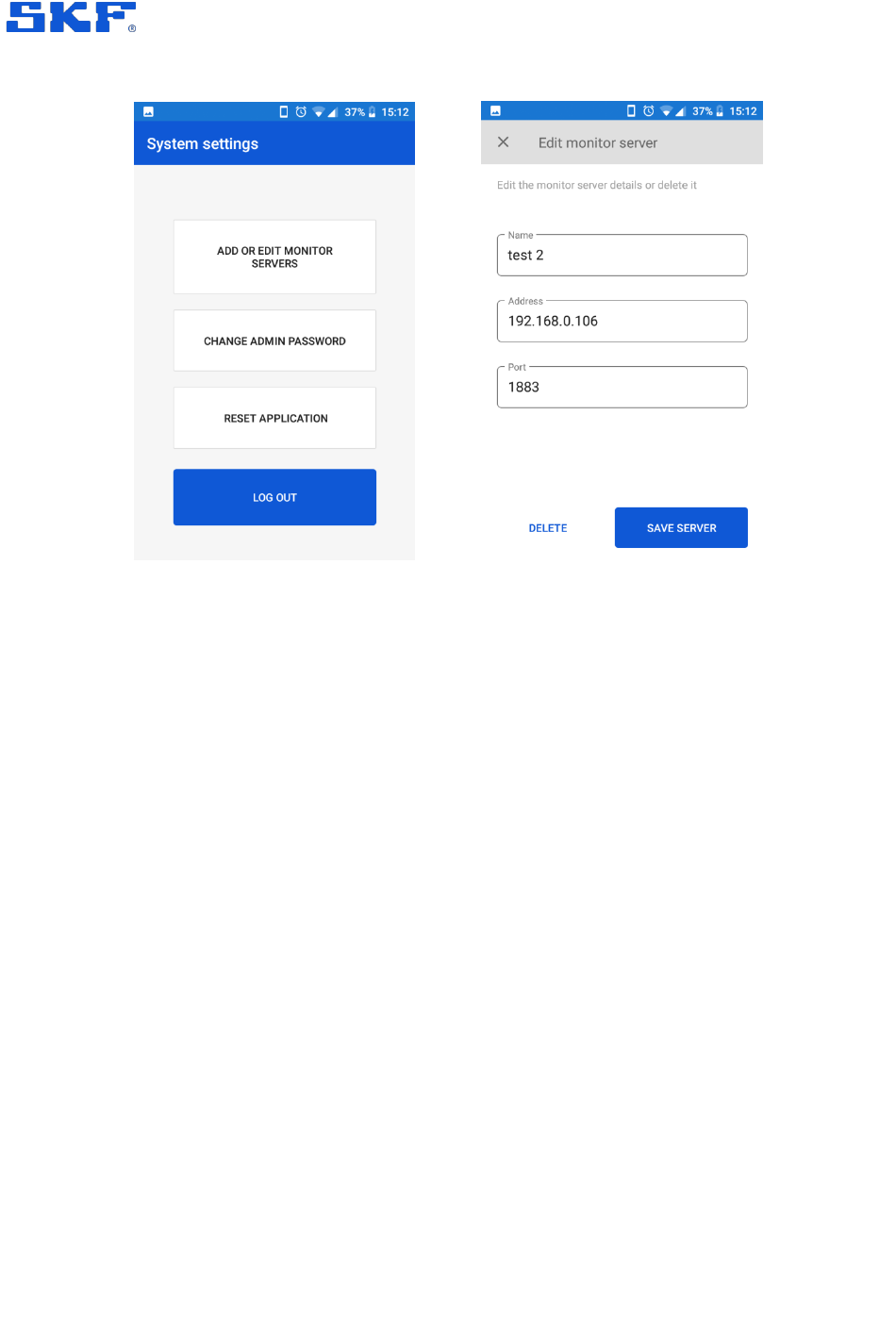

a) System settings menu b) Server properties/configuration
Figure 4 Access the Monitor server configuration
As can be seen above, for each Observer Monitor instance a friendly informative
Name, an Address and a Port number are entered. As these settings are critical for
connection to the Observer Monitor, ensure that they correctly reflect the required
instance otherwise a log-in failure can be expected. Note that where communication
to Monitor will be across public networks, the address entered here should be the
external facing or public IP address for the Monitor server.
Multiple connections can be configured, but only one can be active at any time.
Ensure the required connection is selected by the radio button and 'Save Selected'
has been actioned.
Referring back to Figure 3a, it can be seen that when the connection details for at
least one Monitor instance have been configured, the name of the active/selected
Monitor server instance is shown on the opening screen of the app, just above 'Enter
system settings'.

1.5.1 Security

Use of TLS security for app communications with the gateway is automatic.
To support secured/encrypted connections to and from the app, certificates will be
installed on the Android device. This is automatic but an Android user can generally
check which certificates are loaded by navigating to:
Settings > Security > Encryption & Credentials > Credential storage
16 (84) SKF Enlight Collect IMx-1 System
User Manual
Revision A
