Provisional Anchor Bolt Recommendations

1. Consider Hilti HIT-HY 200 Anchor System or
equivalent. Quantity of anchor bolts should match the
number of holes provided in the base plates.
2. Anchor diameter is typically 1/8-in less than
baseplate hole diameter.
3. Corrosive environment or outdoor installation may
require stainless steel anchors.
Anchor should project a
minimum of 1 3/4-in and
account for nut, washer,
base plate and shims/
grout.
Embedment depth
(suitable for the
physical properties of
the foundation).

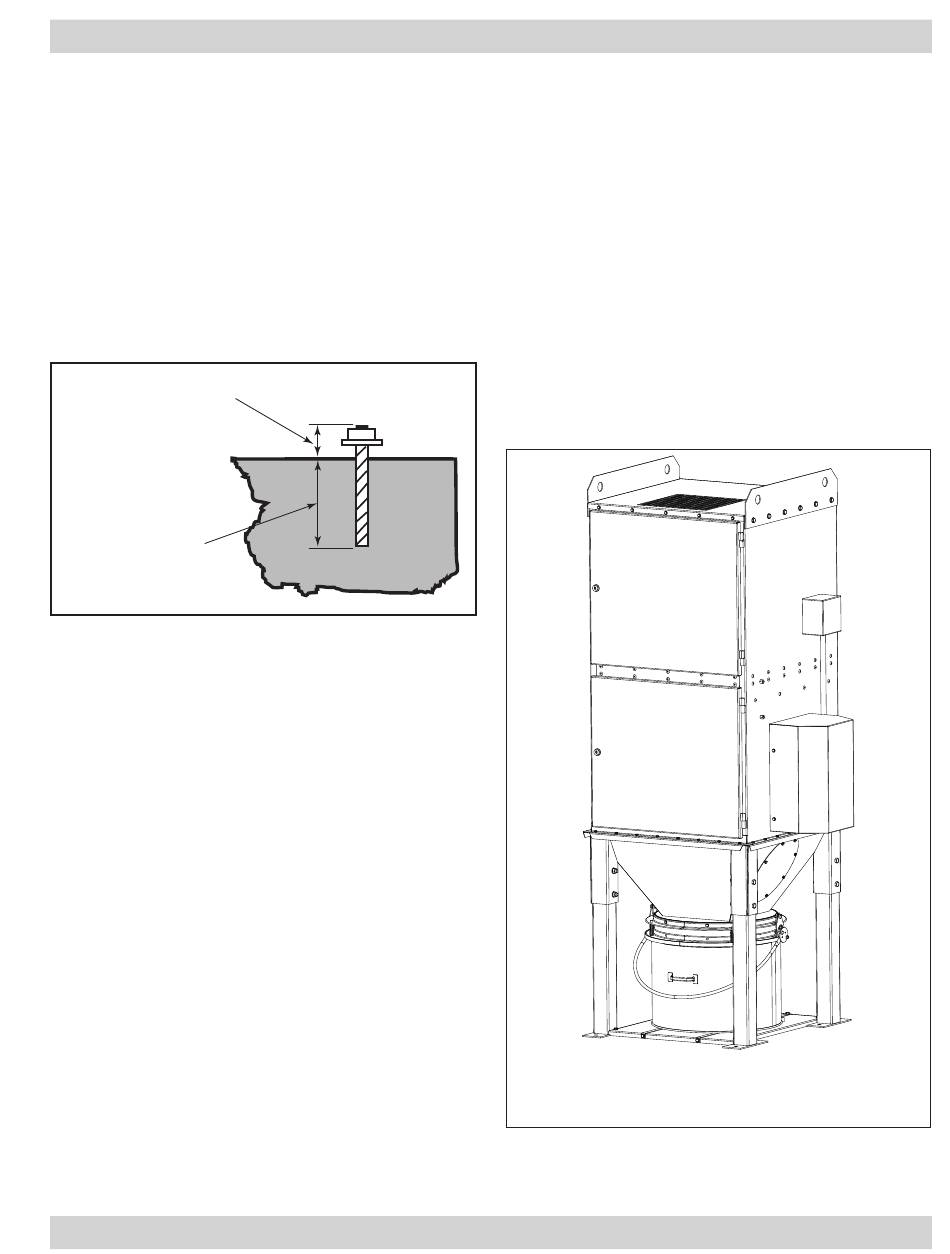

Typical Foundation Anchor
Unimaster Dust Collector, UMA 40 through 750

Collector Installation

UMA 40 to 70 (Hopper and 55-Gallon Drum
Base Styles)
1. Prepare the foundation or support framing in the
selected location. Locate and install anchors.
2. Lift collector into position over the anchor bolts and
lower slowly.
3. Level collector horizontally and vertically, using steel
shims under legs where required.
4. Secure collector to anchor bolts using customer-
supplied hardware.
UMA 70
Bin Base
Typical Installation, UMA 40 to 70 Bin
6
