PHANTOM 3

ADVANCED

User Manual

V1.0

2015.04

Table of Contents

Need help?

Do you have a question about the PHANTOM 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for dji PHANTOM 3

Page 1 PHANTOM 3 ADVANCED User Manual V1.0 2015.04...
Page 2: Download The Dji Pilot App
5. Phantom 3 Professional / Advanced Intelligent Flight Battery Safety Guidelines It is recommended to watch all the tutorial videos on DJI official website and read the . Phantom 3 Professional / Advanced Safety Guidelines and Disclaimer before your first flight. Prepare for your first flight by using the Phantom 3 Advanced Quick Start Guide.
Page 3: Table Of Contents
Contents Using this manual Legends Before Flight Watch the video tutorials Download the DJI Pilot app Product Profile Introduction Feature Highlights Assemble the Aircraft Aircraft Diagram Remote Controller Diagram Aircraft Flight Controller Flight Mode Flight Status Indicator Return to Home (RTH)
Page 4 Flight Flight Environment Requirements Flight Limits and Flight Restriction Area Preflight Checklist Calibrating the Compass Auto Take-off and Auto Landing Flight Test Starting/Stopping the Motors Troubleshooting (FAQ) Appendix Specifications Intelligent Orientation Control (IOC) FCC Compliance © 2015 DJI. All Rights Reserved.
Page 6: Introduction

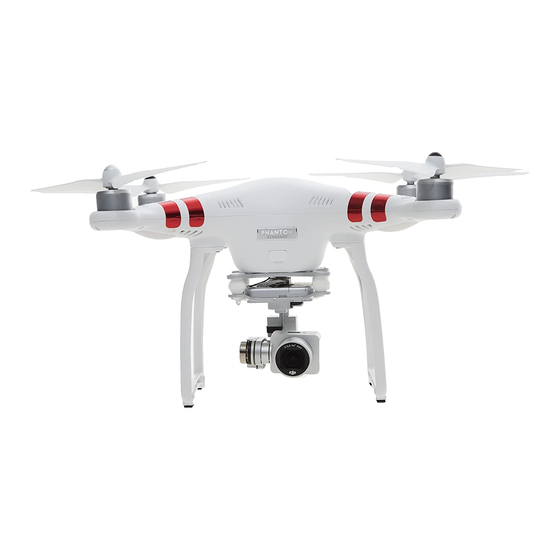

Product Profile Introduction The Phantom 3 Advanced represents the next generation of DJI quadcopters. It is capable of capturing HD / 4K video and transmitting an HD video signal out of the box. The built-in camera has an integrated gimbal to maximize stability while minimizing both weight and size. Even when no GPS signal is available, the Vision Positioning System allows the aircraft to hover accurately in place.
Page 7 Phantom 3 Advanced User Manual Preparing the Aircraft Removing Gimbal Clamp Remove the gimbal clamp by sliding it to the right (when facing the nose of the aircraft), as shown below: Attaching Propellers Mount the propellers with black nuts on to motors with black axes and spin counter-clockwise to secure.
Page 8: Aircraft Diagram
Phantom 3 Advanced User Manual Aircraft Diagram [1] GPS [2] Propeller [3] Motor [4] Front LED [5] Landing gear [6] Gimbal and Camera [7] Aircraft Micro-USB Port [10] [8] Aircraft Status Indicator [11] [9] Intelligent Flight Battery [10] Vision Positioning Sensors...
Page 9 [9] Camera Settings Dial Turn the dial to adjust camera settings. [14] Only functions when the remote controller is [10] [13] connected to a mobile device running the DJI Pilot app. [11] [12] [10] Playback Button Playback the captured images or videos.
Page 11: Flight Controller
Use the Flight Controller mode switch to change the flight mode of the aircraft, refer to the “Flight Mode Switch” on P26 for more information. Flight Status Indicator The Phantom 3 Advanced comes with the Front LED and Aircraft Status Indicator. The positions of these LEDs are shown in the figure below: Aircraft Status Indicator Front LED The Front LEDs show the orientation of the aircraft.
Page 12: Return To Home (Rth)
Use the RTH button on the remote controller (refer to “RTH button” on page 26 for more information) or tap the RTH button in the DJI Pilot app when GPS is available to initiate Smart RTH. The aircraft will then automatically return to the last recorded Home Point.
Page 13: Low Battery Rth
Low Battery RTH The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when these warnings are prompted.
Page 14: Failsafe Rth
The DJI Vision Positioning System uses ultrasound and image data to help the aircraft maintain its current position. With the help of Vision Positioning, your Phantom 3 Advanced can hover in place more precisely and fly indoors or in other environments where a GPS signal is not available. The main components of the Vision Positioning System are located on the bottom of your Phantom 3 Advanced;...
Page 15 Vision Positioning is activated automatically when the Phantom 3 Advanced is turned on. No further action is required. Vision Positioning is typically used in indoor environments, where GPS is unavailable. Using the sensors that are built into the Vision Positioning system, the Phantom 3 Advanced can hover precisely even without GPS.
Page 16: Flight Recorder
Aircraft Micro-USB Port. Attaching and Detaching the Propellers Use only DJI approved propellers with your Phantom 3 Advanced. The grey or black nut on the propeller indicates the rotation direction of the propeller and where it should be attached. To attach the propellers properly, match the nut with the axes on the motors of your Phantom 3 Advanced.
Page 17: Dji Intelligent Flight Battery
ONLY use original DJI propellers for a better and safer flight experience. DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4480 mAh, voltage of 15.2 V, and smart charge- discharge functionality. It should only be charged using an appropriate charger that has been approved by DJI.
Page 18 10°C to 5°C. 3. End the flight as soon as the DJI Pilot app displays the “Low Battery Level Warning” in low temperature environments.
Page 19 40%~50% 30%~40% 20%~30% below 20% When battery life reaches 0%, it can no longer be used. For more information about the battery, launch DJI Pilot app and check the information under the battery tab. © 2015 DJI. All Rights Reserved.
Page 20 5. Air-cool the Intelligent Flight Battery after each flight. Allow its temperature to drop to room temperature before storing it for an extended period. Always turn off the battery before inserting it or removing it from the Phantom 3 Advanced. Never insert or remove a battery when it is powered on.
Page 21 Launch the DJI Pilot app to check battery levels. Rapid : Fly the Phantom 3 Advanced outdoors until there is less than 8% of power left, or until the battery can no longer be turned on.
Page 22: Remote Control
Remote Controller This section describes the features of the remote controller and includes instructions for controlling the aircraft and the camera. © 2015 DJI. All Rights Reserved.
Page 23: Remote Controller Profile
Turning the Remote Controller On and Off The Phantom 3 Advanced remote controller is powered by a 2S rechargeable battery that has a capacity of 6000 mAh. The battery level is indicated via the Battery Level LEDs on the front panel. Follow the steps below to turn on your remote controller: 1.
Page 24 Phantom 3 Advanced User Manual Power Outlet Charger Power Button Controlling the Camera Shoot videos/pictures, view recorded images, and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback Button, and Video Recording Button on the remote controller. [1] Camera Settings Dial Turn the dial to quickly adjust camera settings such as ISO, shutter speed, and aperture without letting go of the remote controller.
Page 25 Moving the right stick control left and right changes the aircraft’s left and right pitch. Push left to fly left and right to fly right. The Phantom 3 Advanced will hover in place if the stick is centered. Push the stick further away from the center position for a larger pitch angle (maximum 30˚) and faster flight.
Page 26 IOC, refer to the IOC in Appendix. The Flight Mode Switch is locked in P mode by default. To unlock the switch, launch the DJI Pilot app, enter the “Camera” page, tap “MODE”, and then activate “Multiple Flight Mode” .
Page 27: Remote Controller Status Led
Phantom 3 Advanced User Manual Connecting Your Mobile Device Tilt the mobile device holder to the desired position. Press the button on the side of the mobile device holder to release the clamp, and then place your mobile device into the cradle. Adjust the clamp down to secure the mobile device.
Page 28: Linking The Remote Controller
The remote controller is linked to your aircraft before delivery. Linking is only required when using a new remote controller for the first time. Follow these steps to link a new remote controller: 1. Turn on the remote controller and connect to the mobile device. Launch DJI Pilot app. 2. Turn on the Intelligent Flight Battery.
Page 29: Remote Controller Compliance Version
Phantom 3 Advanced User Manual 4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and "beep" sound is emitted. RC Control Setting RC Calibration Stick Mode Searching for aircraft frequency, timeout in 54 seconds Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled.
Page 31: Camera Profile
Do not remove Micro-SD card from the Phantom 3 Advacned when it is powered on. Camera Data Port Turn on the Phantom 3 Advanced and connect a USB cable to the Camera Data Port to download photos and videos to your computer.
Page 32: Gimbal
Two Gimbal operation modes are available. Switch between the different operation modes on the Camera page of the DJI Pilot app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: The angle between gimbal’s orientation and aircraft’s nose remains...
Page 33 Phantom 3 Advanced User Manual Anti-drop Kit The anti-drop kit helps keep the gimbal and camera connected to the aircraft. Two pins have been mounted prior to shipping. If new or additional pins are required, see the diagram below. Press Part ①...
Page 35: Camera
DJI Pilot App The DJI Pilot app is a mobile application designed specifically for the Phantom 3 Advanced. Use this app to control the gimbal, camera, and other aircraft functions. The app also features Map, Academy, and User Center, which are used for configuring your aircraft and sharing your photos and videos with others.
Page 36 Phantom 3 Advanced User Manual [1] Flight Mode : The text next to this icon indicates the current flight mode. Tap to configure the MC (Main Controller) Settings. These settings allow you to modify flight limits, perform compass calibration, and set the gain values.
Page 37: [13] Map
Phantom 3 Advanced User Manual Record : Tap once to start recording video, then tap again to stop recording. You can also press the Video Recording Button on the remote controller, which has the same function. Playback : Tap to enter playback page. You can preview photos and videos as soon as they are captured.
Page 38 “Director” from the app’s home screen. You can then select a template and a specified number of clips, which are automatically combined to create a short film that can be shared immediately. Store Tap “Store” to visit the official DJI Online Store to see the latest information about DJI products and easily buy new products. Discovery Sync pictures and videos to your mobile device, view flight logs, and check your DJI account status in "Discovery".
Page 40: Flight Environment Requirements
Flight Once pre-flight preparation is complete, it is recommended that you use the flight simulator in the DJI Pilot app to hone your flight skills and practice flying safely. Ensure that all flights are carried out in an open area.
Page 41 No-Fly Zones All No-Fly Zones are listed on the DJI official website at http://flysafe.dji.com/no-fly. No-Fly Zones are divided into Airports and Restricted Areas. Airports include major airports and flying field where manned aircraft operate at low altitudes. Restricted Areas include border lines between countries or sensitive institute.
Page 42 The value of R varies on the definition of the restricted areas. (3) A “warning zone” has been set around the Restricted Area. When the aircraft approaches within 0.6 miles (1 km) of this zone, a warning message will prompt from the DJI Pilot app. 100m 100m ©...
Page 43 Phantom 3 Advanced User Manual GPS Signal Strong Blinking Green Aircraft Zone Restriction DJI Pilot App Prompt Status Indicator Warning: You are in a No-fly Motors will not start. zone. Take off prohibited. I f t h e a i r c r a f t e n t e r s t h e...
Page 44: Preflight Checklist
4. Gimbal is functioning normally. 5. Motors can start and are functioning normally. 6. The DJI Pilot app is successfully connected to the aircraft. Calibrating the Compass IMPORTANT: Always to calibrate the compass in every new flight location. The compass is very sensitive to electromagnetic interference, which can produce abnormal compass data and lead to poor flight performance or flight failure.
Page 45: Auto Takeoff And Auto Landing
2. When flying in a new location, or a location that is different from your last flight. 3. When the mechanical structure of the Phantom 3 Advanced has changed. 4. When severe drifting occurs in flight, i.e. Phantom 3 Advanced does not fly in straight line. Auto Takeoff and Auto Landing Auto Take-off Use auto takeoff only if the Aircraft Status Indicators are blinking green.
Page 46: Flight Test
Stopping Motors There are two methods to stop the motors. Method 1: When Phantom 3 Advanced has landed, push the throttle down , then conduct CSC . Mo- tors will stop immediately. Release both sticks once motors stop. Method 2: When the aircraft has landed, push the throttle down and hold. The motors will stop after 3 seconds.
Page 47: Flight Test
Video Suggestions and Tips 1. Go through the checklist before each flight. 2. Select desired gimbal operation mode in the DJI Pilot app. 3. Shoot the video when flying in P mode only. 4. Always fly in good weather, such as sunny or windless days.
Page 49: Troubleshooting (Faq)
What app should I use with my Phantom 3? The Phantom 3 is compatible with the DJI Pilot app for iOS and Android, which is already used with the DJI Inspire 1. The app will detect which aircraft is connected and automatically adjust accordingly.
Page 50 These controls can be changed to Mode 1 or set to a customized configuration in the DJI Pilot app. This is only recommended for advanced users.
Page 51 You may need to adjust the settings of your mobile device. Open the Settings menu, select the Privacy tab, select the Photos tab, and then toggle the switch next to the DJI Pilot app icon. If the Pilot app has not been granted access to your albums, the photos and videos cannot be synchronized.
Page 53: Specifications
Max. capacity: 64 GB. Class 10 or UHS-1 rating required FHD:1920x1080p 24/25/30/48/50/60 Video Recording Modes HD:1280x720p 24/25/30/48/50/60 Max. Bitrate Of Video 60 Mbps Storage FAT32/exFAT Supported File Formats Photo: JPEG, DNG Video: MP4/MOV (MPEG-4 AVC/H.264) Operating Temperature 0°C to 40°C Range © 2015 DJI. All Rights Reserved.
Page 54 Phantom 3 Advanced User Manual Remote Controller Operating Frequency 2.400 GHz-2.483 GHz Transmitting Distance 2000 m (Outdoor And Unobstructed) Video Output Port Operating Temperature Range 0°C- 40°C Battery 6000 mAh LiPo 2S Mobile Device Holder tablet and phone Transmitter Power(EIRP) FCC: 20 dbm;...
Page 55: Intelligent Orientation Control (Ioc)
IOC allows users to lock the orientation of aircraft in different modes. There are three working modes for IOC and you may select the desired IOC modes from the DJI Pilot app. IOC only works under F mode, and user must toggle the flight mode switch to Position 1 to activate IOC. Refer to the table below:...
Page 56: Fcc Compliance
Phantom 3 Advanced User Manual FCC Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 57 Phantom 3 Advanced User Manual susceptible d'en compromettre le fonctionnement. IC Radiation Exposure Statement: This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 58 The content is subject to change. Download the latest version from http://www.dji.com/phantom3 If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2015 DJI. All Rights Reserved.
