There are two options for Dynamic Home Point.
1. Set the aircraft current coordinate as the new Home Point.
2. Set the mobile device's coordinate as the new Home Point.
Setting Up Dynamic Home Point
Follow the steps below to setup Dynamic Home Point:
1. Connect to the mobile device and launch the DJI Pilot app and go to the "Camera" page.
2. Tap" "and select" ", to set the mobile device's coordinates as the new Home Point.
3. Tap" "and select"
4. The aircraft status indicator blinks green to show Home Point is set successfully.

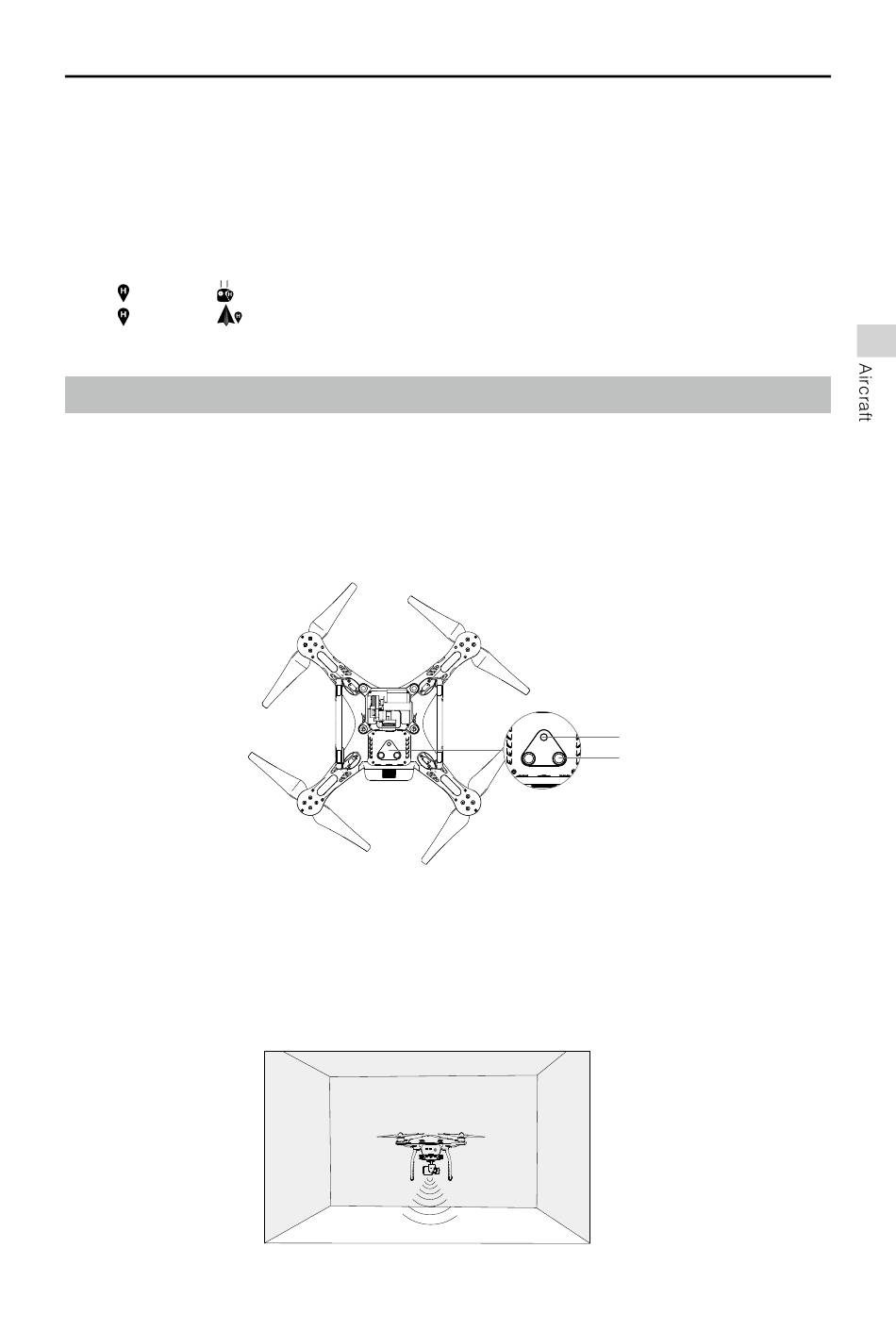

Vision Positioning System

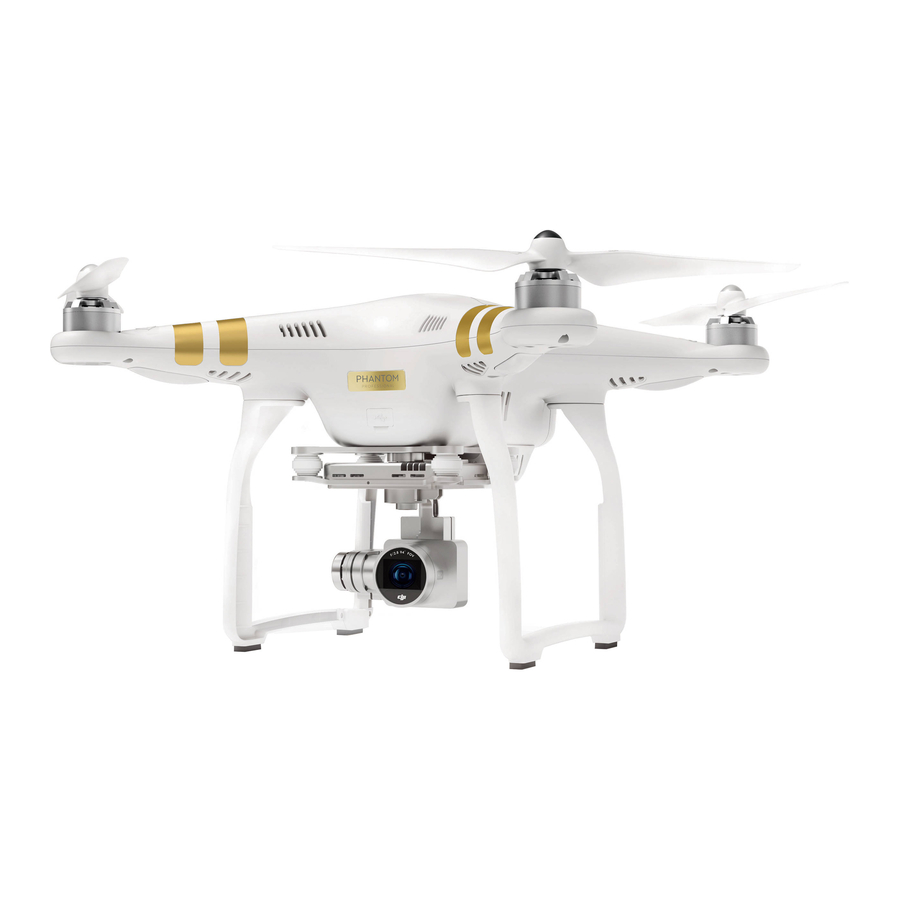

DJI Vision Positioning is a positioning system that uses ultrasonic and image data to help the aircraft
identify its current position. With the help of Vision Positioning, your Phantom 3 Professional can hover in
place more precisely and fly indoors or in other environments where there is no GPS signal available. The
main components of DJI Vision Positioning are located on the bottom of your Phantom 3 Professional,
including [1] one monocular camera and [2]two sonar sensors.
Using Vision Positioning
Vision Positioning is activated automatically when the Phantom 3 Professional is powered on. No manual
action is required. Vision Positioning is typically used in the indoor environment where no GPS is available.
By using the sensors on the Vision Positioning system, Phantom 3 Professional can perform precision
hovering even when no GPS is available.
", to set the aircraft's coordinates as the new Home Point.
Phantom 3 Professional User Manual
[1]
[2]
©
2015 DJI. All Rights Reserved.
15
