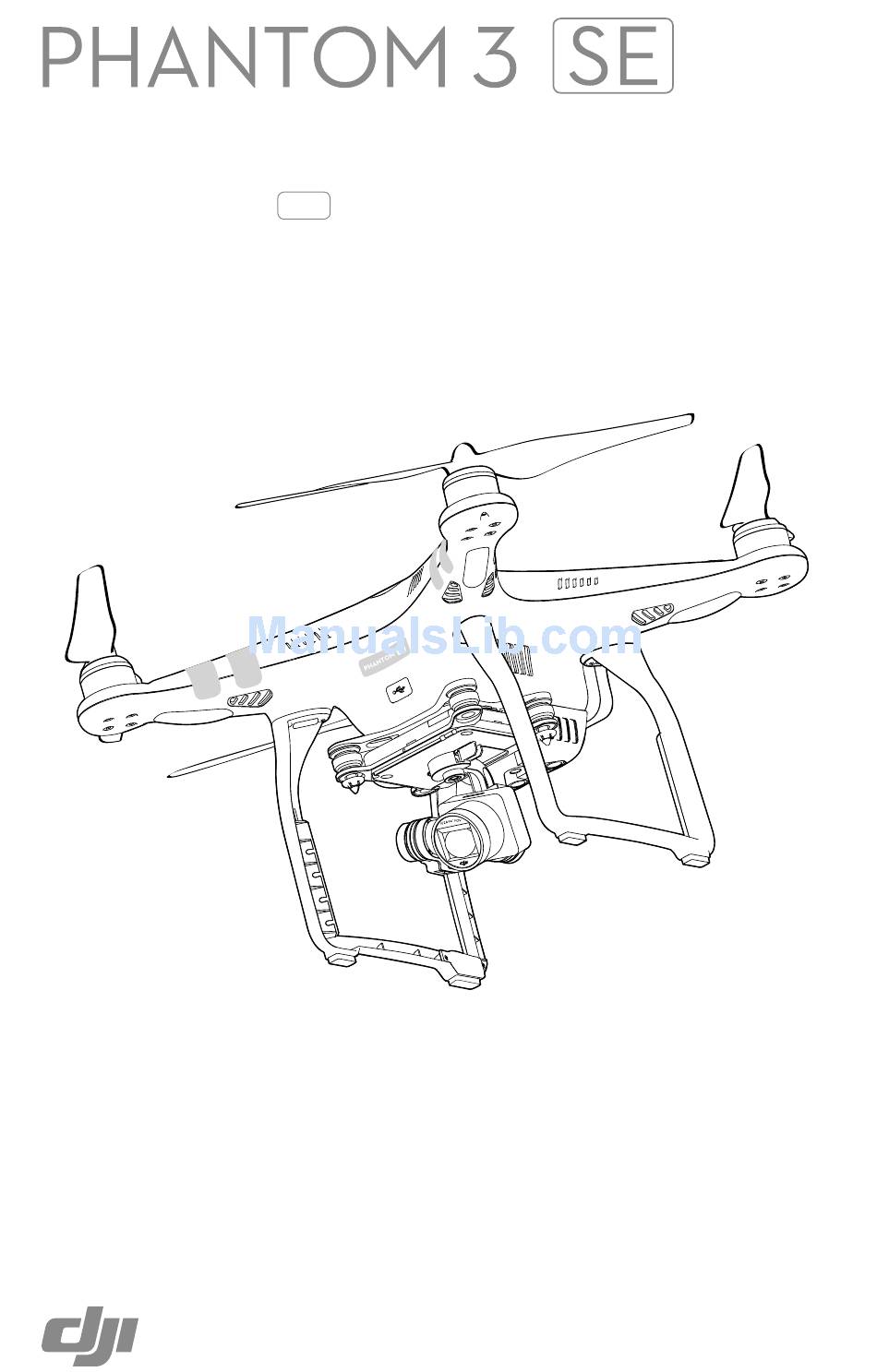

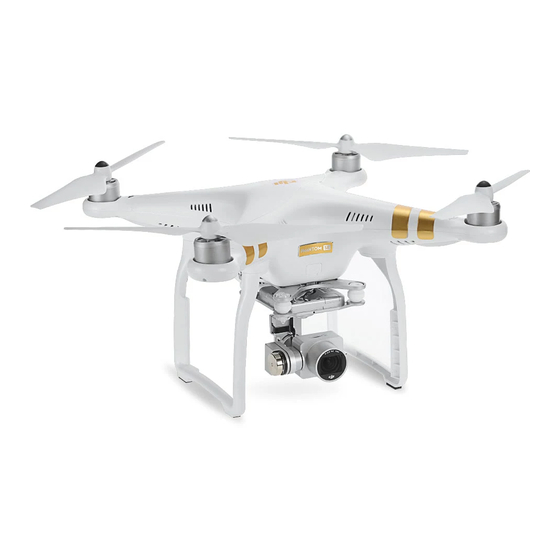

  • Page 1 User Manual V1.0 2017.07...

  • Page 2: Using This Manual

    5. Phantom 3 Intelligent Flight Battery Safety Guidelines We recommend that you read the Disclaimer before you fly. Prepare for your first flight by reviewing the Phantom 3 SE Quick Start Guide and refer to the User Manual for more detailed information. Download the DJI GO App Be sure to use the DJI GO app or other apps compatible with DJI aircraft during flight.

  • Page 3: Table Of Contents

    Contents Using this manual Legends Read Before the First Flight Download the DJI GO App Product Profile Introduction Feature Highlights Preparing the Aircraft Aircraft Diagram Remote Controller Diagram Aircraft Flight Controller Flight Mode Flight Status Indicator Return-to-Home (RTH) Smart RTH...
  • Page 4 SkyPixel Flight Flight Environment Requirements Flight Limits and No-Fly Zones Preflight Checklist Calibrating the Compass Auto Takeoff and Auto Landing Flight Test Starting/Stopping the Motors Appendix Specifications Firmwares Update Intelligent Flight Mode After-Sales Information © 2017 DJI All Rights Reserved.

  • Page 5: Product Profile

    Product Profile This section introduces the Phantom 3 SE and lists the components of the aircraft and remote controller. © 2017 DJI All Rights Reserved.

  • Page 6: Product Profile

    Positioning System allows the aircraft to hover accurately in place. Feature Highlights Camera and Gimbal: With the Phantom 3 SE, you’re shooting 4K video at up to 30 frames per second and capturing 12 megapixel photos that look crisper and cleaner than ever. An enhanced sensor gives you greater clarity, lower noise, and better pictures than any previous flying camera.
  • Page 7 Phantom 3 SE User Manual Attaching the Propellers Mount the propellers with black nuts on to motors with black dots and spin counter-clockwise to secure. Mount the propellers with sliver nuts on to motors without dots and spin clockwise to secure. Be sure all propellers are securely in place.

  • Page 8: Aircraft Diagram

    Phantom 3 SE User Manual Aircraft Diagram [1] GPS [2] Propeller [3] Motor [4] Front LED Indicator [5] Landing Gear [6] Gimbal and Camera [7] Camera Micro SD Card Slot [10] [11] [8] Camera Status Indicator [12] [9] Aircraft Micro USB Port...
  • Page 9 Phantom 3 SE User Manual [11] Built-in Antennas [12] Handle Bar [11] [12] © 2017 DJI All Rights Reserved.
  • Page 10 Aircraft This section introduces the features of the Flight Controller, Vision Positioning System, and the Intelligent Flight Battery © 2017 DJI All Rights Reserved.

  • Page 11: Aircraft

    To switch flight modes, go to Camera view in the DJI GO app, tap and enable “Multiple Flight Modes”. Flight Status Indicator The Phantom 3 SE has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are shown in the figure below: Aircraft Status Indicator Front LED The Front LEDs show the orientation of the aircraft.

  • Page 12: Return-To-Home (Rth)

    Home Point if a GPS signal is available. During the RTH procedure, you may use the remote controller to guide the aircraft around obstacles. Tap in the DJI GO app or toggle the S1 switch once to terminate Smart RTH and regain full control of the aircraft.

  • Page 13: Low Battery Rth

    Low Battery RTH The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when prompted.

  • Page 14: Failsafe Rth

    Failsafe. The aircraft cannot avoid obstruction during the Failsafe RTH, therefore, it is important to set an suitable Failsafe altitude before each flight. Launch the DJI GO app and enter “Camera” and to set the Failsafe altitude.

  • Page 15: Vision Positioning System

    The DJI Vision Positioning System uses ultrasound and image data to help the aircraft maintain its current position. With the help of Vision Positioning, your Phantom 3 SE can hover in place more precisely and fly indoors or in other environments where a GPS signal is not available. The main components of the Vision Positioning System are located on the bottom of your Phantom 3 SE;...

  • Page 16: Flight Recorder

    PC through the Micro USB port and launch the DJI GO app. Attaching and Detaching the Propellers Use only DJI approved propellers with your Phantom 3 SE. The silver and black nuts on the propeller indicate where they should be attached and in which direction whey should spin. To attach the propellers properly, match the nut color with the motor dot color.
  • Page 17 Check that the propellers and motors are installed correctly and firmly before every flight. ONLY use original DJI propellers for a better and safer flight experience. ONLY using the propller with the same model. Tighten the propellers with both hands before each flight.

  • Page 18: Dji Intelligent Flight Battery

    Phantom 3 SE User Manual DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4480 mAh, a voltage of 15.2 V, and a smart charge/ discharge functionality. It should only be charged using an appropriate charger that has been approved by DJI.
  • Page 19 Battery voltage should reach the appropriate level when operating environment with temperatures between -10°C and 5°C. 3. End the flight as soon as the DJI GO app displays the “Low Battery Level Warning” in low temperature environments. 4. Keep the battery indoors to warm it before flying in low temperature environments.
  • Page 20 Only use the DJI approved charger. Always turn off the battery before inserting it or removing it from the Phantom 3 SE. Never insert or remove a battery when it is turned on.
  • Page 21 Leave it on until there is less than 8% of power left, or until the battery can no longer be turned on. Launch the DJI GO app to check battery levels. Rapid : Fly the Phantom 3 SE outdoors until there is less than 8% of power left, or until the battery can no longer be turned on.
  • Page 22 Remote Controller This section describes the features of the remote controller and includes instructions for controlling the aircraft and the camera. © 2017 DJI All Rights Reserved.

  • Page 23: Remote Controller

    Turning the Remote Controller On and Off The Phantom 3 SE remote controller is powered by a rechargeable battery that has a capacity of 2600 mAh. The battery level is indicated via the Battery Level LEDs on the front panel.
  • Page 24 Phantom 3 SE User Manual Controlling Aircraft This section explains how to control the orientation of the aircraft through the remote controller. The Remote Control is set to Mode 2 by default. Mode 1 Left Stick Right Stick Forward Down...
  • Page 25 Push the stick left to rotate the aircraft counter- clockwise, push the stick right to rotate the aircraft clockwise. If the stick is centered, the Phantom 3 SE will maintain its current orientation. The more the stick is pushed away from the center position, the faster the Phantom 3 SE will rotate.
  • Page 26 3. On your mobile device, select ‘PHANTOM3SE-XXXXXX’ from the Wi-Fi network list, and enter the default password ‘12341234’. 4. Launch the DJI GO app and enter Camera View. A video signal from the aircraft’s camera indicates that the aircraft has established a connection to the Wi-Fi video downlink successfully.
  • Page 27 Phantom 3 SE User Manual Optimal Transmission Range Do not obstruct the built-in antenna. Battery Level Indicator The figure below illustrates the four battery levels that are displayed by the Battery Level Indicator on the remote controller's front panel. Battery Level Indicator 25％...

  • Page 28: Linking The Remote Controller

    Linking the Remote Controller The Phantom 3 SE is linked to the remote controller by default, and re-linking is only necessary if the remote controller is replaced with a new one. Refer to the figure below to locate the Link Button.
  • Page 29 Camera and Gimbal This section provides the technical specifications of the camera and explains the gimbal’s operation modes. © 2017 DJI All Rights Reserved.

  • Page 30: Camera And Gimbal

    The on-board camera uses the 1/2.3 inch CMOS sensor to capture video (up to 4K at up to 30fps with the Phantom 3 SE) and 12 megapixel stills. You may choose to record the video in either MOV or MP4 format.

  • Page 31: Gimbal

    Phantom 3 SE User Manual Camera Status Indicator Camera LED Indicator lights up after the Intelligent Flight Battery is powered on. It provides information on the working status of the camera. Camera Status Indicator Camera status Fast green flashing System is warming up.
  • Page 32 Two gimbal operation modes are available. Switch between the different operation modes on the camera settings page of the DJI GO app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: The angle between gimbal’s orientation and aircraft’s nose remains...
  • Page 33 DJI GO App This section introduces the four main functions of the DJI GO app. © 2017 DJI All Rights Reserved.

  • Page 34: Dji Go App

    Editor, SkyPixel and Me sections, which are used for configuring your aircraft, editing and sharing your photos and videos with others. Equipment Enter Camera View by tapping Camera on the DJI GO welcome screen. Camera View READY TO GO (GPS)
  • Page 35 Phantom 3 SE User Manual [5] GPS Signal Strength : This icon shows the current strength of GPS signals. [6] Remote Controller Signal : This icon shows the strength of remote controller’s signal. [7] Video Downlink Signal : Shows the signal strength of the Wi-Fi Video Downlink between the aircraft and the remote con- troller.

  • Page 36: Editor

    SkyPixel View and share the photos and videos in the SkyPixel page. If you already have a DJI account, you will be able to participate in forum discussions, and share your creation with the community. © 2017 DJI All Rights Reserved.
  • Page 37 Flight This section describes safe flight practices and flight restrictions. © 2017 DJI All Rights Reserved.

  • Page 38: Flight

    Maximum flight altitude & Radius Limits Maximum flight altitude and radius limits may be changed in the DJI GO app. Be aware that the maximum flight altitude cannot exceed 1640 feet (500 meters). In accordance with these settings, your Phantom 3...
  • Page 39 No-Fly Zones All No-Fly Zones are listed on the DJI official website at http://www.dji.com/flysafe/no-fly. No-Fly Zones are divided into Airports and Restricted Areas. Airports include major airports and flying fields where manned aircraft operate at low altitudes. Restricted Areas include border lines between countries or sensitive institute.

  • Page 40: Preflight Checklist

    6. The DJI GO app is successfully connected to the aircraft. Calibrating the Compass Only calibrate the compass when the DJI GO app or the status indicator prompt you to do so. Observe the following rules when calibrating your compass: DO NOT calibrate your compass where there is a chance of strong magnetic interference, such as magnetite, parking structures, and steel reinforcements underground.

  • Page 41: Auto Takeoff And Auto Landing

    Use auto takeoff only if the Aircraft Status Indicators are blinking green. Follow the steps below to use the auto takeoff feature: 1. Launch the DJI GO app, and enter “Camera” page. 2. Ensure the aircraft is in P- mode.

  • Page 42: Flight Test

    Method 1: When the aircraft has landed, push and hold the throttle down. The motors will stop after three seconds. Method 2: When Phantom 3 SE has landed, push the throttle down , then conduct the same CSC that was used to start the motors, as described above .
  • Page 43 Video Suggestions and Tips 1. Go through the full pre-flight checklist before each flight. 2. Select the desired gimbal operation mode in the DJI GO app. 3. Only shoot video when flying in P-mode. 4. Always fly in good weather and avoid flying in rain or heavy wind.
  • Page 44 Appendix © 2017 DJI All Rights Reserved.

  • Page 45: Appendix

    FAT32 (≤ 32 GB) ; exFAT (> 32 GB) Photo Formats JPEG, DNG Video Formats MP4/MOV (MPEG-4 AVC/H.264) Supported SD Card Types Micro SD, Max. capacity: 64 GB. Class 10 or UHS-1 rating required © 2017 DJI All Rights Reserved.
  • Page 46 Phantom 3 SE User Manual Remote Controller Operating Frequency 2.400-2.483 GHz; 5.725-5.85 GHz 2.4 GHz: ≤27 dBm (FCC); ≤20 dBm (SRRC); ≤20 dBm (CE) Transmitter Power (EIRP) 5.8 GHz: ≤30 dBm (FCC); ≤26 dBm (SRRC); ≤14 dBm (CE) 2.4 GHz: 0.6 mi (1000 m, FCC); 0.3 mi (500 m, SRRC);...

  • Page 47: Firmwares Update

    Phantom 3 SE User Manual Firmwares Update Connect to the Internet, launch the DJI GO app. The DJI GO app will start checking for available firmware updates automatically. Follow the on-screen instruction to update the latest firmware for the aircraft, remote controller and intelligent flight battery.
