The Models MR525 and MR526 are clamp-on current probes that measure DC
currents up to 1400A, AC currents up to 1000A
AC+DC currents without opening the circuit in which the currents flow. They
indicate the shape and amplitude of the current measured in the form of a voltage.
These instruments can be used with a multimeter, wattmeter, recorder, and other
instruments. They can be powered by a battery or with 5V
micro‑USB cable.
The MR525 and MR526 include the following features:
range overage indicator

power supply indicator

zero adjustment

Auto Standby feature

one or two ranges, depending on the model (sensitivity 1 and 10mV/A)

micro‑USB connector to connect an external power supply

Current Probe Models MR525/526

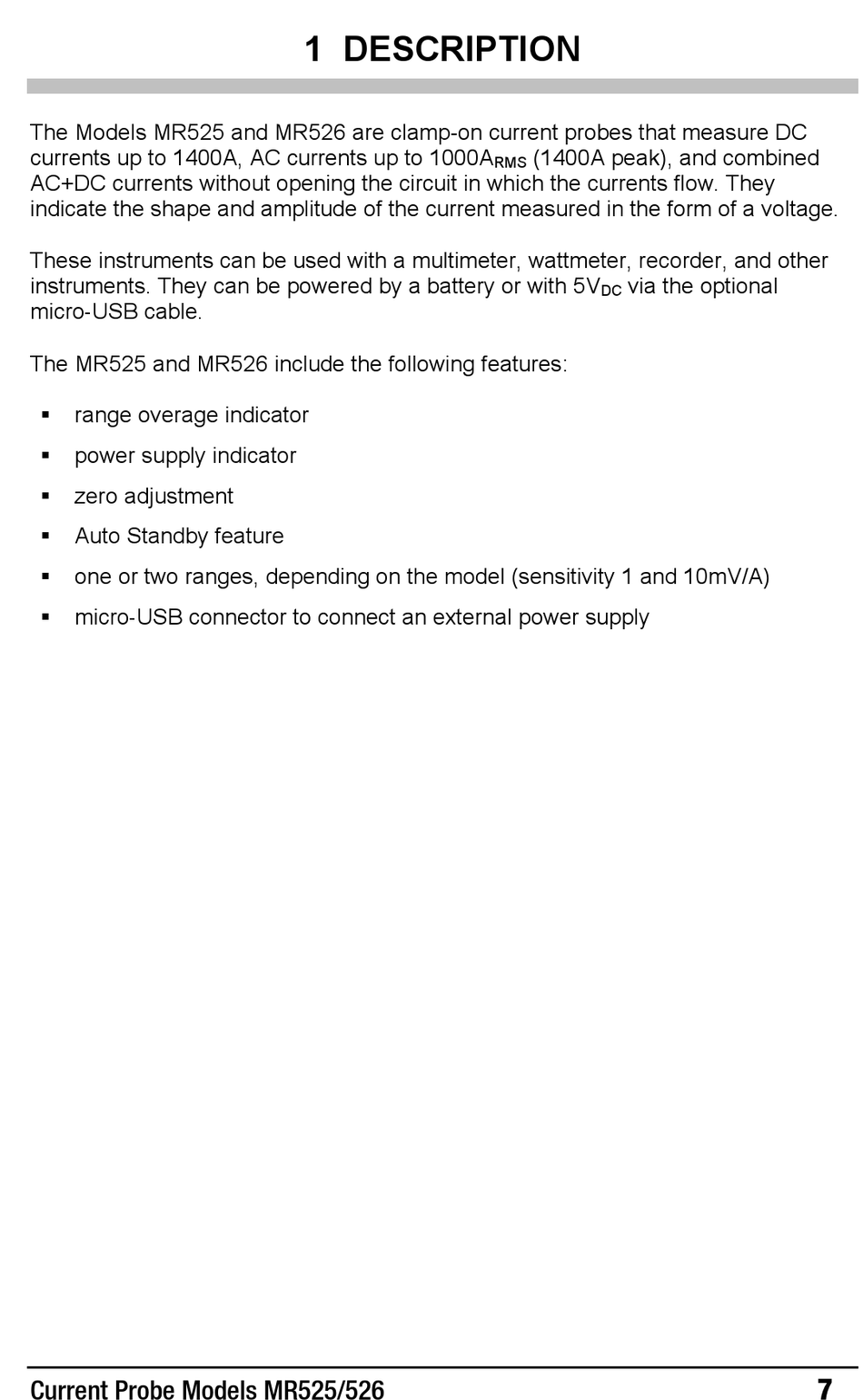

1 DESCRIPTION

(1400A peak), and combined
RMS
via the optional
DC
7
