Installation Of The Planmeca Ethernet Interface Box To The Dixi3 Digital Intra X-Ray System; Overview Of The Installation - Planmeca Ethernet Interface Installation Manual

INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE DIXI3 DIGITAL INTRA X-RAY SYS-
2 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX
TO THE DIXI3 DIGITAL INTRA X-RAY SYSTEM

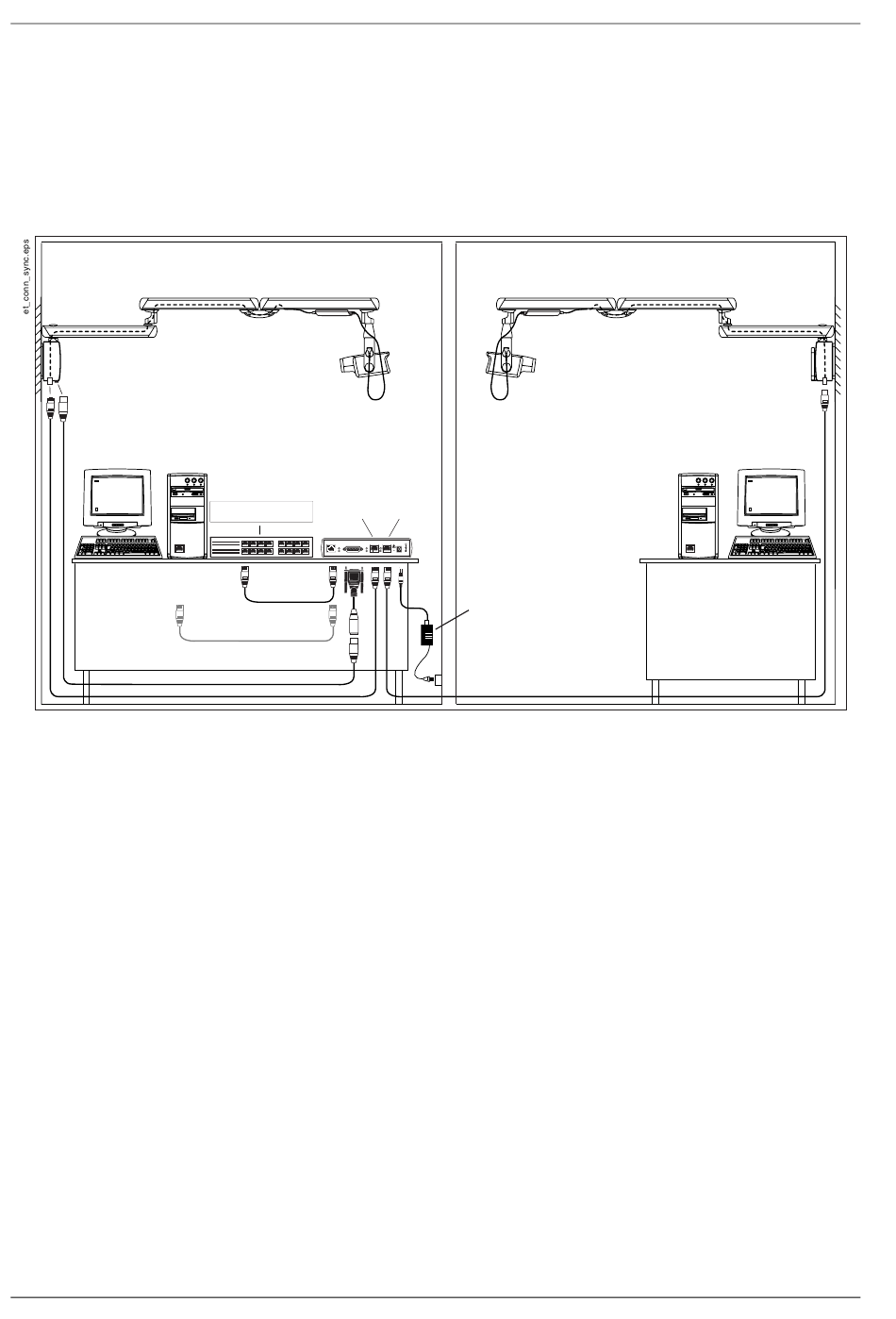

2.1 Overview of the installation

PC / Thin client
to Hub / Switch
10/100 Base-T
to PC
10/100 Base-T
NOTE You can install either two Planmeca Dixi3 digital intra X-ray systems, two Plan-
meca Proline XC systems, or Planmeca Dixi3 digital intra X-ray system and
Planmeca Proline XC X-ray system to the Ethernet Interface.
2 Planmeca Ethernet interface
Planmeca Ethernet
Interface
server
PORT1
Hub / Switch
10/100 Base-T PLANET
LINK
TX/RX
CAT 5 UTP
RJ45
or
Cross connected CAT 5 UTP cable
RJ45
Intra sync cable
CAT 5 UTP RJ45 15m
PORT2
PORT 1 PORT 2 13,2VDC IN
max. 1A
OK PWR
SET
STATUS
PLANMECA ETHERNET INTERFACE
Power Supply:
Mascot type 9920
CAT 5 UTP RJ45 15m
Installation manual
