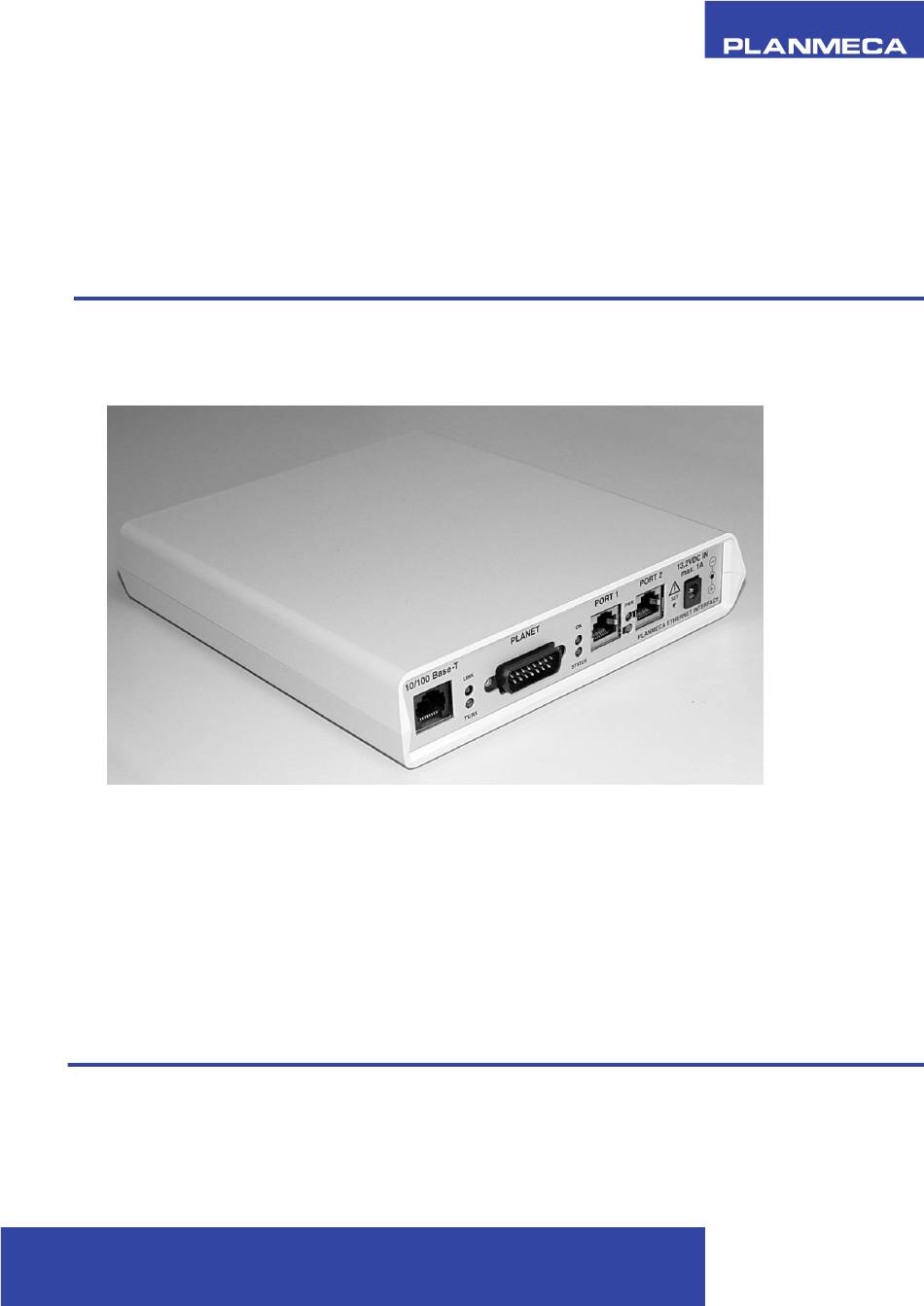

Planmeca Ethernet
Interface
INSTALLATION MANUAL
Publication part number 10007439
Version 6
Published 2005-06
En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ethernet Interface and is the answer not in the manual?

Questions and answers

Summary of Contents for Planmeca Ethernet Interface

  • Page 1 Planmeca Ethernet Interface INSTALLATION MANUAL Publication part number 10007439 Version 6 Published 2005-06...
  • Page 2 PLANMECA OY Asentajankatu 6, 00880 Helsinki, Finland, tel. +358 20 7795 500 fax +358 20 7795 555, e-mail: sales@planmeca.com, www.planmeca.com...
  • Page 3: Table Of Contents

    INTRODUCTION ............................ 1 Symbols ............................1 Planmeca Ethernet interface kit ....................1 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE DIXI3 DIGITAL INTRA X-RAY SYSTEM ............................2 Overview of the installation ......................2 Installing Planmeca Ethernet Interface ..................3 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY SYSTEM ............................
  • Page 4 IEC364 - equipment is used according to the operating instructions Planmeca pursues a policy of continual product development. Although every effort is made to produce up-to-date product documentation this publication should not be regarded as an infallible guide to current specifications. We re- serve the right to make changes without prior notice.
  • Page 5: Introduction

    INTRODUCTION INTRODUCTION The Planmeca Ethernet Interface is for use with the Planmeca Dixi3 digital intra X-ray system or with the Planmeca Proline XC X-ray with Dimax3 system and Planmeca Dimaxis Pro and Dimaxis Classic imaging softwares. This manual describes how to install and use the system.
  • Page 6: Installation Of The Planmeca Ethernet Interface Box To The Dixi3 Digital Intra X-Ray System

    INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE DIXI3 DIGITAL INTRA X-RAY SYS- INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE DIXI3 DIGITAL INTRA X-RAY SYSTEM 2.1 Overview of the installation PC / Thin client Planmeca Ethernet Interface...
  • Page 7: Installing Planmeca Ethernet Interface

    PLANMECA ETHERNET INTERFACE Attach the RJ45 Cat. 5 UTP cable from 10/100 Base-T directly to the hub or the cross-con- nected Cat. 5 UTP cable to the computer. The Link light comes on on the Planmeca Ethernet Interface. Attach the 15m interconnection cable from Dixi3 either to Port 1 or Port 2 (or to both of them in case you use two Dixi2 systems).
  • Page 8 The sync cable is required when you want to store the exposure parameters with the image. It is also required when you want to use the Planmeca Intra control panel in the Dimaxis 4.0 software Intraoral Exposure window. The exposure parameters can be set in this window if you are using the Planmeca Intra with updated software 3.0.3.
  • Page 9 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE DIXI3 DIGITAL INTRA X-RAY Open then the Internet Explorer, insert the Planmeca Ethernet Interface default IP address 192.168.0.135. Without this default IP Address you can not configurate your Ethernet Inter- face.
  • Page 10 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE DIXI3 DIGITAL INTRA X-RAY SYS- Select Programs/Planmeca/Didapi Configuration from your Start menu. From the appearing window select Ethernet Interface . In the Ethernet Interface window the Dixi Ethernet Interface, the ProMax Ethernet Interface and the Proline Ethernet Interface can be configured.
  • Page 11 Computer name “Localhost” Ethernet Interface IP Address Network Name The Planmeca Ethernet Interface is now installed and you can enter the Dimaxis Pro or Dimaxis Classic program. NOTE Before installing the device to the network contact your network administrator if needed.
  • Page 12: Installation Of The Planmeca Ethernet Interface Box To The Planmeca Proline Xc X-Ray System

    INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY SYSTEM 3.1 Overview of the installation PC / Thin client Planmeca Ethernet Interface server...
  • Page 13: Installing Planmeca Ethernet Interface

    INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY 3.2 Installing Planmeca Ethernet Interface To install the Planmeca Ethernet Interface first attach the Ethernet interface box to the power supply and plug the power supply to the mains. Check that the OK indicator light on the Planmeca Ethernet Interface box comes on (see picture below).
  • Page 14 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY Open then the Internet Explorer, insert the Planmeca Ethernet Interface default IP address 192.168.0.135. Without this default IP Address you can not configurate your Ethernet Inter- face.
  • Page 15 INSTALLATION OF THE PLANMECA ETHERNET INTERFACE BOX TO THE PLANMECA PROLINE XC X-RAY Select Programs/Planmeca/Didapi Configuration from your Start menu. From the appearing window select Ethernet Interface . In the Ethernet Interface window the Dixi Ethernet Interface, ProMax Ethernet Interface and Proline Ethernet interface can be configured.
  • Page 16 Computer name “Localhost” Ethernet Interface IP Address Network Name The Planmeca Ethernet Interface is now installed and you can enter the Dimaxis Pro or Dimaxis Classic program. NOTE Before installing the device to the network contact your network administrator if needed.
  • Page 17: Restoring The Factory Default Settings

    Set button (1) with a sharp pin and plug in the power supply cable (2) (see pic- ture below). 10/100 Base-T PLANET PORT 1 PORT 2 13,2VDC IN max. 1A LINK TX/RX STATUS PLANMECA ETHERNET INTERFACE Installation manual Planmeca Ethernet interface 13...
  • Page 18: Indicator Lights Of The Planmeca Ethernet Interface Box

    PLANMECA ETHERNET INTERFACE Planmeca Ethernet interface box indicator lights PLANMECA ETHERNET INTERFACE BOX Link Planmeca Ethernet interface box is connected to the hub/switch or to the computer when the Link light is on. TX/RX Data is transferred/received when the light is flashing.
  • Page 19: Cleaning

    CLEANING CLEANING The Planmeca Ethernet Interface can be cleaned with a soft cloth damped in a mild cleaning solution. NOTE Do not disinfect the unit. CAUTION Switch off the unit before cleaning. Installation manual Planmeca Ethernet interface 15...
  • Page 20: Upgrading Ethernet Interface Software

    Upgrading the software While the Set button is pressed and held with a sharp pin when the Planmeca Ethernet Box is powered up, Ethernet Box will boot up using the 10.1.0.5 IP address and listen for a new soft- ware on the network.
  • Page 21 UPGRADING ETHERNET INTERFACE SOFTWARE The Local Area Connection Properties window appears. Select Internet Protocol (TCP/ IP) from the item list and click Properties. Write down the current Computer IP and subnet mask settings. Installation manual Planmeca Ethernet interface 17...
  • Page 22 UPGRADING ETHERNET INTERFACE SOFTWARE Change the IP address to 10.1.0.x (for example 10.1.0.10) and the subnet mask to 255.255.255.0. Click OK. a: Connect a Cross connected Cat. 5 UTP cable between the PC and the Ethernet box. b: Make sure the computer and the ethernet box are connected to same network. Before doing this ask the local network administrator that it is allowed to use these IP settings temporarily.
  • Page 23 UPGRADING ETHERNET INTERFACE SOFTWARE To run the software update, give the command: loader 10.1.0.5 SOFTWAREFILE (e.g. loader 10.1.0.5 dixibox1_4_2_0R.sr). Press and hold the Ethernet box Set button (1) with a sharp pin and plug in the power supply cable (2) (see picture below).
  • Page 24 UPGRADING ETHERNET INTERFACE SOFTWARE 11. Wait at least a minute before disconnecting the power cable. The Flash chip in the Ethernet box will be programmed and this takes some time. It is safe to disconnect the power cable after link led goes off and on again.
  • Page 25: Technical Specifications

    Class I, type BF Power supply Type: Mascot 9920/12/3617 Input voltage 100-240 VAC (50-60 Hz) Output voltage 12VDC...13.2VDC +-5% Max. output current> 1A Insulation voltage Primary-secondary 4000 VAC / 5640 VDC Plug ø2.5mm ø5.5mm Installation manual Planmeca Ethernet interface 21...
