8.
9.
10. You can release the button when the link led goes on.
Installation manual

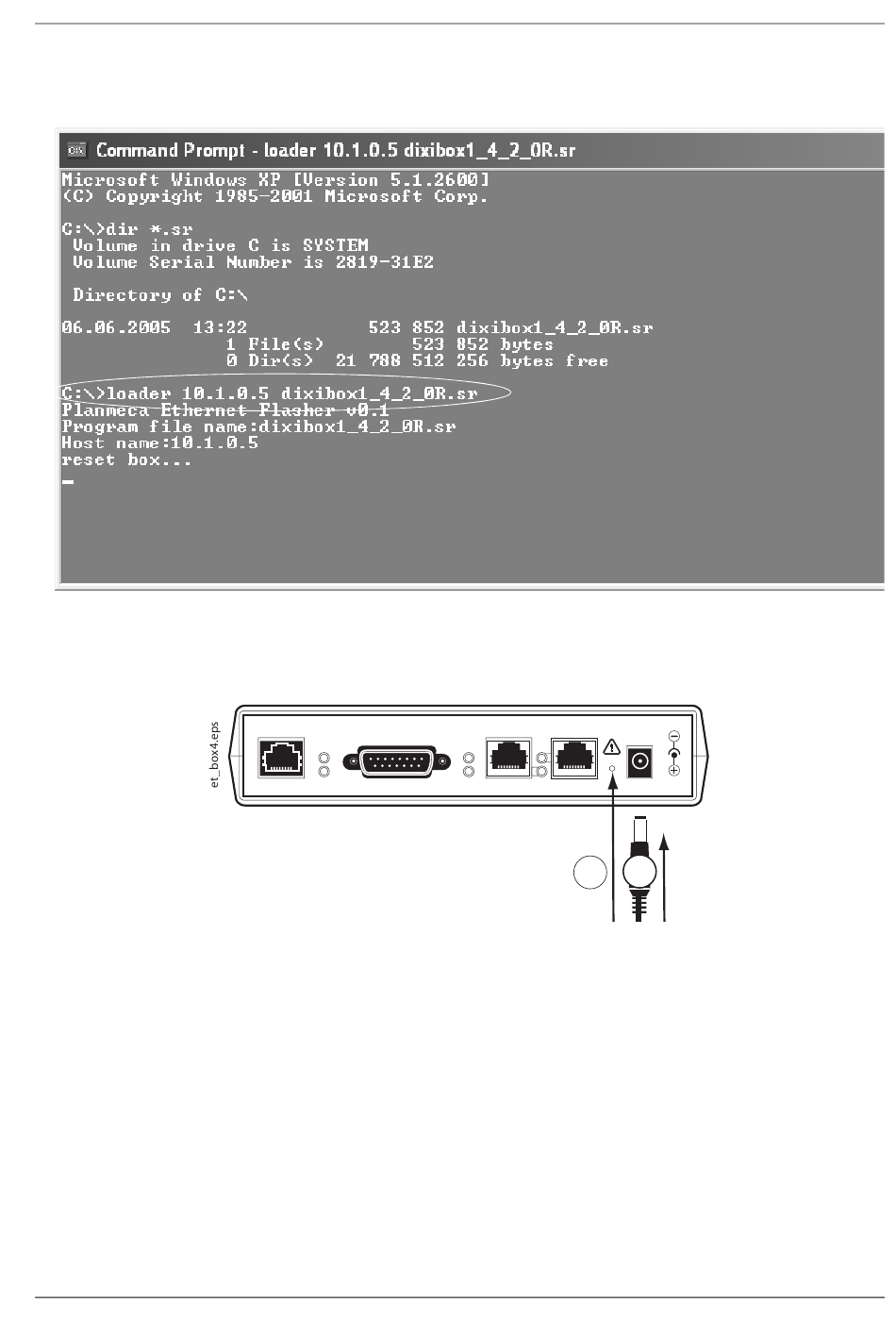

To run the software update, give the command: loader 10.1.0.5 SOFTWAREFILE (e.g.
loader 10.1.0.5 dixibox1_4_2_0R.sr).
Press and hold the Ethernet box Set button (1) with a sharp pin and plug in the power
supply cable (2) (see picture below).
10/100 Base-T PLANET
LINK
TX/RX
UPGRADING ETHERNET INTERFACE SOFTWARE
PORT 1 PORT 2 13,2VDC IN
max. 1A
PWR
OK
SET
STATUS
PLANMECA ETHERNET INTERFACE
1
2
