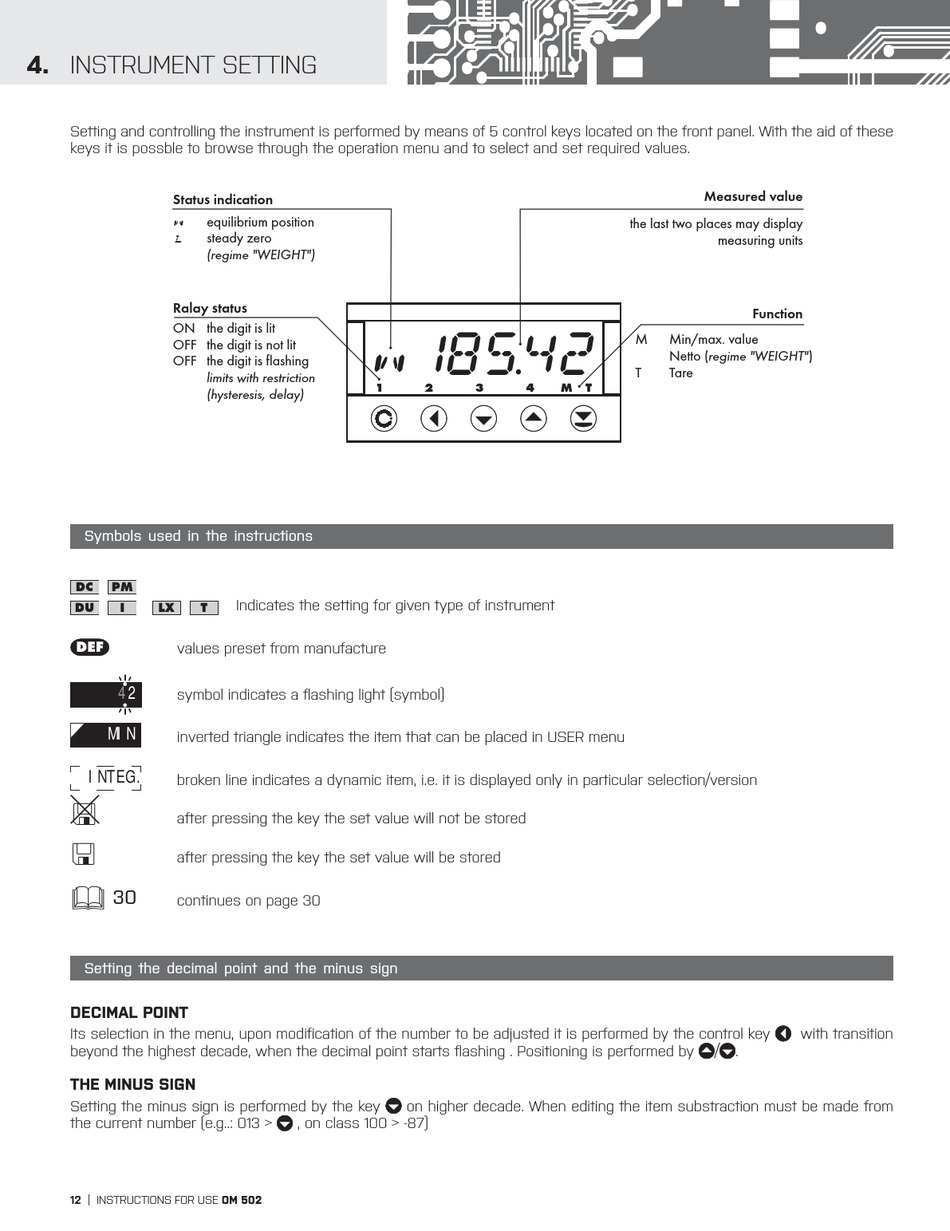

4. INSTRUMENT SETTING
Setting and controlling the instrument is performed by means of 5 control keys located on the front panel. With the aid of these
keys it is possble to browse through the operation menu and to select and set required values.
Status indication
w
z
Ralay status
ON the digit is lit
OFF the digit is not lit
OFF the digit is flashing

Symbols used in the instructions

DC PM
DU I LX T
values preset from manufacture
DEF
42
symbol indicates a flashing light (symbol)
MIN
inverted triangle indicates the item that can be placed in USER menu
INTEG.
broken line indicates a dynamic item, i.e. it is displayed only in particular selection/version

after pressing the key the set value will not be stored
 
after pressing the key the set value will be stored
 
30
continues on page 30
Setting the decimal point and the minus sign
DECIMAL POINT
Its selection in the menu, upon modification of the number to be adjusted it is performed by the control key
beyond the highest decade, when the decimal point starts flashing . Positioning is performed by
THE MINUS SIGN
Setting the minus sign is performed by the key
the current number (e.g..: 013 >
12 | INSTRUCTIONS FOR USE OM 502
equilibrium position
steady zero
(regime "WEIGHT")
w185. 4 2
limits with restriction
1
(hysteresis, delay)
Indicates the setting for given type of instrument
, on class 100 > -87)
2 3 4 M T

on higher decade. When editing the item substraction must be made from
Measured value
the last two places may display
measuring units
Function
M Min/max. value
Netto (regime "WEIGHT")
T Tare
with transition
/
.
