Operation - Swan Analytical Instruments AMU Inducon Operator's Manual

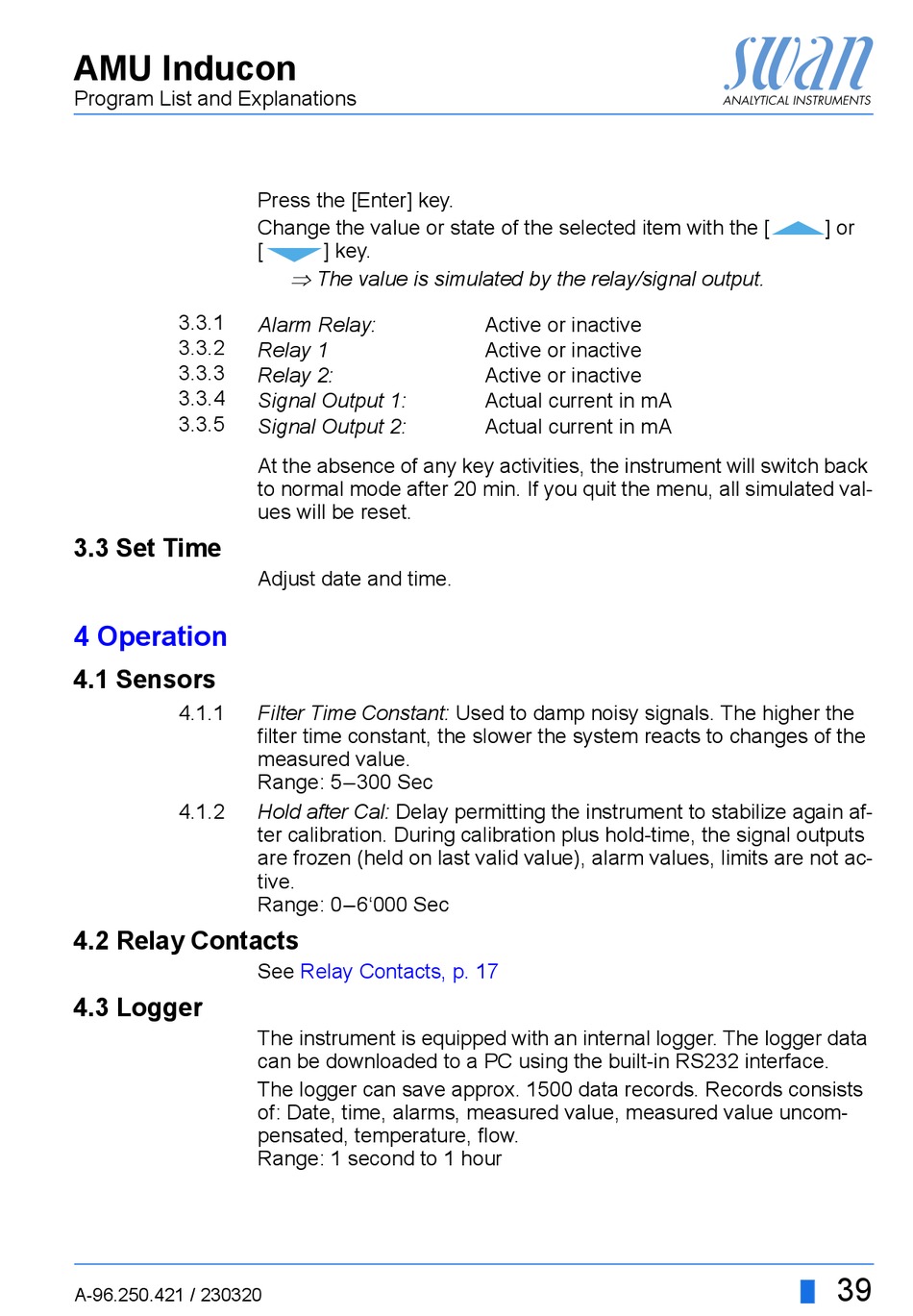

AMU Inducon
Program List and Explanations
3.3.1
3.3.2
3.3.3
3.3.4
3.3.5
3.3 Set Time

4 Operation

4.1 Sensors
4.1.1
4.1.2
4.2 Relay Contacts
4.3 Logger
A-96.250.421 / 230320
Press the [Enter] key.
Change the value or state of the selected item with the [
[ ] key.
 The value is simulated by the relay/signal output.
Alarm Relay:
Relay 1
Relay 2:
Signal Output 1:
Signal Output 2:
At the absence of any key activities, the instrument will switch back
to normal mode after 20 min. If you quit the menu, all simulated val-
ues will be reset.
Adjust date and time.
Filter Time Constant: Used to damp noisy signals. The higher the
filter time constant, the slower the system reacts to changes of the
measured value.
Range: 5–300 Sec
Hold after Cal: Delay permitting the instrument to stabilize again af-
ter calibration. During calibration plus hold-time, the signal outputs
are frozen (held on last valid value), alarm values, limits are not ac-
tive.
Range: 0–6'000 Sec
See Relay Contacts, p. 17
The instrument is equipped with an internal logger. The logger data
can be downloaded to a PC using the built-in RS232 interface.
The logger can save approx. 1500 data records. Records consists
of: Date, time, alarms, measured value, measured value uncom-
pensated, temperature, flow.
Range: 1 second to 1 hour
Active or inactive
Active or inactive
Active or inactive
Actual current in mA
Actual current in mA
] or
39
