TEUCER LR-RGB/RGBW Quick Start Manual

CONTROLLER AND RECEIVER
LR-RGB/RGBW and R4C
1 zone RF controller and receiver for RGBW LED strip
Product Description
The LR-RGB/RGBW remote enables control of single zone of
RGBW LED strip. Featuring a touch colour wheel, the LR-
RGB/RGBW controller enables the user to adjust the output
colour seamlessly via the scroll wheel.
Features
• Built in play mode to create dynamic effects.
• PWM dimming enables flicker-less dimming.
• Works with signal repeaters to expand output.
• 2.4GHz wireless technology, enabling remote distance
of up to 30m.
• LED indicator light for ease of use.
• Each remote can control one or more receivers.
• Control each zone separately or simultaneously.
• Dimming range: 0-100%.
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Power
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
LR-RGB/RGBW
RF Remote
3VDC
2.4GHz
58.5x107x9mm (WxLxH)
battery CR2032
R4C
RF receiver
12-36VDC
3x4A
4x(60-180)W
Constant voltage
45x175x27mm (WxLxH)

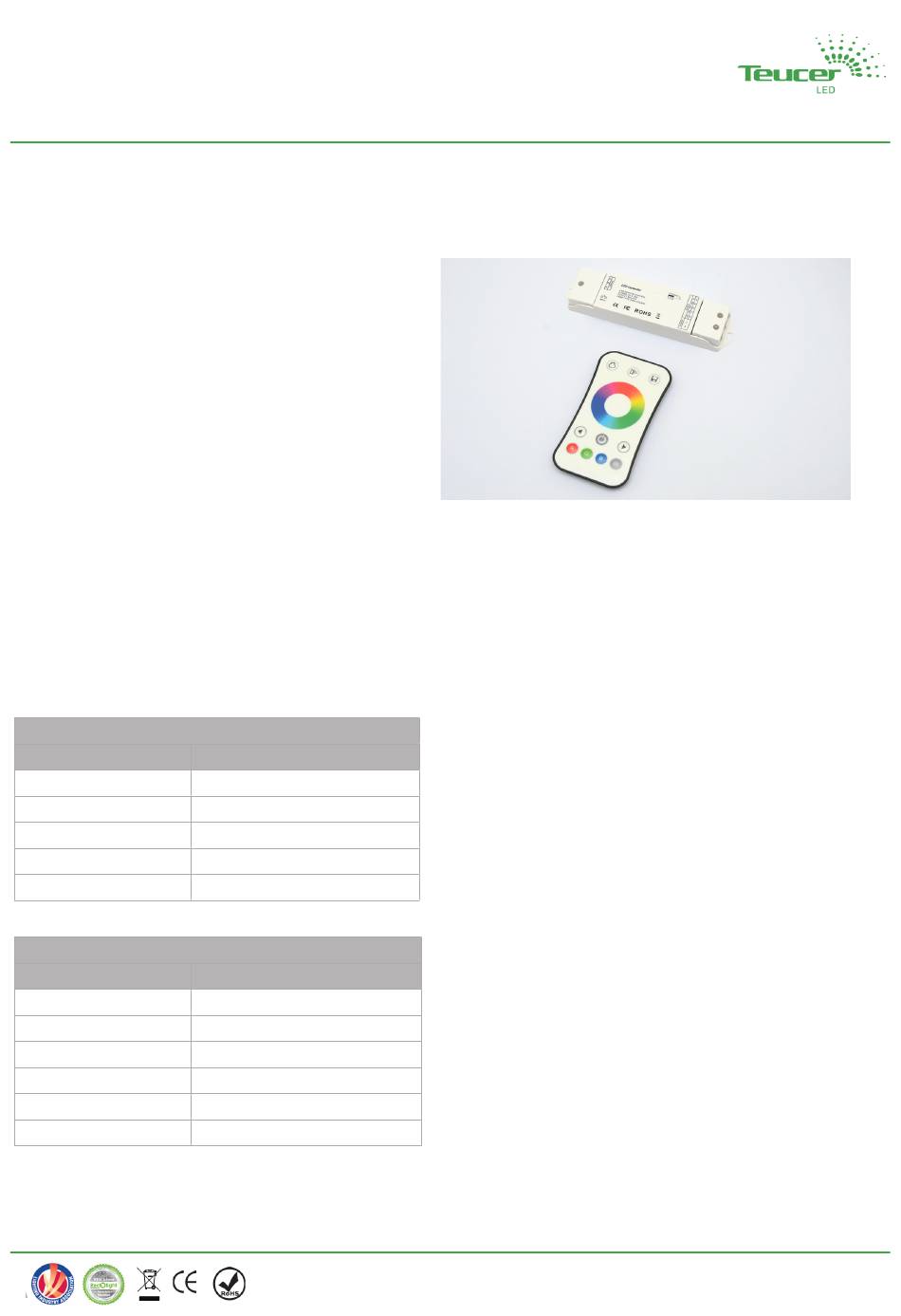

Product Image
Recommendation
RF technology allows for greater flexibility when it comes to
controlling simple or complex lighting installations without
the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in a
ceiling , reducing the RF signal strength and therefore the
communication range.
In order to overcome these RF Signal restrictions we sug-
gest the following when synchronising our RF controllers
and receivers:
• Keep the distance within 10 meters from the control-
ler to the receiver. The remote can operate up to 30
meters if signal is uninterrupted by obstacles.
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
• If your installation requires several RF receivers, ensure
the "master" receiver is positioned in the middle.
