TEUCER LR-4RGBCCT Quick User Manual

Controller and receiver
LR-4RGBCCT and R5C
4 zones RF controller and receiver for RGBCCT LED strip
Product Description
The LR-4RGBCCT remote enables one to control up to
4 zones of RGBCCT LED strips.
Featuring a touch colour wheel which offers smooth
and continuous colour changing options and enables
creation of colourful static and dynamic effects.
Features
• Easy control of RGBCCT LED strips.
• Single zone, two, three and four zone control.
• 2.4GHz wireless technology, remote distance of up
to 30m.
• Operates with an LED indicator light for ease of use.
• Each remote can control one or more receivers.
• Control each zone separately or simultaneously
• Receiver auto-synchronization for play modes
• Auto-transmitting function to achieve greater
distances between receivers and the remote
• PWM dimming enables flicker-less dimming
• Built in 10 RGB play modes
Technical Specification
Controller
Order Code
Type
Power
Operation Frequency
Dimension
Weight:
Receiver
Order Code
Type
Operation Frequency
Input Voltage
Current
Output
Note
Dimension
Operating temper-
ature
LR-4RGBCCT
RF Remote
3V DC (2x AAA battery)
2.4GHz
53x122x17mm (WxLxH)
60g
R5C
RF receiver
2.4GHz
12-24VDC
5x3A
5X(36-72)W
Constant voltage
38x114x20mm (WxLxH)
-20°C~+55°C

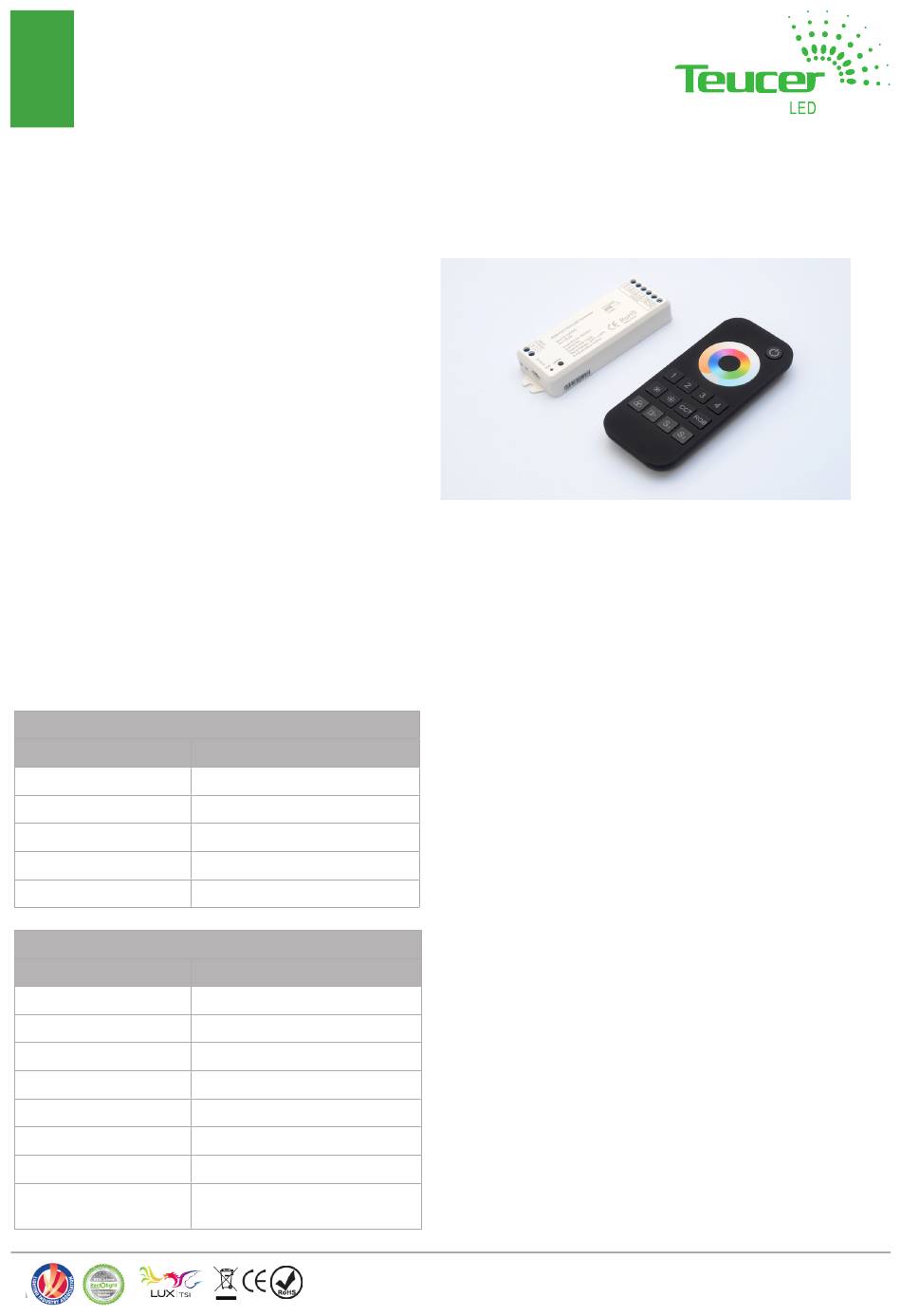

Product Image
Recommendation
RF technology allows for greater flexibility when it comes
to controlling simple or complex lighting installations
without the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in
a ceiling , reducing the RF signal strength and therefore
the communication range.
In order to overcome these RF Signal restrictions we
suggest the following when synchronising our RF
controllers and receivers:
• Keep the distance within 10 meters from the
controller to the receiver. The remote can operate up
to 30mtrs if signal is uninterrupted by obstacles.
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
