TEUCER WP-4RGBWN Technical Specification

CONTROLLER AND DMX DECODER
WP-4RGBWN and DIM-DMX1CH(N)
4 zones RF controller with DMX decoder for RGB/W LED strip
Product Description
The WP-4RGBWN wall panel enables control of 1 to 4 zones
of RGB/W LED strip. Featuring a simple to use back lit touch
control slider for easy colour adjustment .
Features
• Enables control via DMX (when used with DIM-DMX-
1CH(N) ) or wirelessly via RF with a Teucer RF receiver.
• Supports single zone independent control or multiple
zone synchronous control.
• Ultra-sensitive backlit high strength glass touch panel.
• Smooth and accurate colour adjustment via a touch col-
our slider.
• Independent brightness adjustment of each RGB chan-
nel to achieve vast pallet of colours.
• Built in 30 optional change modes with adjustable speed
and brightness.
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
WP-4RGBWN
RF and DMX wall panel
AC85-265V
2.4GHz
86x86x36.5mm (WxLxH)
DIM-DMX1CH(N)
DMX decoder
12-24VDC
4x5A
4x(60-120)W
Constant voltage
50x170x23mm (WxLxH)

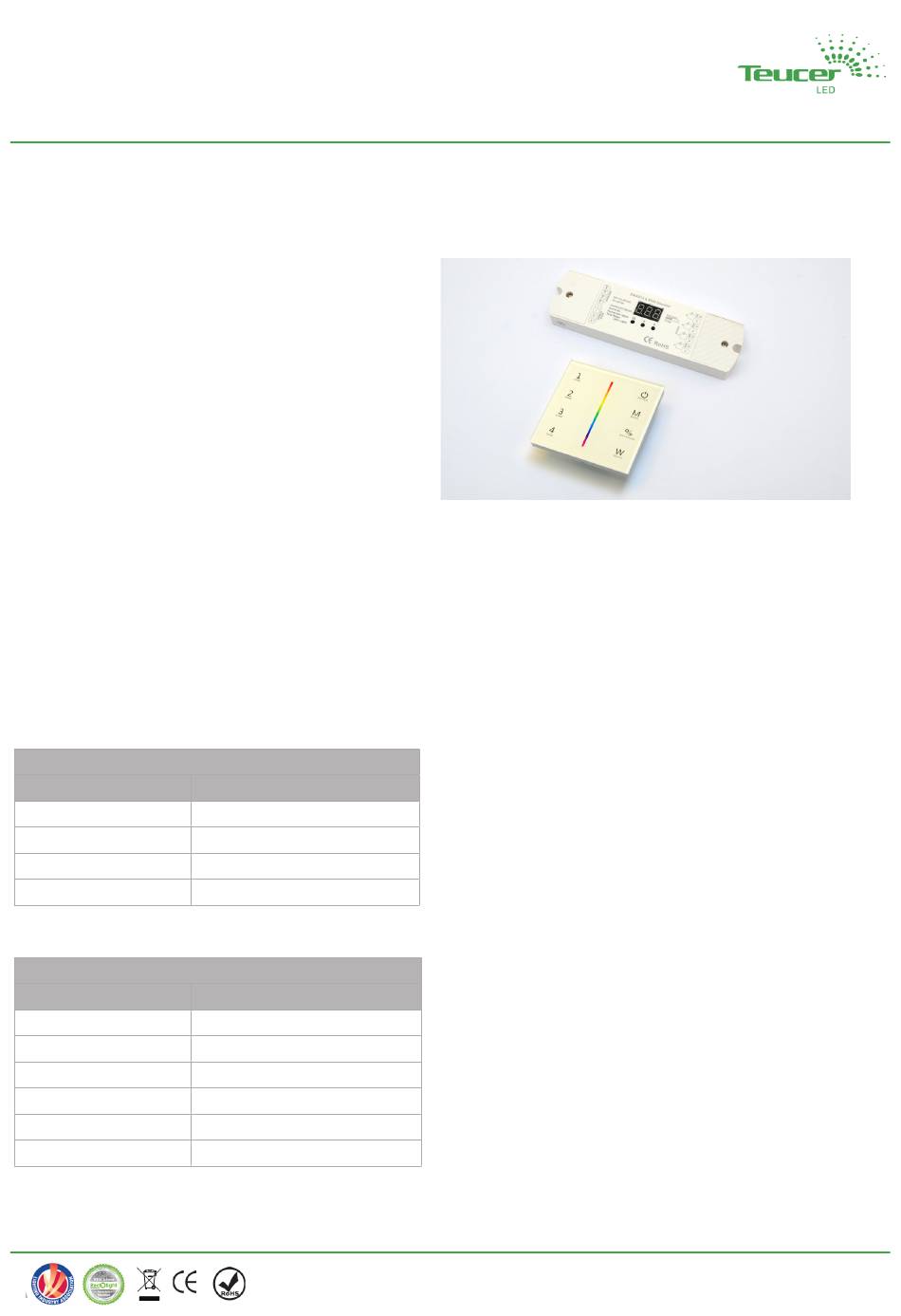

Product Image
Recommendation
DMX is a standard protocol for digital communication which
allows control of DMX devices / lighting from a compatible
DMX controller.
We recommend using the WP-4RGBWN controller when
controlling all lighting as a single zone.
Please note that with the DIMDMX1CH(N) one can use the
manual button to switch ON the connected LED strips and
check the operation by cycling through the various modes.
• When expanding your lighting always try and use a sig-
nal repeater (PR-RGB) where possible.
• If using DMX over 55mtrs it is recommended to use a
DIM-DMXAMP (amplifier) for longer distances.
• Can be used with DMX control systems
Brighter for longer
www.teucerled.co.uk
