TEUCER WP-4RGBWN Quick User Manual

CONTROLLER AND RECEIVER
WP-4RGBWN and R4C
4 zones RF controller with R4C receiver for RGBW LED strip
Product Description
The WP-4RGBW wall panel enables control of 1 to 4 zones
of RGBW LED strip. Featuring a simple to use back lit touch
control slider for easy colour adjustment .
Features
• Enables control via DMX (DMX decoder required for
DMX) or wirelessly via RF
• Supports single zone independent control or multiple
zone synchronous control.
• Ultra-sensitive backlit high strength glass touch panel.
• Smooth and accurate colour adjustment via a touch
colour slider.
• Independent brightness adjustment of each RGBW
channel to achievea vast pallet of colours.
• Built in 30 optional change modes with adjustable
speed and brightness.
Technical Specification
Controller
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
WP-4RGBWN
RF and DMX wall panel
AC85-265V
2.4GHz
86x86x36.5mm (WxLxH)
R4C
RF receiver
12-36VDC
4x5A
4x(60-180)W
Constant voltage
45x175x27mm (WxLxH)

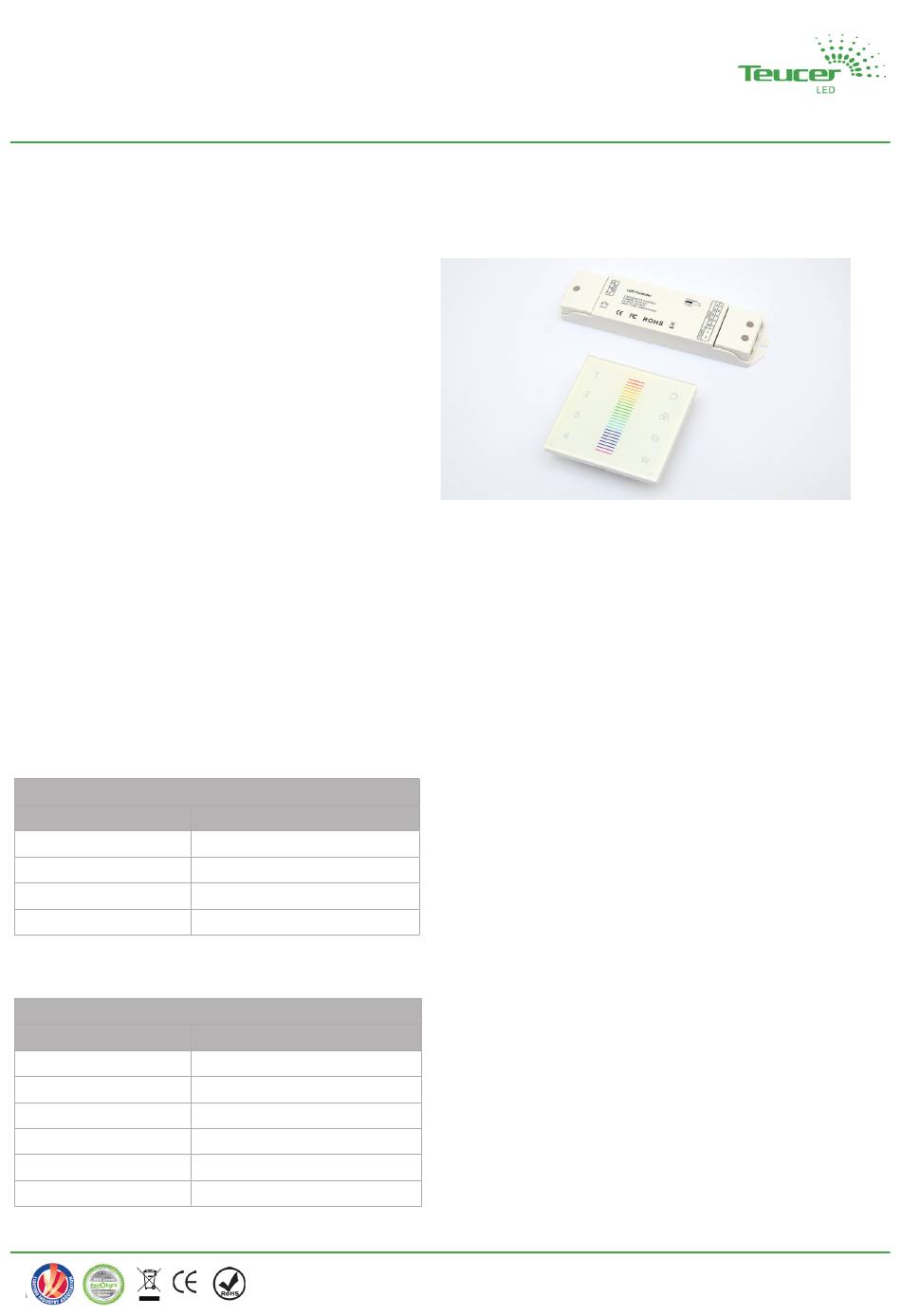

Product Image
Recommendation
RF technology allows for greater flexibility when it comes to
controlling simple or complex lighting installations without
the need of additional cabling.
There are some limitations where installations have the
receivers enclosed in electrical boxes or hidden away in a
ceiling , reducing the RF signal strength and therefore the
communication range.
In order to overcome these RF Signal restrictions we sug-
gest the following when synchronising our RF controllers
and receivers:
• Keep the distance within 10 meters from the control-
ler to the receiver. The remote can operate up to 30
meters if signal is uninterrupted by obstacles.
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
• If your installation requires several RF receivers, ensure
the "master" receiver is positioned in the middle.
