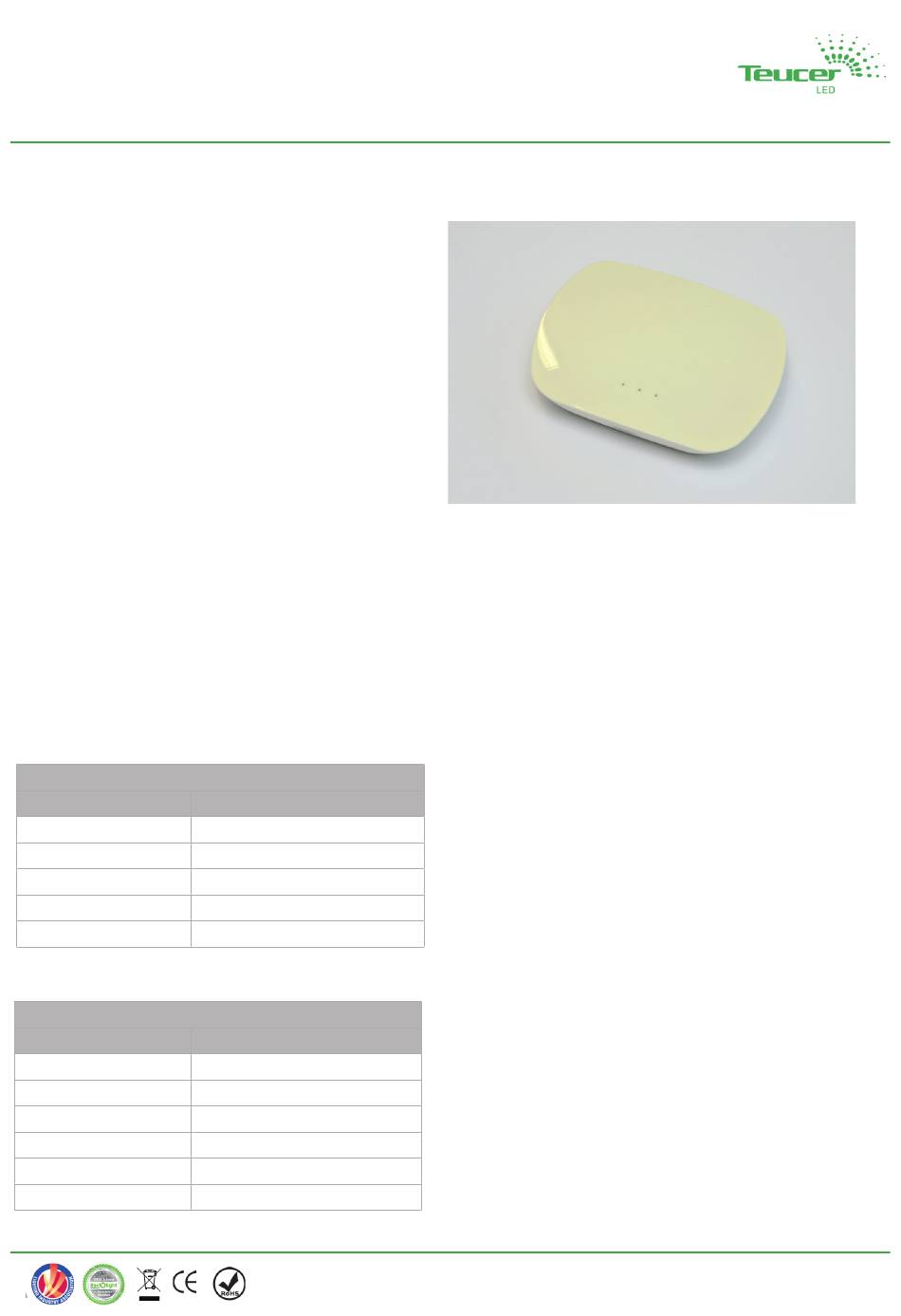

TEUCER LR-WIFI/TRANS Instructions Manual

WIFI TRANSMITTER
LR-WIFI/TRANS
Product Description
The LR-WIFI/TRANS is a compact WiFi-RF converter designed
to convert WiFi signal to RF signal and is compatible with
LRR-WTC receivers, to be WiFi controlled by APP installed on
IOS and Android mobile devices.
It receives WiFi signal from the mobile devices and converts
it to RF signal which is then sent to the receiver. You can
control single colour, dual colour, RGB and RGBW LED strips.
You can download and use free mobile app found on iOS
App store and on Goolgle Play store.
Features
• Converts WiFi signal to RF
• Compatible with LR-WTC series receivers
• More convenient and flexible control
• Single or multiple receivers can be controlled
• Free APP available from iOS App store and
on Gool gle Play store.
• User friendly APP interface
• No additional remote control required
Technical Specification
Transmitter
Order Code
Type
Input Voltage
Operation Frequency
Dimension
Operating temperature 0-40°C
Receiver
Order Code
Type
Input Voltage
Current
Output
Note
Dimension
LR-WIFI/TRANS
WIFI TRANSMITTER
12VDC
2.4Ghz / 869.5Mhz
85x110x24mm (WxLxH)
LRR-WTC
RF receiver
12-36VDC
4X5A
4X(60-180)W
Constant voltage
46x178x22mm (WxLxH)
Recommendation
RF and WiFi technology allows for greater flexibility when it
comes to controlling simple or complex lighting installations
without the need of additional cabling.
There are some limitations where installations have the
receivers and transmitters enclosed in electrical boxes or
hidden away in a ceiling, reducing the RF and WiFi signal
strength and therefore the communication range.
In order to overcome these RF/WiFi signal restrictions we
suggest the following when synchronising our RF/WiFi
controllers/transmitters and receivers:
• Keep the distance within 10 meters from the controller/
transmitter to the receiver
• When expanding your lighting, always try and use a
signal repeater (PR-RGB), where possible.
• If your installation requires several RF receivers, ensure
the "master" receiver is positioned in the middle.
