Summary of Contents for Viqua IHS22-E4

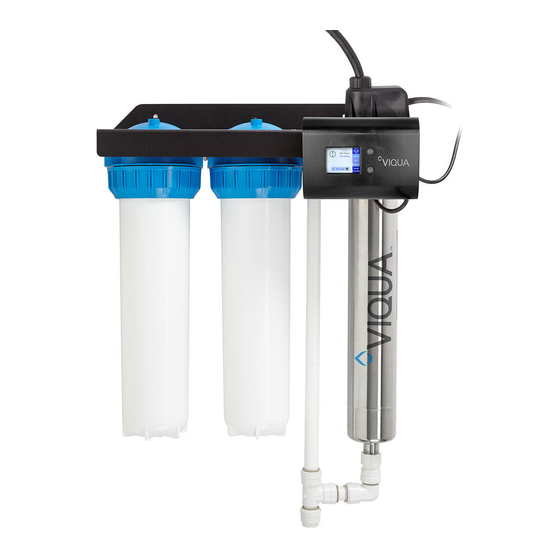

- Page 1 Owner’s Manual Model: IHS22-E4 Powered by 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
- Page 2 • VIQUA replacement lamps undergo rigorous performance testing and strict quality control processes to ensure that the safety and performance certifications of the original equipment are not compromised. So, you can see that it's simply not worth the risk! Insist on genuine VIQUA replacement lamps.
-
Page 3: Safety Information
Safety Information Section 1 Safety Information These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to the equipment. -
Page 4: Water Chemistry
Safety Information WA R N I N G • During extended periods of no water flow, the water in your chamber can become very hot (Approx. 60 °C) and potentially lead to scalding. It is recommended to run your water until this hot water has been purged from your chamber. Do not allow water to contact your skin during this time. To eliminate this condition, a temperature management valve can be installed at the outlet of your UV system. -
Page 5: General Information
Used on all systems. Sediment filter CMB-520-HF Used on all systems. O-ring OR40-50 Used on all systems. Bracket Lamp connector Used on all systems. 602636 (120V) IHS22-E4 602637 (230V) IHS22-E4/2 Power cord 260013 IHS22-E4/2A (Australian) 260012 (UK) IHS22-E4/2B Controller (includes Controller 650733R-001 Used on all systems. - Page 6 602805 LAMPE DE RECHANGE: "C" DATE OF MANUFACTURE: Figure 2 Model IHS22-E4- Controller Components Support Screen Programming - For Dealers and Installers Only Dealers/Installers can personalize this Screen with their company logo and contact information such as Company Name, Company Phone Number and Company Website. This can be easily done by downloading the Dealer Logo Programming Software from the Viqua website: WWW.VIQUA.COM/LCD.
-
Page 7: Installation
Installation Item Description Function Main water shut-off valve Allows for sampling of raw water. Shut-off Valve Allows for ease of maintenance of whole home UV system. Bypass line and valve are optional. Intended to provide emergency water supply in Bypass shut-off valve the event that the UV system is unavailable. -
Page 8: Cleaning Procedure
Installation • Connect the green ground • Ensure quartz sleeve is • Insert lamp into the quartz • Place sleeve bolt onto the wire and red strain relief wire properly centered in the sleeve and thread into sleeve quartz sleeve, carefully push to the chamber using the chamber. - Page 9 Installation • Shut off the water supply. • Remove the drain plug at the • Ensure the controller is • Press the pressure button to bottom of the sump and place plugged in for entire cleaning release the pressure from the •...
-
Page 10: Operation
Operation Section 4 Operation 4.1 Control Panel Figure 4 Control Panel Buttons and Display Feature Description Function Displays the following: • Lamp life days • Product information Status Screen • Product support • UV level status • Active alarms • Scroll •... -
Page 11: Controller Start Up
• Select to enter the model preferred. This ensures the correct Systems Model: E4+ Model: D4+ replacement parts are displayed in the Info screen. Model: IHS22-E4 Model: F4-50+ Model: E4-50+ Select Product Registration Have you registered your product Reminds USER to register their product for product updates and... - Page 12 Press and hold button for 5 seconds until you here an audible If yes please reset the beep. Lamp Replacement RESET lamp day timer • Your Lamp Life Days is now reset to 365 days. If not visit viqua.com/lamps or contact your dealer Reset Hold 5 Sec...
- Page 13 Pressing Scroll button will advance to the next troubleshooting check lamp age. If more than 1 year, replace lamp. Otherwise guide screen. contact customer service 1-800-265-7246 or visit www.viqua.com/lamps. See Info screen for replacement part number. >> Low UV Scroll Failure 6.
- Page 14 Operation Description Display Function Scroll Low UV Failure Status Low UV Failure Alarm Status Press the Scroll button to access the replacement part numbers Screen and Dealer contact information. Info Support For contact information select support screen Controller Failure Mute Pressing the Mute button will silence the alarm for 24 hours and 1.Unplug UV system from main power supply...
- Page 15 Operation Description Display Function Sensor Signal Failure Mute Pressing the Mute button will silence the alarm for 24 hours and 1. Sensor signal is outside of proper operating parameters. will display the troubleshooting guide. 2. Replace UV sensor. 3. See Info screen for replacement part number.
- Page 16 Product Information Screen. MODEL SELECTION Scroll Model: F4 Model: E4 Model: D4 Premium Model: F4+ Model: E4+ Model: D4+ Model: IHS22-E4 Model: F4-50+ Model: E4-50+ Select Figure 5 Model Selection Part Number Description Model 650695-R...
- Page 17 Operation 4.6 Dry Contact Connection Information The UVMax Controller is supplied with a Dry Contact Connection which allows connection to a remote device such as a Solenoid Valve or remote alarm indicator when a major alarm occurs with the UV system. 4.6.1 Alarm Descriptions The Dry Contact Output will inform you on the following Major Alarms: 1.
-
Page 18: Maintenance
Maintenance Section 5 Maintenance WA R N I N G • Always disconnect power before performing any work on the UV system. • Always shut-off water flow and release water pressure before servicing. • Regularly inspect your UV system to ensure that the power indicators are on and no alarms are present. •... - Page 19 Maintenance 5.2 Cleaning and Replacing Quartz Sleeve Note: Minerals in the water slowly form a coating on the quartz sleeve. This coating must be removed because it reduces the amount of UV light reaching the water, thereby reducing performance. If the sleeve can not be cleaned, it must be replaced.
-
Page 20: Replacing Cartridges
Troubleshooting 5.3 Replacing Cartridges C A U T I O N The sump housings will be heavy. It is recommended to change the filter cartridges regularly, approximately 3-4 times per year depending on water quality and usage. A gradual drop in water pressure after the filtration device is an indication that the pre-filter cartridges are nearing the end of their useful life. -
Page 21: Specifications
Leak detected at filters Remove sump, check for cartridge damage, re-assemble Filter cartridge not centered ensuring cartridge is centered Section 7 Specifications IHS22-E4 Operating Parameters Maximum operating pressure 100 PSI (689 kPa) Minimum operating pressure 4 PSI (27.5 kPa) Maximum ambient air temperature 104 ºF (40 ºC) -
Page 22: Section 8 Manufacturer's Warranty
VIQUA warrants the electrical (controller) and hardware components to be free from defects in material and workmanship for a period of three (3) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. - Page 23 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
