425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1
t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only)
t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069
e-mail: info@viqua.com
www.viqua.com

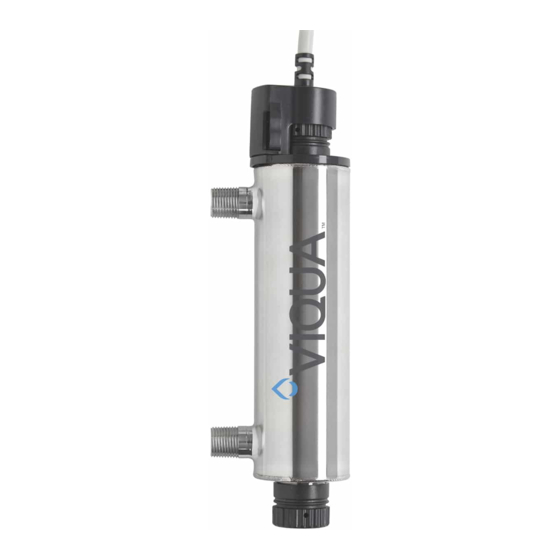

Owner's Manual
Powered by
Models:
VT1, VT1/2, VT1/2A, VT1/2B, VT1/12
VT4, VT4/2, VT4/2A, VT4/2B, VT4/12
520074_RevV
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viqua VT1
Summary of Contents for Viqua VT1
- Page 1 Owner’s Manual Models: VT1, VT1/2, VT1/2A, VT1/2B, VT1/12 VT4, VT4/2, VT4/2A, VT4/2B, VT4/12 Powered by 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com...
- Page 2 • VIQUA replacement lamps undergo rigorous performance testing and strict quality control processes to ensure that the safety and performance certifications of the original equipment are not compromised. So, you can see that it's simply not worth the risk! Insist on genuine VIQUA replacement lamps.
-
Page 3: Safety Information
Safety Information Section 1 Safety Information These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to the equipment. -
Page 4: Water Chemistry
Safety Information WA R N I N G • During extended periods of no water flow, the water in your chamber can become very hot (Approx. 60 °C) and potentially lead to scalding. It is recommended to run your water until this hot water has been purged from your chamber. Do not allow water to contact your skin during this time. To eliminate this condition, a temperature management valve can be installed at the outlet of your UV system. -
Page 5: General Information
General Information Figure 1 System Components Item Description Part Number UV Systems QS-212 VT1, VT1/2, VT1/2A, VT1/2B, VT1/12 Open-ended, GE 214 fused quartz sleeves with fire polished ends QS-330 VT4, VT4/2, VT4/2A, VT4/2B, VT4/12 O-ring 410867 Used on all systems ®... -
Page 6: Section 3 Installation
Installation Section 3 Installation 3.1 UV System C A U T I O N Electronic controller must be connected to a Ground Fault Protected Circuit (GFCI) receptacle. Ensure green ground wire ring terminal is securely fastened to ground stud on UV chamber. The UV system is designed to be mounted either horizontally or vertically at the point-of-use or point-of-entry depending on the specific flow rate of the unit. -
Page 7: Installation Procedure
Installation 8.5" VT1 Series 13" VT4 Series 64" Power Cord 25" Lamp Cord 4.7" Mounting Holes Ballast 12" VT1 Series 17" VT4 Series Figure 3 Figure 3 Typical Installation Installation Procedure: Figure 3 shows the installation of a typical point of use (POU) system and the related components that may be used for the installation. -
Page 8: Cleaning Procedure
Installation 4. Mount the controller horizontally to the wall, near the UV chamber. Ideally place the controller above the chamber and away from any water connection point, to prevent any water from potentially leaking onto the controller by means of a leak at a connection point or a “sweating”... - Page 9 Installation • Ensure the controller is • Shut off the water supply. • Press the pressure button to • Remove sump housing(s) plugged in for entire cleaning release the pressure from the using sump wrench. • Close each faucet. process. cartridges.
-
Page 10: Maintenance
Maintenance Section 4 Maintenance WA R N I N G • Always disconnect power before performing any work on the UV system. • Always shut-off water flow and release water pressure before servicing. • Regularly inspect your UV system to ensure that the power indicators are on. •... - Page 11 Maintenance 4.2 Cleaning and Replacing Quartz Sleeve Note: Minerals in the water slowly form a coating on the quartz sleeve. This coating must be removed because it reduces the amount of UV light reaching the water, thereby reducing performance. If the sleeve can not be cleaned, it must be replaced.
-
Page 12: Specifications
Specifications Section 5 Specifications VT1/2, VT1/2A, VT1/ Model VT1, VT1/12 VT4, VT4/12 VT4/2, VT4/2A, VT4/2B US Public Health 2 gpm (7.5 lpm) (0.45 m /hr) 2 gpm (7.5 lpm) (0.45 m /hr) 6.5 gpm (24 lpm) (1.4 m /hr) 6.5 gpm (24 lpm) (1.4 m... -
Page 13: Section 6 Manufacturer's Warranty
VIQUA warrants the electrical (controller) and hardware components to be free from defects in material and workmanship for a period of three (3) years from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty. - Page 14 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
