Instructions

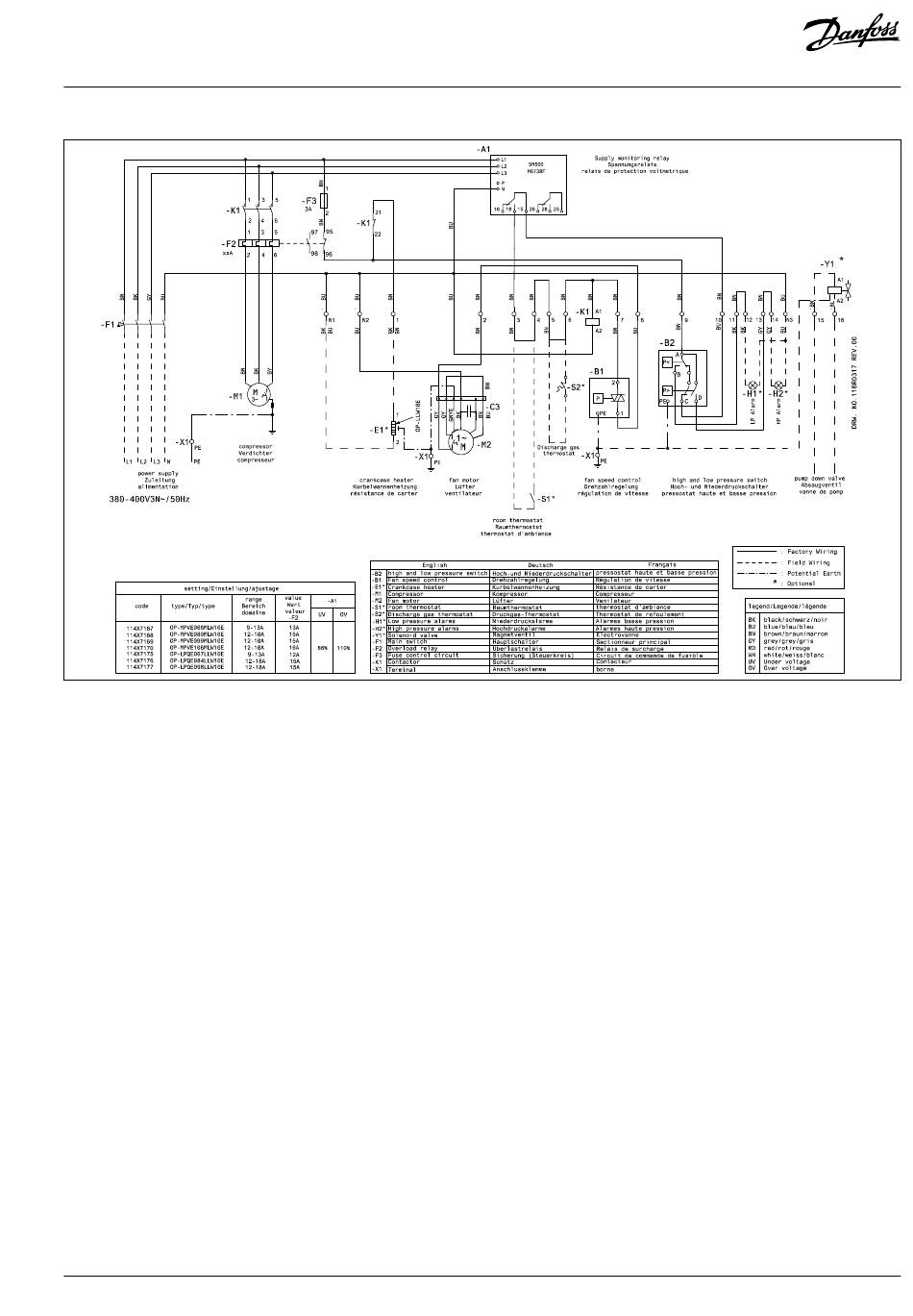

Code E (Version W10) : OP-LPQE067-084-098 & OP-MPVE068-080-099-108
Legend
A1 Supply & phase reversal protection relay
BK black
B1* Fan Speed Controller
BU blue
B2 DUAL Pressure Switch
BN brown
B3 Low pressure switch
GY grey
B3* Fan Speed Controller
RD red
C1 Start capacitor compressor
WH white
C2 Run capacitor compressor
E1, E1* Crankcase heater
F1 Main switch
© Danfoss | DCS (CC) | 2020.06
F1* Fuse control circuit
F2 Overload relay
F3 Fuse control circuit
H1* Low pressure alarms
H2* High pressure alarms
M1 Compressor
M2 Fan motor
K1, K1* Contactor
K2 Start relay
K2* Compressor contactor
K3* Fan contactor
Q1* Main switch
R1,R2 Bleeder resistor
S1* Room thermostat
S2* Discharge gas thermostat
X1 Terminals
Y1* Solenoid valve
