④Left and right rotary knobs: corresponding LD and RD
⑤Two buttons(or three-position switches): corresponding S1, S2 (or SC, SF)
⑥9 key channels: corresponding F1~F9
⑦Power button and indicator: used for power on and power off the device
⑧Power, signal strength, transmitting and receiving indicator: used for indicating power,
working status
⑨Left and right deflector rods: corresponding T5 and T6(return to center mode)
⑩RF antenna interfaces*2: used for connecting RF antennas
⑪Audio input and output interface: connecting headset audio output or microphone audio
input
⑫LAN port
⑬USB interface: 2*USB 3.0
⑭Multimedia interface: HDMI HD video and audio transmitting interface
⑮Video transmission interface: VGA HD video transmission interface
⑯Secondary display HDMI video input: can be used for external extended video input
⑰TYPE-C interface 1: user for power and touch for the secondary screen
⑱TYPE-C interface 2: user for the secondary display backup power
⑲Charging interface: connecting 12.6V DC adapter
⑳External battery charging interface: used for external battery extension

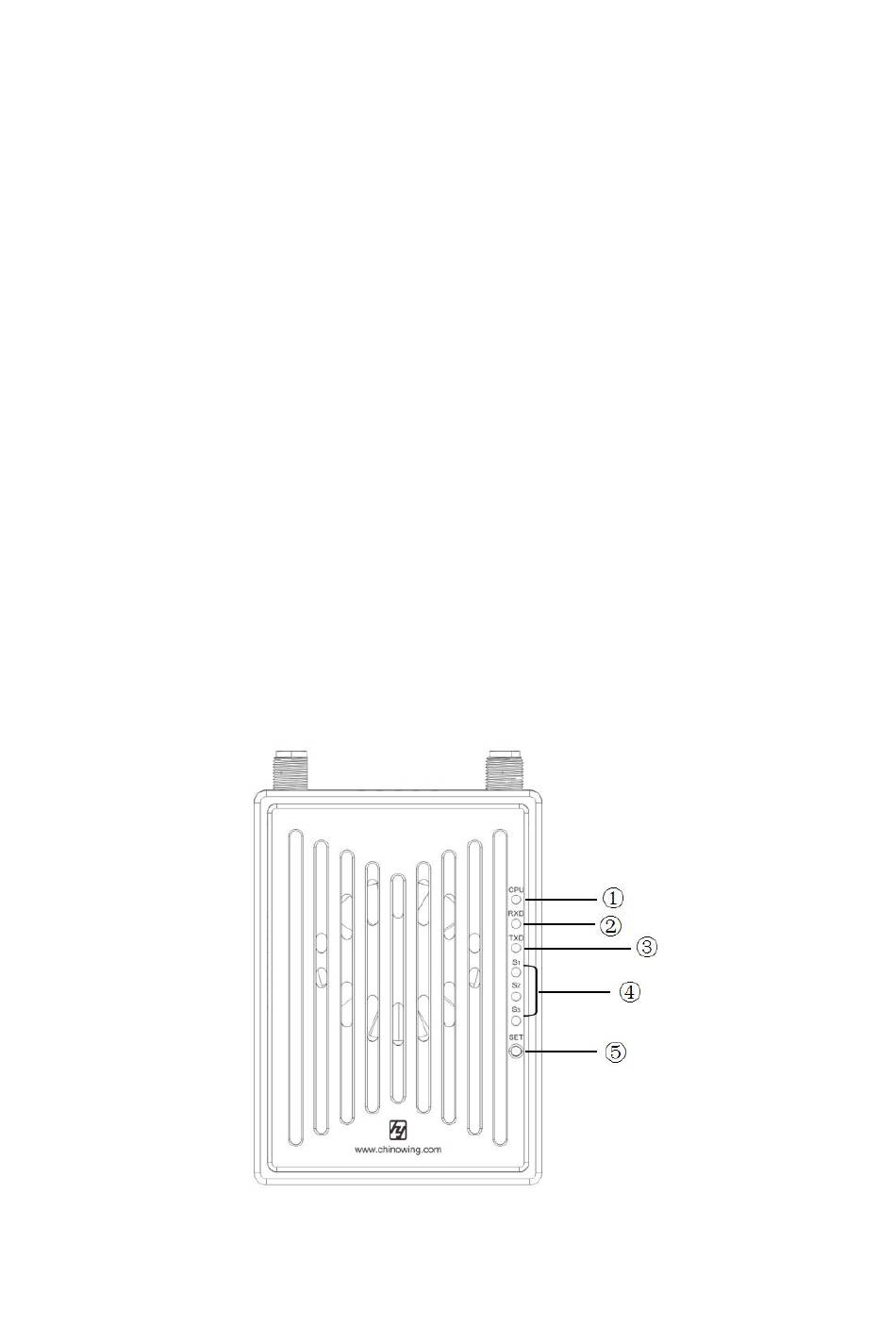

4.2. V20 Airborne Unit Indicator&Interface Instruction
Front view
①Video transmission CPU indicator: light will be continuously ON in normal working
condition.
②Data receiving indicator: light will flicker in the condition of data receiving.
