✽ Pay attention to the line sequence when connecting flight controller by transparent
transmission. V30 airborne unit is connected to flight controller or other equipment,
Rx corresponds to Tx, and GND corresponds to GND.
✽ When connecting, pay attention to the baud rate of the flight controller, V30 and
ground station should be kept consistent, otherwise the link cannot be established.

9.2. Video Connection Instruction for LAN Version

1. Connect the V30 and network camera by the standard 4-pin to Ethernet cable,
then connect the 7-12V power supply, the LAN port of the internal module of T30S
remote control has been connected to the Ethernet port.
2. For LAN version, there is no need to set the IP address of the airborne unit.

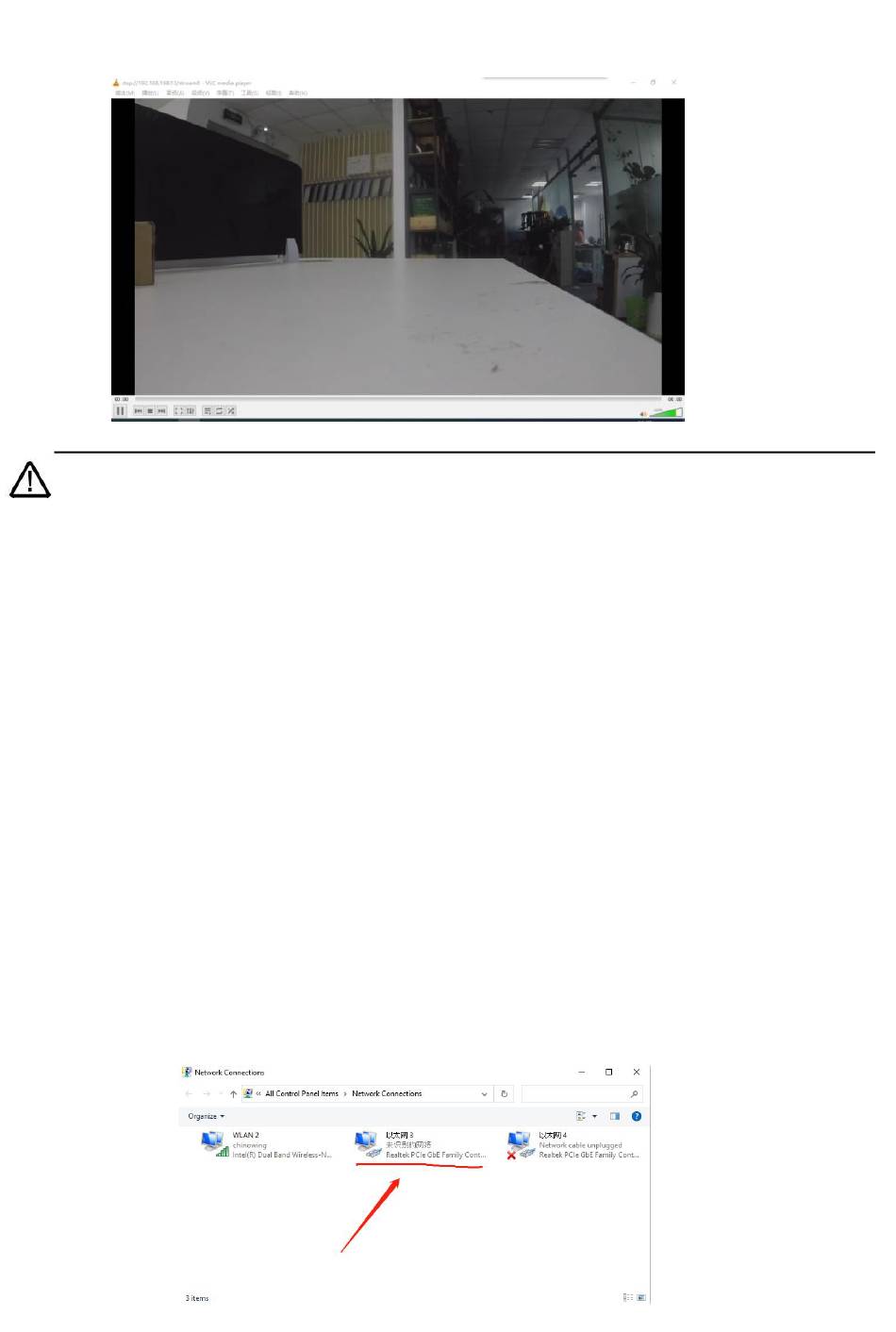

Open the network settings (TCP/IPV4 properties) of your computer and set the
network camera to be on the same network segment (as shown in the picture below).
