Foxtech T30s User Manual page 35

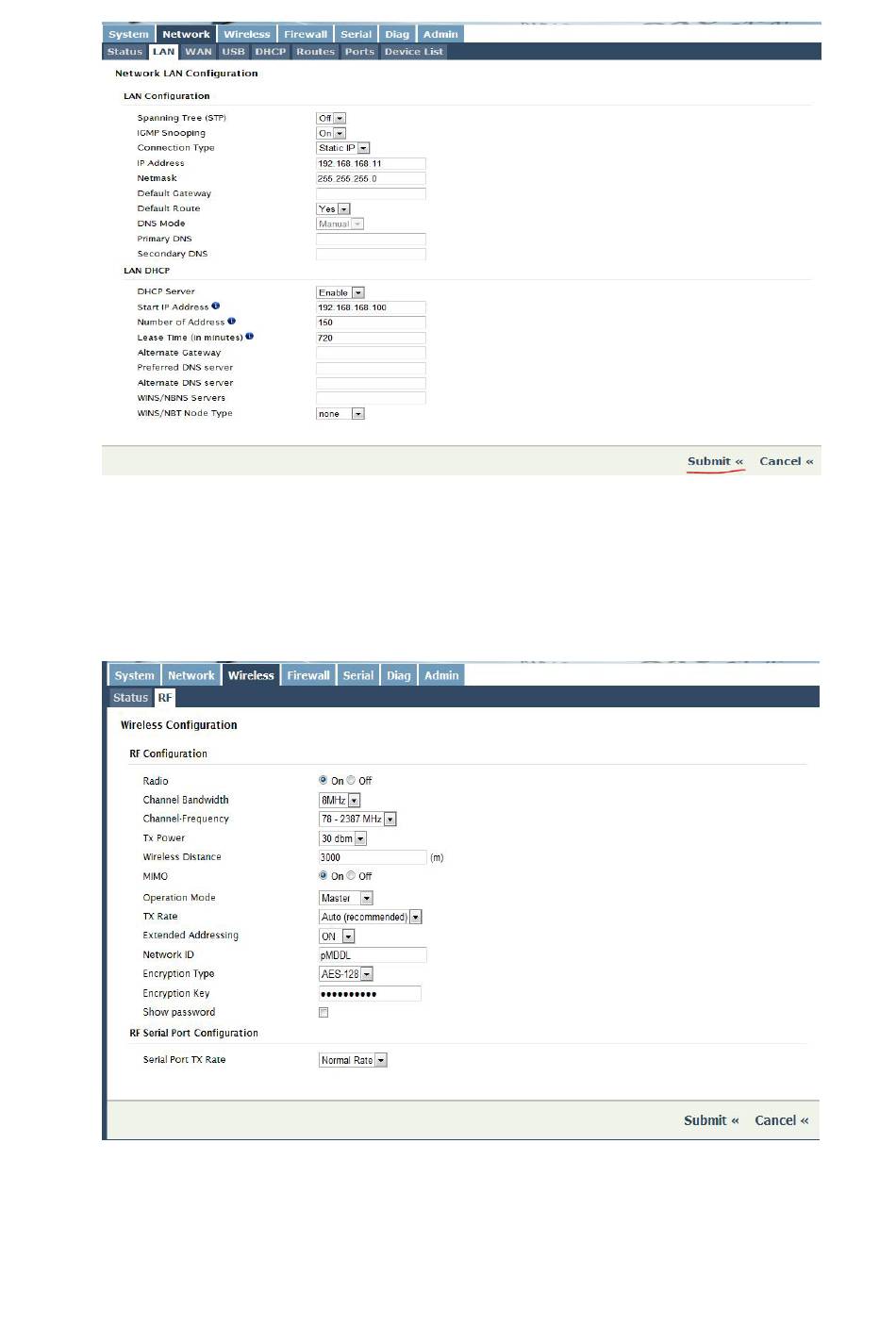

7)After log in, pls select wireless->RF, pls refer to the below parameters to do
configuration and then click submit. (choose the frequency and transmission power based
on your requirement)
Note！Channel Bandwidth, Channel Frequency, Network ID of the airborne end and
ground terminal need to be configured the same. In this way, the communication can be
established.
8) Click Serial->Settings, choose Date，after parameters configuration, click submit. The
baud rate of this port must be 115200. It cannot be modified, otherwise the
communication will be affected.
- 35 -
