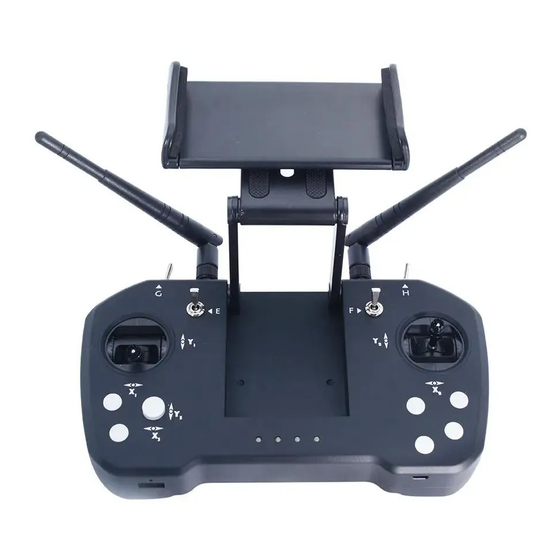

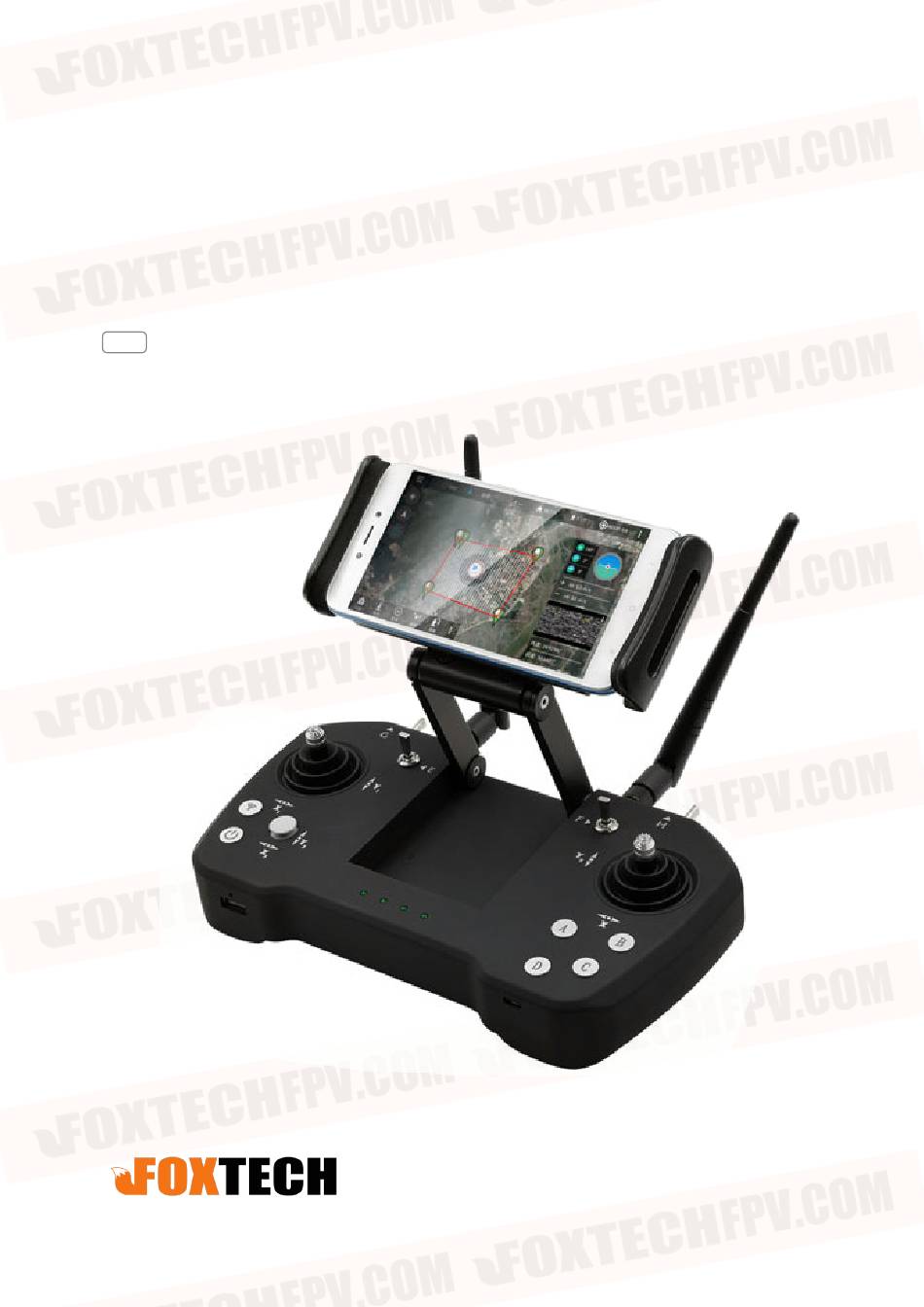

  • Page 1 12-Channel Radio Controller User Manual 2019.05 V1.0...

  • Page 2: Table Of Contents

    Connect to cellphone APP Receiver / Camera / FC Connection and Setting Connect to Cellphone to Display the Video How to Upgrade the Firmware of T12 How to Switch Between Left and Right Hand 2019 FOXTECH All Rights Reserved ©...

  • Page 3: Overview

    T12 12-Channel Radio Controller User Manual Overview Product Characteristics 1. Dual-antenna dual-module redundancy design, combined with algorithm control, greatly increases the signal communication capability.FHSS technology, omni gain antenna, complete operation and configuration of aircraft and camera within communication distance. 2. Reserved TX, RX, return flight data to the ground remote control. Maximize the use of 2.4G wireless Bandwidth, which solves the shortcomings of instability and non-interference in the 433 and 915 bands.

  • Page 4: Specification

    T12 12-Channel Radio Controller User Manual Specification Specification: 490g(controller), 26g(receiver),15.6g(camera) Weight Channel 3.7V Working Voltage 170mA Working Current 4000mAh Battery Capacity 25hours Endurance 2.400GHz-2.4833GHz Frequency FHSS Communication Technology 10km Transmission Distance SBUS, PWM, I2C Signal Output Mini Camera: 720P@30 Resolution 30.2x29.8x26.8mm...

  • Page 5: Diagram

    T12 12-Channel Radio Controller User Manual Diagram 2019 FOXTECH All Rights Reserved ©...

  • Page 6: Using Environmental Conditions

    Working Conditions Power supply method and notes. The T12 series ground unit has built-in integrated rechargeable lithium battery, which is compatible with the market standard micro USB interface 5v/1.5A power adapter (such as mobile phone, camera and other digital products USB charger) for charging.

  • Page 7: Operation

    T12 12-Channel Radio Controller User Manual Operation Preparation and Checking Before Use 1. Always check that it the remote control is fully charged before use. 2. Please check if the antenna is placed as required before use. 3. For the first time, please ensure that the firmware has been upgraded to the latest version.
  • Page 8 T12 12-Channel Radio Controller User Manual Faulty Operation Antennas can not cross. Cannot be parallel to the remote controller. 2019 FOXTECH All Rights Reserved ©...
  • Page 9 T12 12-Channel Radio Controller User Manual Uav Operation Diagram Proper Operation Away from the center plate,vertically upward, no shielding. Fixed under the arms. 2019 FOXTECH All Rights Reserved ©...
  • Page 10 T12 12-Channel Radio Controller User Manual Faulty Operation Can not place in the center of the plate. Antenna can not be close to the CF and metal. Antennas can not cross, and can not be placed in the middle of the tank.

  • Page 11: Connect To Cellphone App

    4. Power on the remote controller (short press + long press), enter the phone system settings interface to open Bluetooth, search for Bluetooth: T12-XXX. The pairing code is 1234. 5. Open the device assistant APP, as shown below(Figure 1). Adjust parameter of remote controller---- used to adjust the channel forward and reverse, rudder amount, channel binding, runaway protection value.

  • Page 12: Receiver / Camera / Fc Connection And Setting

    T12 12-Channel Radio Controller User Manual 7. Parameter saving, parameter loading (Figure 3, 4, 5). In order to change the drone model, or for batch configuration. We can save the parameters inside the APP. Each time you load a parameter and write to the remote controller, you can quickly configure it.

  • Page 13: Connect To Cellphone To Display The Video

    T12 12-Channel Radio Controller User Manual 2. Short-circuit MODE KEY and GND to enter the frequency pairing mode, the green light flashes quickly turn on the remore controller and will complete the frequency pairing,after the frequency pairing the green light is always on.

  • Page 14: How To Upgrade The Firmware Of T12

    T12 12-Channel Radio Controller User Manual How to Upgrade the Firmware of T12 1. Android upgrade Download the device assistant and connect to the remote controller with Bluetooth. Select Bluetooth, refer to the first part. Turn off the remote control, press and hold the “A button”then turn it on, the remote control A light flashes slowly into the download mode.

  • Page 15: How To Switch Between Left And Right Hand

    T12 12-Channel Radio Controller User Manual How to Switch Between Left and Right Hand There are 4 hand types in the device assistant. 2019 FOXTECH All Rights Reserved ©...
  • Page 16 T12 12-Channel Radio Controller User Manual This content is subject to change. Download the latest version from https://www.foxtechfpv.com/t12-12-channel-radio-controller.html For everyday updates, please follow Foxtech Facebook page: https://www.facebook.com/foxtechhobby YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscriber 2019 FOXTECH All Rights Reserved ©...
