Quick Start Procedure - Linear Technology DC1485A Demo Manual

DEMO MANUAL DC1485A

QUICK START PROCEDURE

Connect a clean ±15V power supply to the turret posts at
the bottom of the DC1485A board. Connect J1 to a DC590
USB serial controller using the supplied 14-conductor rib-
bon cable. Connect DC590 to a host PC with a standard
USB A/B cable. Run the evaluation software supplied with
DC590 or download it from www.linear.com/software. The

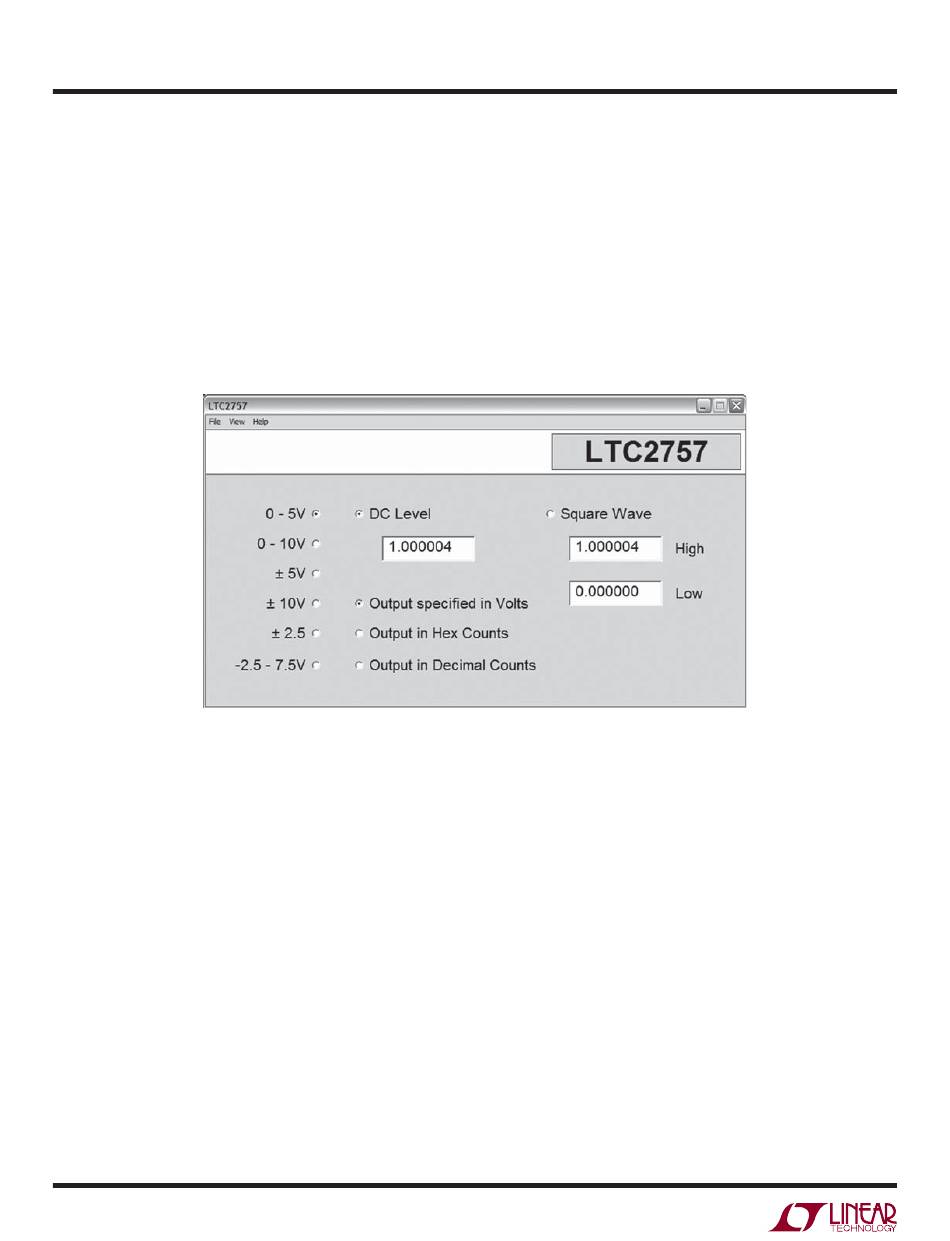

correct control panel will be loaded automatically. The
software automatically sets the LTC2757 outputs according
2
to the entries in the control panel. A square wave option is
available to test settling time. MSPAN jumper should be in
the lower position if software span control is desired.
Additional software documentation may be available
from the Help menu item, as features may be added
periodically.
