DESCRIPTION
Demonstration circuit 1485A features the LTC
18-bit SoftSpan™ I
DAC with ±1LSB maximum INL. This
OUT
device features six programmable output ranges: 0V to 5V,
0V to 10V, ± 5V, ±10V, ±2.5V and –2.5V to 7.5V. The demo
circuit allows all of the LTC2757's features to be exercised,
including system-level gain and offset adjustments.
RIBBON CABLE
CONTROLLER
®
2757A single
TO DC590

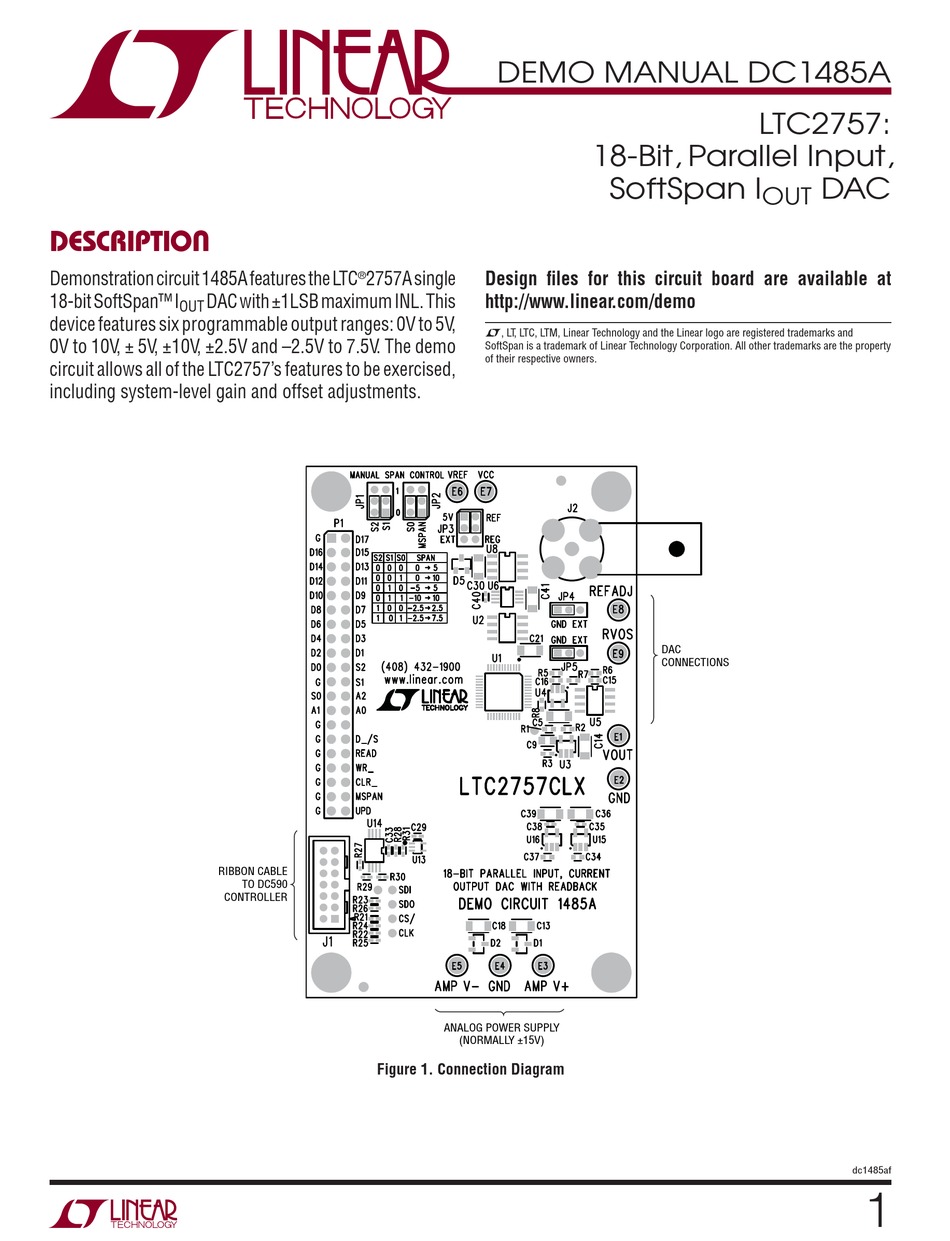

Figure 1. Connection Diagram
