GE SE-100E Instructions And Renewal Parts page 18

1. Primary Blade Stop
2. Primary Contact Fingers
3. Primary Contact Blade
4. Primary Spring
5. Booster Spring
6.
Oper atin g Mech anis m
1.
Opera ting Hub
1. Spring Stop Bolt
lA. Spring Stop Bolt
2. Spring Stop
3. Driving Crank
4.
Hole for Spring
Blocking Pin
5. Driving Lug
6. Buffer Rubber
7. Buffer Stop
8.
Operating Rod
9 . Operating Rod Crank
10. Operating Hub
11. Main Crank Shaft
12.
Maintenance
Fig. 1
Handle

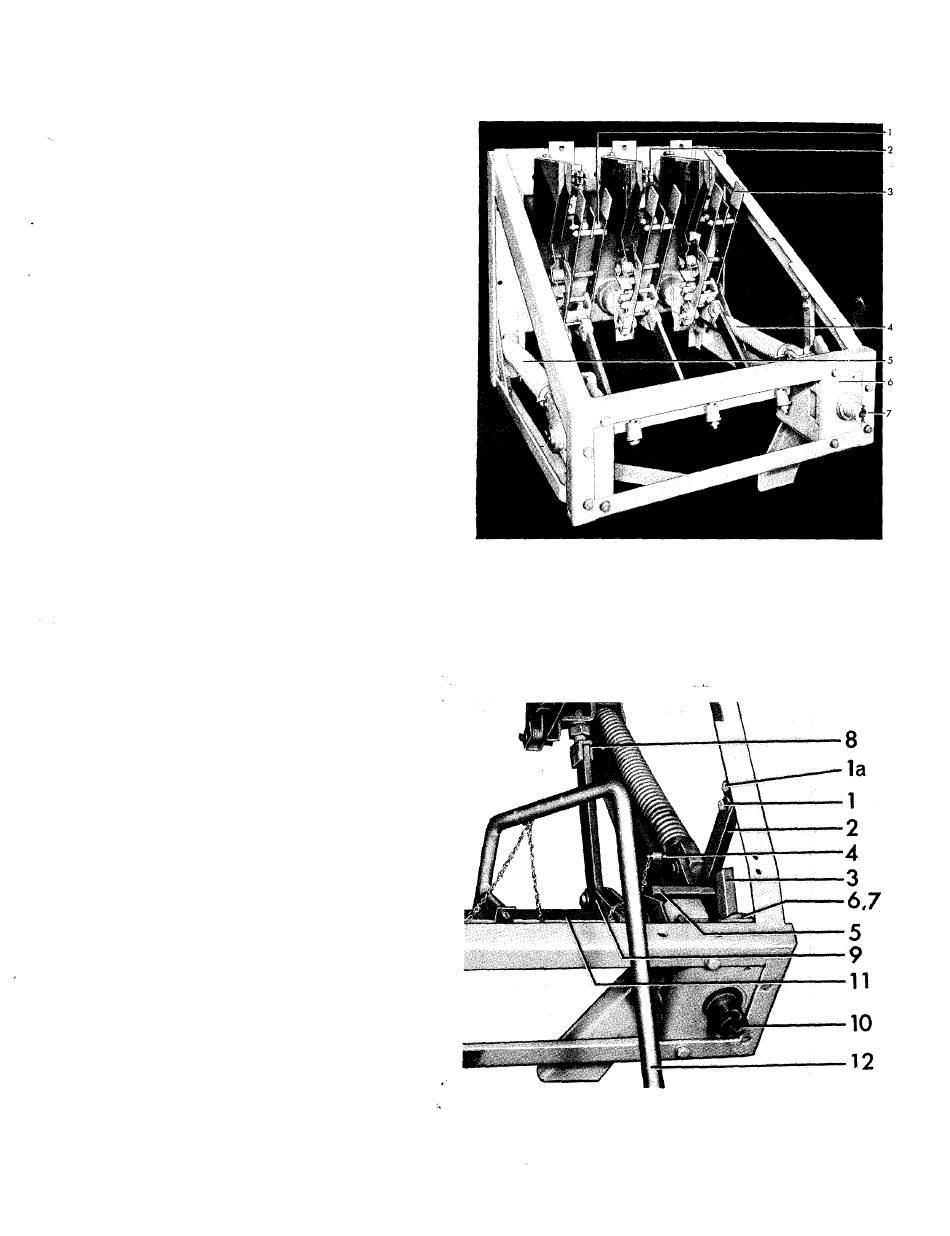

SE-lOOS Switch Partially O pen
Fig. 2 Spring Drive Mechanism
