SP PLUS Energy Centre
Installation Notes
Installing the DC Switchboard
Dimensions (mm) – 410(w) x 750(h) x 75(d).
Mounting hole size max – M6
Weight – 17kg (including optional solar regulator)
Tools – 7mm Nut Driver

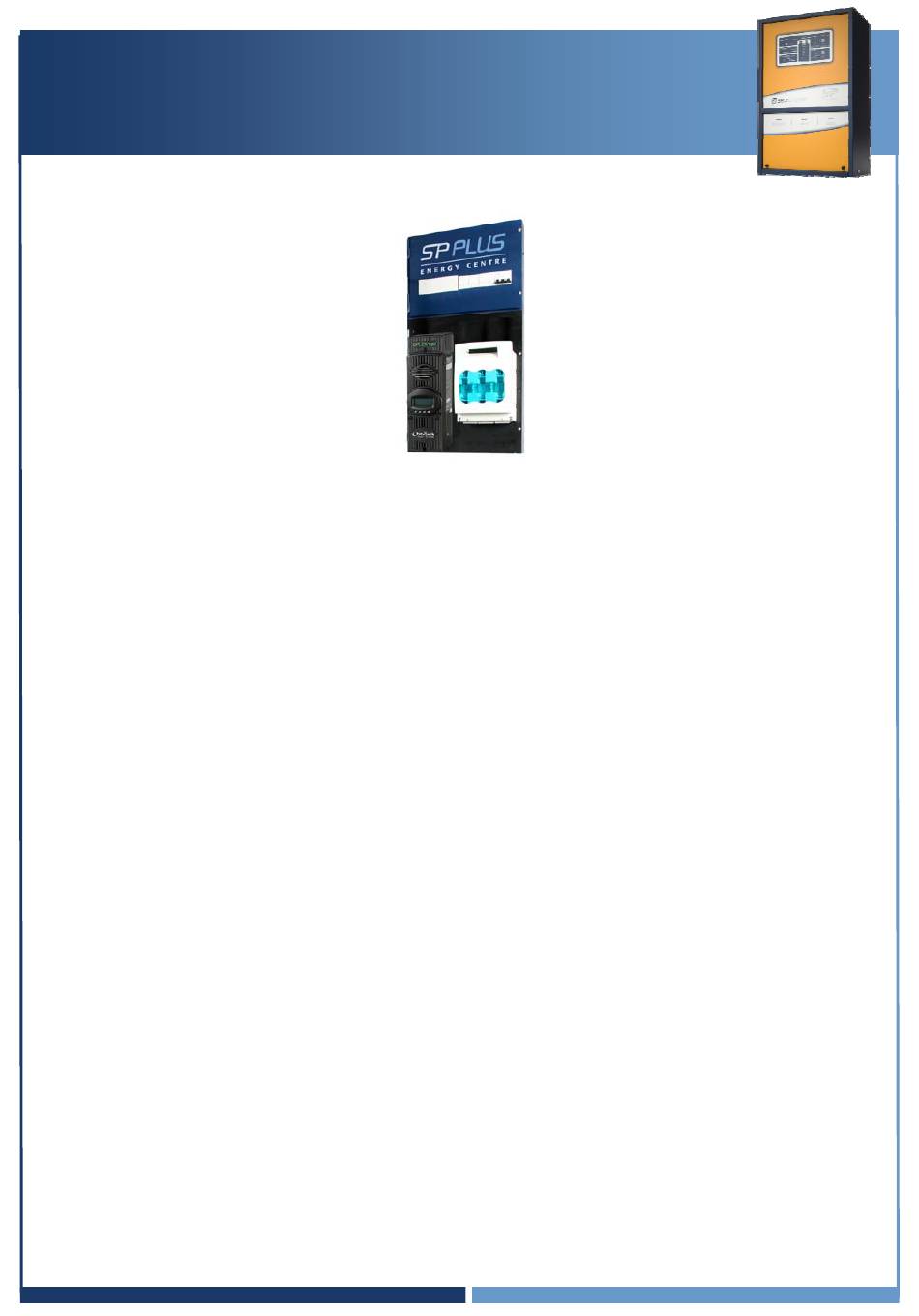

The DC Switchboard consists of two compartments both with LHS hinged doors for access. The
top compartment is for solar combining and switching. The lower half is for the battery fusing
and regulator mounting. The lower door, when assembled, can only be opened with the DC
fuse switch removed. All wiring is contained within the enclosure.
The DC Switchboard should be mounted allowing for the SP PRO to be mounted ~ 250mm to
the left.
C E
ABLE NTRY
The DC switchboard has the provision for cables to enter from the rear or top via knockouts. If
required, remove knockouts to suit installation.
P
LACEMENT
The DC switchboard is to be mounted to a suitable solid surface with no particular temperature
requirements. Four key-holed mounting points are provided –
