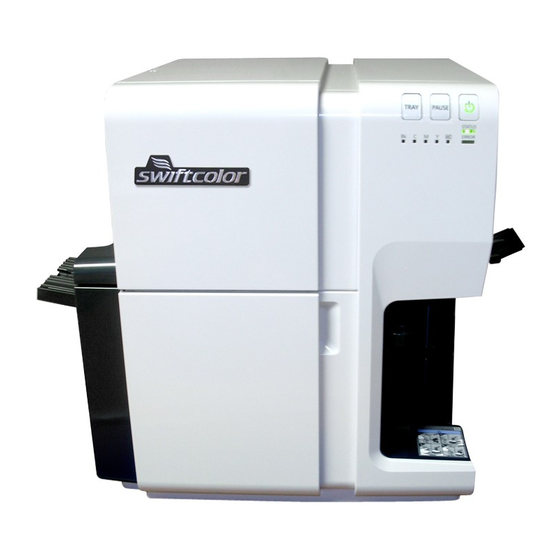

SwiftColor SCC-4000D Installation Procedures Manual
  1. Manuals
  2. Brands
  3. SwiftColor Manuals
  4. Printer
  5. SCC-4000D
  6. Installation procedures manual

SwiftColor SCC-4000D Installation Procedures Manual

Hide thumbs Also See for SCC-4000D:
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
SWIFTCOLOR SCC-4000D Installation Procedure
PRINTED IN JAPAN
PUB No. 4Y8-8055-010
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-4000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SwiftColor SCC-4000D

Summary of Contents for SwiftColor SCC-4000D

  • Page 1 ENGLISH SWIFTCOLOR SCC-4000D Installation Procedure PRINTED IN JAPAN PUB No. 4Y8-8055-010 ENGLISH...

  • Page 2: How To Read This Guide

    How to Read This Guide Check Before Installation Installation requirements are listed below. When Using the Included Parts When the parts supplied with this product are required to be used in the installation Checking the Power Supply procedure, the following symbol indicating that the parts are supplied with the product is shown in the illustration.

  • Page 3: Installation Precautions

    Checking the Installation Space Installation Precautions 1. The minimum space required for installation is shown below. When installing Printer, observe the following precautions: 1) Imaging faults can result due to dew condensation that occurs when the machine is moved 100mm or more from a cold place to a warm place.

  • Page 4: Checking The Included Parts

    Checking the Included Parts [1] 1 x Printhead Unit [2] 4 x Ink Tank (1 Ink Tank for each color) [3] 1 x Power Cord(for 120V series) [4] 1 x Power Cord(for 230V series) [5] Spare Paper [6] 1 x Service Tool Unit [7] 1 x Screw T-1-1 CAUTION:...

  • Page 5: Unpacking Procedure

    Unpacking Procedure 2) Remove Accessory Box , and then remove Upper Pads. NOTE: Printer is secured using fixing tape and cushioning materials to protect it against the vibrations and shocks applied during transportation. By following the procedure described below, remove all pieces of fixing tape and cushioning materials before installing Printer.
  • Page 6 4) Holding the handles at the bottom of Printer, lift Printer to take it out from the package 6) Open Ink Tank Door, and open Upper Unit while holding Upper Unit Open Lever. base. F-1-8 F-1-6 CAUTION: 7) Remove fixing tapes and cushioning materials from inside of Printer. •...

  • Page 7: Installation Procedure

    Installation Procedure Mounting Printhead Unit 3) Raise the inner hook to detach Maintenance Cover. 1) Open Ink Tank Door, and open Upper Unit while holding Upper Unit Open Lever. F-1-12 F-1-10 4) Close Upper Unit. 2) Remove screw securing Maintenance Cover. •...
  • Page 8 5) Remove the fixing tape, remove Print Module Cover, and then open Lower Printhead 6) Remove Blade Cleaner. Release Lever. F-1-16 F-1-14 7) Take out included Printhead from the package. F-1-17 F-1-15...
  • Page 9 8) Remove the cover and cushioning materials. 10) Take Printhead Unit out of the case. F-1-18 F-1-20 9) Remove the 4 caps. CAUTION: Do not touch the circuit boards and Printhead face. An ink injection problem can occur. F-1-19 F-1-21...
  • Page 10 11) Put Printhead Unit on the rail guide, and then insert it into Printer until it stops. 12) Mount Blade Cleaner. F-1-22 NOTE: Skewering Shaft must be on Printhead Guide Rails. F-1-24 13) Close Lower Printhead Release Lever and Upper Printhead Release Lever. CAUTION: •...
  • Page 11 14) Check that numbers [1] , [2], and [3] indicated on Print Module are visible. 16) Attach Print Module Cover to Print Module. F-1-28 F-1-26 NOTE: If any one of numbers [1] , [2], and [3] is invisible, Printhead Release Lever ( [1] ,[2] ) has not been closed or Blade Cleaner ( [3] ) has not been mounted.
  • Page 12 17) Install included Service Tool Unit. 19) Attach Maintenance Cover to Upper Unit. • 1 screw F-1-30 F-1-32 18) Open Upper Unit. 20) Close Upper Unit. F-1-31 F-1-33...
  • Page 13 Loading Ink Tanks 3) Take out included Ink Tanks from the packages, and then remove the cushioning materials. 1) Open Ink Tank Door. F-1-36 F-1-34 2) Open Ink Tank Lever for each color while pushing it downward. F-1-35...
  • Page 14 4) Slowly insert Ink Tank as far as it will go. 6) Set the rest of Ink Tanks and close Ink Tank Door. CAUTION: Ink Tank cannot be loaded properly if it is inserted in a wrong Ink Tank Slot. F-1-39 F-1-37 5) Close Ink Tank Lever.
  • Page 15 Initial Ink Loading 1) Several types of Power Cords come with Printer. Use appropriate Power Cord for the power supply used at the installation site. NOTE: • Initial ink loading takes about 25 minutes. • Ink loading time might be changed due to the design change. CAUTION: •...

  • Page 16: Operation Check

    Operation Check After completion of installation, print any image, that is usually used, following the procedure below, and then check that the printing result is free from faint print and color deviation. 1. Install software in Computer with reference to the included Start Guide. Load printing paper that is usually used in Printer.
