SwiftColor SCC-2000D Setup Manual

Hide thumbs Also See for SCC-2000D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Basic Operation Manual, User Manual

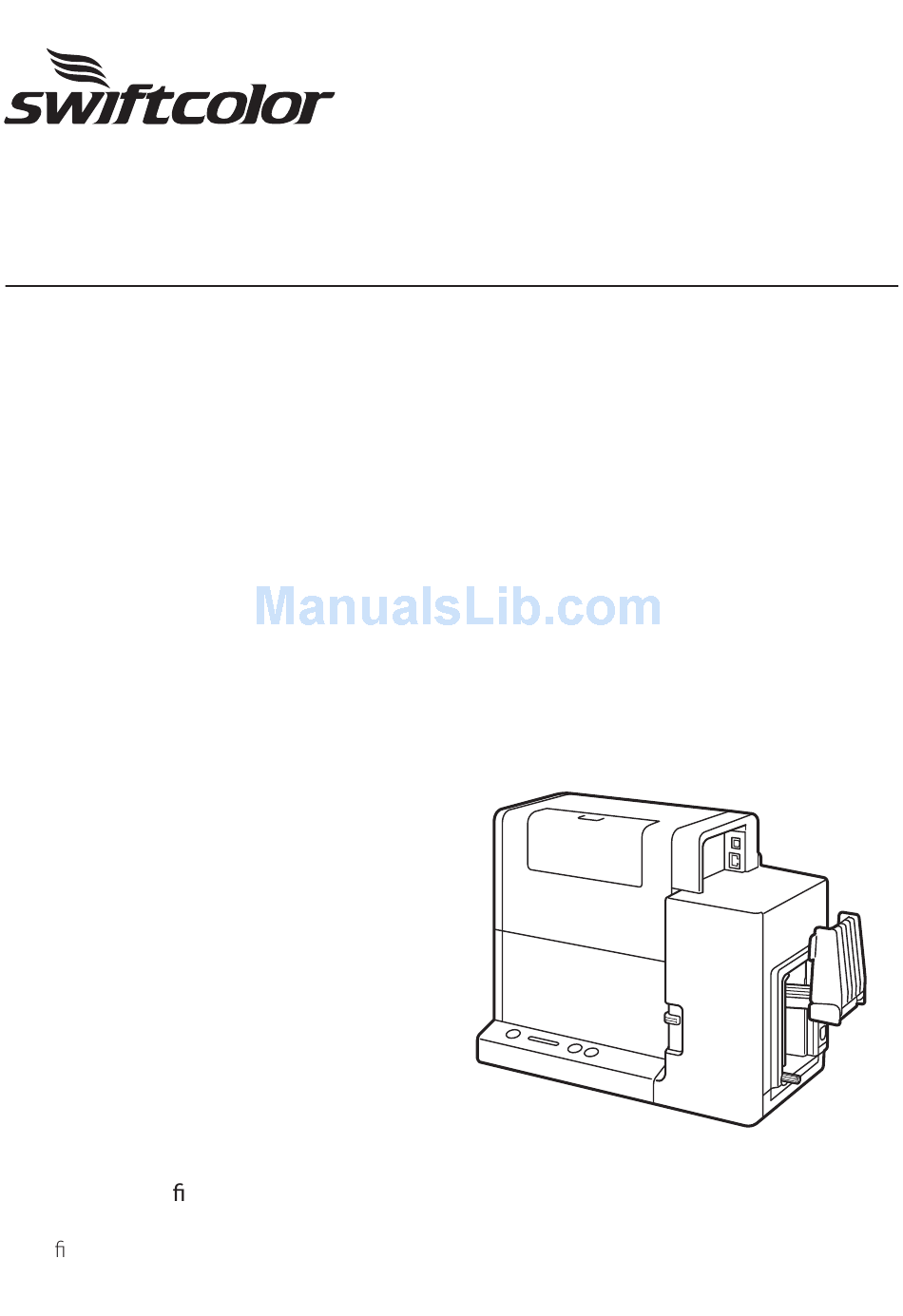

SCC-2000D

Setup Guide

Read this guide rst.
Please read this guide before operating this product.
After nish reading this guide, store it in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-2000D and is the answer not in the manual?

Questions and answers

Related Manuals for SwiftColor SCC-2000D

Summary of Contents for SwiftColor SCC-2000D

  • Page 1: Setup Guide

    SCC-2000D Setup Guide Read this guide rst. Please read this guide before operating this product. After nish reading this guide, store it in a safe place for future reference.
  • Page 2 ■ ■ Conventions WARNING Indicates■a■warning■concerning■operations■that■may■lead■to■death■or■injury■to■persons■if■not■performed■correctly.■ To■use■the■machine■safely,■always■pay■attention■to■these■warnings. CAUTION Indicates■a■caution■concerning■operations■that■may■lead■to■injury■to■persons■if■not■performed■correctly.■To■use■the■ machine■safely,■always■pay■attention■to■these■cautions. IMPORTANT Indicates■operational■requirements■and■restrictions.■Be■sure■to■read■these■items■carefully■to■operate■the■machine■ correctly,■and■avoid■damage■to■the■machine■or■property. NOTE Indicates■a■clarification■of■an■operation,■or■contains■additional■explanations■for■a■procedure.■Reading■these■notes■ is■highly■recommended. Indicates■an■operation■that■must■not■be■performed.■Read■these■items■carefully,■and■make■sure■not■to■perform■the■ described■operations. ■ ■ Sample■Screens The■sample■screens■of■the■printer■driver■settings■in■this■guide■were■created■with■Swiftcolor■SCC-2000D■in■Windows■7. ■ ■ Trademarks •■ Microsoft■and■Windows■are■trademarks■of■Microsoft■Corporation■in■the■United■States■and/or■other■countries. •■ Other■brand■and■product■names■may■be■trademarks■or■registered■trademarks■of■their■respective■companies. ■ ■ Abbreviations Throughout■this■document■the■following■abbreviations■are■used■in■text. •■ Microsoft■Windows■8■is■abbreviated■as■“Windows■8” •■ Microsoft■Windows■7■is■abbreviated■as■“Windows■7” •■ Microsoft■Windows■is■abbreviated■as■“Windows”...

  • Page 3: Setup Flow

    Setup■Flow Step1■■Preparation■for■Installation■(P.■3■) Step2■■Installing■Printer■(P.■7■) Step3■■■Installing■Ink■Tanks■(P.■9■) Step4■■Connecting■Power■Cord■(P.■12■) Step5■■Turning■on■Printer■(P.■13■) Step6■■Installing■Software■(P.■14■) ⿟ ■ USB■Connection■(P.■15■) ⿟ ■ LAN■Connection■(P.■23■) ⿟ ■ Installing■User’s■Guide■(P.■34■) End■of■Setup...

  • Page 4: Step1.■ P Reparation■For■Installation

    Step1.■ P reparation■for■Installation Checking■Installation■Site. Check■the■following■conditions■to■determine■the■installation■site. •■ Installation■space 310 mm 400 mm 180 mm 860 mm •■ Temperature■and■humidity Temperature:■15■degrees■Celsius■to■30■degrees■Celsius Humidity:■10%■to■80%■(no■condensation) •■ Power■supply Use■a■1.5A■or■higher■outlet■cable. WARNING •■ Do■not■place■the■following■objects■on■the■printer: ■ - Necklaces■and■other■metal■objects. ■ - Cups,■vases,■flowerpots,■and■other■containers■filled■with■water■or■liquids. If■such■an■object■is■brought■into■contact■with■the■electrical■parts■inside■the■printer,■this■could■cause■a■fire■ or■electrical■shock.■If■it■enters■the■inside■of■the■printer,■turn■the■printer■off■immediately,■disconnect■the■ power■plug■from■the■power■outlet■and■contact■the■dealer.
  • Page 5 •■ The■electrical■contacts■inside■the■printer■become■extremely■hot■during■normal■operation.■To■avoid■ causing■a■fire,■never■store■flammable■substances■like■alcohol,■thinner,■etc.■near■the■printer. CAUTION •■ Do■not■install■the■printer■in■the■following■locations: ■ - A■damp■or■dusty■location. ■ - A■location■exposed■to■oily■smoke■or■steam;■e.g.,■near■a■countertop■or■humidifier. ■ - A■location■exposed■to■rain■or■snow. ■ - A■location■exposed■to■salty■wind. ■ - A■location■subject■to■high■temperatures. ■ - A■location■near■open■flames. •■ Do■not■place■the■printer■in■an■unstable■location;■e.g.,■on■a■wobbling■or■inclined■table,■or■a■location■ subject■to■frequent■vibrations.■The■printer■could■fall■down■or■fall■over,■resulting■in■personal■injury. •■ Never■place■the■printer■where■it■will■be■exposed■to■rapid■changes■in■temperature,■such■as■in■direct■ sunlight,■near■an■air■conditioner,■or■in■a■car■on■a■hot■day.■This■could■cause■a■fire■or■damage■to■the■printer.
  • Page 6 Open■the■shipping■box■and■check■that■all■of■the■following■accessories■are■supplied■with■ the■printer. •■ Printer •■ Ink■tanks •■ AC■adapter •■ Power■cord■for■120V■series •■ Power■cord■for■230V■series •■ Setup■Guide■(this■document) •■ Basic■Operation■Guide •■ Printer■Software■CD-ROM IMPORTANT •■ 2■types■of■Power■Cords■come■with■Printer.■Use■appropriate■Power■Cord■for■the■power■supply■used■at■the■ installation■site. NOTE •■ Keep■the■shipping■box,■packing■materials■and■protectors■for■future■use,■for■example,■storage■or■transportation■of■ the■printer. •■ If■any■accessory■is■missing■or■damaged,■contact■the■dealer. •■ USB■and■LAN■cables■are■not■supplied■with■the■printer.■Prepare■commercially■available■USB■and■LAN■cables■ suitable■for■the■printer. •■ Use■a■Category■5■or■better■twisted■pair■LAN■cable.
  • Page 7 •■ Cyan■ink■may■be■absorbed■in■the■ink■absorber■(A)■inside■the■ transport■unit.■This■is■due■to■ink■used■in■the■manufacturing■ process■and■does■not■signify■a■printer■problem. •■ To■maintain■print■quality,■this■product■absorbs■excessive■ink■ produced■during■printing■in■an■ink■absorber.■As■such,■as■you■use■ the■printer,■ink■will■gradually■adhere■to■the■ink■absorber.

  • Page 8: Step2.■ I Nstalling■Printer

    Step2.■ I nstalling■Printer Take■out■the■printer. 1.■ Open■the■plastic■bag. 2.■ Take■out■the■printer■from■the■plastic■bag. ⿟ ■ As■shown■in■the■figure,■securely■hold■the■printer■ with■both■hands■when■taking■out■the■printer. CAUTION •■ Securely■hold■the■printer■with■both■hands■to■avoid■dropping■the■ printer. •■ Do■not■hold■the■feeder■lift■tray.■Doing■so■may■break■the■tray■causing■ to■drop■the■printer.■This■may■lead■to■injury. Remove■all■pieces■of■orange■tape.
  • Page 9 Remove■all■orange■protectors. 1.■ Open■the■ink■tank■cover. 2.■ Move■the■lock■lever■(A)■in■the■direction■of■ the■arrow. 3.■ Remove■the■protectors. ⿟ ■ Press■and■raise■the■lock■knob■(B)■to■remove■the■ protector. ⿟ ■ Do■not■discard■the■protectors■and■store■them■ along■with■the■shipping■box■and■other■items■ from■the■time■of■purchase.■It■may■be■needed■for■ shipping■the■printer. IMPORTANT •■ Be■careful■not■to■stain■the■clothes■or■the■area■around■the■printer■with■the■ink■adhered■on■the■protectors.
  • Page 10 Step3.■ I nstalling■Ink■Tanks Have■ink■tanks■on■hand 1.■ Take■out■each■ink■tank■from■the■plastic■bag. 2.■ Remove■the■orange■protective■cap■as■shown■ in■the■figure. ⿟ ■ Remove■the■protective■cap■while■holding■it■so■that■ the■fingers■are■not■stained■with■ink. ⿟ ■ Do■not■discard■the■protective■caps■and■store■them■ along■with■the■shipping■box■and■other■items■from■ the■time■of■purchase.■It■may■be■needed■for■shipping■ the■printer. IMPORTANT •■ Do■not■press■on■the■sides■of■the■ink■tank.■Ink■could■come■out.
  • Page 11 •■ Do■not■touch■the■ink■tank■electric■contacts.■The■printer■could■fail■in■ operation/printing. •■ After■removing■the■protective■cap,■do■not■touch■the■ink■supply■opening.■ Ink■could■not■be■supplied■properly. •■ After■removing■the■protective■cap,■do■not■shake■the■ink■tank■with■the■ink■ supply■opening■down.■Ink■leaking■from■the■ink■supply■opening■could■stain■ your■clothes■or■the■area■around■the■printer. •■ Be■careful■not■to■stain■the■clothes■or■the■area■around■the■printer■with■the■ink■adhered■on■the■removed■protective■ cap. Install■each■ink■tank■in■the■printer■according■to■the■color■indicated■on■the■label. 1.■ Insert■the■ink■tank■in■the■slot■in■the■printer■ with■the■ink■supply■opening■down. ⿟ ■ Before■installing■each■ink■tank,■confirm■the■ink■ color■according■to■the■label. 2.■ Press■on■the■top■of■the■ink■tank■until■the■ ink■tank■clicks.
  • Page 12 3.■ Install■other■ink■tanks■in■the■same■ manner. ⿟ ■ Before■installing■each■ink■tank,■confirm■the■ink■ color■according■to■the■label. ⿟ ■ Installation■positions■of■the■ink■tanks■are■as■ shown■in■the■figure. IMPORTANT •■ Install■the■ink■tanks■at■correct■positions■according■to■the■labels.■ If■any■ink■tank■is■installed■at■a■wrong■position,■the■printer■cannot■print.■In■addition,■Ink■colors■could■be■mixed,■ resulting■in■a■printing■failure. •■ If■any■one■of■the■ink■tanks■is■not■installed,■the■printer■cannot■print.■Be■sure■to■install■all■ink■tanks. Close■the■ink■tank■cover.

  • Page 13: Step4.■ C Onnecting■Power■Cord

    Step4.■ C onnecting■Power■Cord Connect■the■power■cord■to■the■printer. 1.■ Joint■the■connector■of■the■power■cord■to■ the■inlet■of■AC■adapter. 2.■ Connect■the■plug■of■AC■adapter■to■the■ printer■inlet. Insert■the■power■plug■of■the■power■cord■in■the■outlet. CAUTION •■ When■disconnecting■AC■adapter■from■the■printer,■be■sure■to■remove■the■power■plug■from■the■power■ outlet■first.■If■the■connection■terminal■of■AC■adapter■is■brought■into■contact■with■any■metallic■part■when■ the■power■plug■is■still■connected■to■the■power■outlet,■a■fire■or■an■electric■shock■could■result.
  • Page 14 Step5.■ T urning■on■Printer Press■Power■Key. ⿟ ■ When■the■printer■is■turned■on,■the■feeder■lift■ tray■lowers. ⿟ ■ When■the■printer■is■turned■on,■initial■ink■filling■ starts.■It■takes■about■15■minutes■to■finish■the■ initial■ink■filling. CAUTION •■ When■the■feeder■lift■tray■is■moving,■do■not■touch■it.■Also,■do■not■insert■hand■or■place■objects■below■the■ tray.■Doing■so■can■cause■injury■or■malfunction. IMPORTANT •■ When■Status■Lamp■(green)■is■blinking,■the■printer■is■performing■the■initial■ink■filling.■Keep■the■following■ precautions■until■Status■Lamp■(green)■stops■blinking■and■lights■up: ■ - Do■not■turn■off■the■printer. ■ - Do■not■open/close■the■ink■tank■cover■and■the■transport■unit■lever. ■ - Do■not■operate■other■controls■and■components■of■the■printer. If■the■above■precautions■are■not■kept,■initial■ink■filling■may■have■to■be■performed■again.■In■such■a■case,■turn■off■ the■printer■and■turn■it■on■again.■Initial■ink■filling■will■start■again. •■ After■completion■of■the■initial■ink■filling,■go■through■the■step■described■in■Step■6,■“Installing■Software. ” NOTE •■ Initial■ink■filling■consumes■ink■to■allow■the■printer■to■be■ready■for■printing.

  • Page 15: Step6.■ I Nstalling■Software

    Step6.■ I nstalling■Software Install■the■printer■driver■in■the■computer. The■printer■can■be■connected■to■the■computer■through■USB■connection■or■network■connection■(TCP/IP).■ Select■a■connection■method■suitable■for■the■operating■environment.■For■the■installation■procedure,■see■the■ following■pages: ● ● To●connect●the●printer●to●the●computer●with●USB●cable:● USB●Connection●(P.15) ● ● ● T o●connect●the●printer●to●the●computer●via●LAN●and●use●the●printer●in●the●network●environment:● LAN●Connection●(P.23) ■ ■ Operating■Environment The■printer■driver■and■User’s■Guide■can■be■used■in■the■following■environment: •■ Operating■system■(OS) Windows■8■■(64bit/32bit) Windows■7■■(64bit/32bit) •■ Computer Computer■allowing■either■of■the■above■operating■systems■to■run •■ Free■spaces■on■the■hard■disk Free■spaces■on■the■hard■disk■which■are■necessary■for■installing■the■followings■(including■the■spaces■used■ temporarily) Printer■driver:■30■MB■or■more User’s■Guide:■15■MB■or■more...

  • Page 16: Usb Connection

    ■ ■ USB■Connection Turn■off■the■printer. 1.■ Press■and■hold■Power■Key■until■Status■Lamp■ goes■out. ⿟ ■ When■Power■Lamp■stops■blinking,■the■printer■is■ turned■off. IMPORTANT •■ Do■not■connect■the■printer■to■the■computer■with■USB■cable■at■this■time. Start■the■computer■and■log■on■to■the■computer■as■a■user■with■administrative■privileges. IMPORTANT •■ Log■on■to■the■computer■as■a■user■with■administrative■privileges. •■ Terminate■in■advance■the■virus■detection■program■and■other■programs■resident■in■the■system,■if■any.
  • Page 17 Set■the■supplied■CD-ROM■in■CD-ROM■drive. 1.■ Set■the■supplied■“Printer■Software■CD- ROM”■in■CD-ROM■drive. ⿟ ■ [Auto■Play]■screen■appears. 2.■ Click■[Run■autoplay.exe]. ⿟ ■ If■[User■Account■Control]■dialog■box■appears,■ click■[Yes]. NOTE •● If●[Auto●Play]●screen●does●not●appear: Carry■out■the■following■operation: 1.■ Double-click■CD-ROM■drive■icon■in■[Computer]■folder. 2.■ Double-click■[autoplay.exe■]. Install■the■printer■driver. 1.■ Click■[Install■the■printer■driver].
  • Page 18 2.■ Click■[OK]. 3.■ Select■[Agree]. ⿟ ■ Confirm■the■software■license■agreement■ carefully. 4.■ Click■[Next]. 5.■ Click■[Next]. ⿟ ■ Confirm■the■cautions.
  • Page 19 6.■ Select■[Connect■via■USB■or■existing■port.] 7.■ Click■[Next]. 8.■ To■change■the■printer■name,■enter■a■new■ printer■name. 9.■ When■not■using■the■printer■as■the■default■ printer,■uncheck■[Set■as■the■default■ printer]■checkbox. 10.■■Click■[Next]. 11.■Check■[Always■trust■software■from■ "CANON■FINETECH■INC. " ]■checkbox. 12.■■Click■[Install].
  • Page 20 When■“Confirmation■of■the■connection■method”■screen■appears,■connect■the■printer■to■ the■computer■with■USB■cable. ⿟ ■ To■select■a■connection■destination■port,■click■ [Select■manually...],■and■then■select■it. ⿟ ■ The■selected■destination■port■can■be■changed■ after■completing■of■installation■of■the■printer■ driver.■ 1.■ Connect■the■printer■to■the■computer■ with■USB■cable. 2.■ Fix■USB■cable■in■place■with■the■clamp■(A). ⿟ ■ When■using■USB■cable■with■a■core,■it■may■not■ be■able■to■fix■the■cable■with■the■clamp.■In■such■ a■case,■allow■some■slack■in■USB■cable,■and■fit■it■ in■the■groove■on■the■rear■panel.
  • Page 21 3.■ Fit■the■USB■cable■in■the■groove■on■the■ printer’s■rear■panel. ⿟ ■ Keep■the■USB■cable■from■getting■in■the■way■of■ the■feeder■lift■tray. IMPORTANT •■ USB■cable■can■be■connected■or■disconnected■when■the■computer■and■the■printer■are■powered■(hot-swappable).■ However,■do■not■insert■or■remove■USB■cable■in■the■following■cases: ■ - When■the■computer■is■being■booted■(before■the■desktop■screen■appears) ■ - When■printing■is■in■progress ■ - When■the■printer■driver■is■being■installed •■ When■disconnecting■USB■cable■while■the■computer■and■the■printer■are■powered,■disconnect■the■connector■on■ the■computer■side■(USB■hub■side).■Wait■for■at■least■5■seconds■before■reconnecting■USB■cable.■Otherwise,■the■ printer■could■malfunction. Turn■on■the■printer. When■the■printer■is■recognized,■installation■starts. NOTE •■ If■the■computer■is■used■in■a■network■environment,■recognition■of■the■printer■may■take■long.
  • Page 22 Click■[Finish]. ⿟ ■ If■the■printer■driver■was■installed■in■the■computer■ to■be■used■as■a■server,■click■[Server■Client■ Registration]. NOTE •● Registering●Server●Client To■register■the■server■client,■click■[Server■Client■Registration]■radio■button.■The■server■client■can■be■registered■ after■completion■of■installation■of■the■printer■driver. 1.■ Start■CD-ROM. 2.■ Click■[Install■the■printer■driver.]. 3.■ Select■[Server■Client■Registration]. 4.■ Click■[OK].
  • Page 23 Remove■“Printer■Software■CD-ROM”,■and■then■click■[Yes]. Rebooting■of■the■computer■starts■automatically. NOTE •■ When■[No]■is■selected,■be■sure■to■restart■Windows■before■using■the■printer. Go■to■“Installing■User’s■Guide. ” ■(P.■34■)

  • Page 24: Lan Connection

    ■ ■ LAN■Connection IMPORTANT Connection■to■the■corporate■LAN■must■be■made■by■a■network■administrator. Check■that■the■printer■is■powered. Start■the■computer,■and■log■on■to■the■computer■as■a■user■with■administrative■privileges. IMPORTANT •■ Log■on■to■the■computer■as■a■user■with■administrative■privileges. •■ Terminate■in■advance■the■virus■detection■program■and■other■programs■resident■in■the■system,■if■any. Set■the■supplied■CD-ROM■in■CD-ROM■drive. 1.■ Set■the■supplied■“Printer■Software■CD- ROM”■in■CD-ROM■drive. ⿟ ■ [Auto■Play]■screen■appears. 2.■ Click■[Run■autoplay.exe]. ⿟ ■ If■[User■Account■Control]■dialog■box■appears,■ click■[Yes]. NOTE •● If●[Auto●Play]●screen●does●not●appear: Carry■out■the■following■operations: 1.■ Double-click■CD-ROM■drive■icon■in■[Computer]■folder. 2.■ Double-click■[autoplay.exe■].
  • Page 25 Install■the■printer■driver. 1.■ Click■[Install■the■printer■driver]. 2.■ Select■the■model■of■the■printer. 3.■ Select■[Agree]. ⿟ ■ Confirm■the■software■license■agreement■ carefully. 4.■ Click■[Next].
  • Page 26 5.■ Click■[Next]. ⿟ ■ Confirm■the■cautions. 6.■ Select■[Connect■via■network].■ 7.■ Click■[Next]. 8.■ Click■[Next].
  • Page 27 9.■ Click■[Next]. ⿟ ■ Confirm■the■instruction■regarding■the■security■ software■which■is■shown■on■the■screen. 10.■Click■[Yes]. ⿟ ■ Confirm■the■instruction■regarding■the■firewall■ settings■which■are■shown■on■the■screen. ⿟ ■ This■screen■may■not■appear■depending■on■the■ current■environmental■settings.
  • Page 28 When■“Preparation■to■use■Swiftcolor■SCC-2000D”■appears,■connect■LAN■cable■to■the■ printer. 1.■ Connect■the■printer■to■the■computer■ with■LAN■cable. 2.■ Fix■LAN■cable■with■the■clamp■(A). 3.■ Fit■LAN■cable■in■the■groove■on■the■ printer’s■rear■panel. ⿟ ■ Keep■LAN■cable■from■getting■in■the■way■of■the■ feeder■lift■tray. 4.■ Click■[Next]. ⿟ ■ It■starts■to■search■this■printer.
  • Page 29 5.■ When■the■name■of■this■printer■is■ displayed,■click■[Next]. IMPORTANT •● If●no●printer●name●is●displayed●after●printer●search If■no■printer■name■is■displayed■after■printer■search,■click■[Find].■■ If■no■printer■name■is■displayed■again,■there■may■be■a■problem■in■the■network■environment.■Contact■the■ network■administrator.■Possible■causes■are■as■follows: ■ - This■printer■and■the■computer■are■installed■on■different■networks,■and■therefore■the■computer■cannot■find■this■ printer. ■ - If■the■IP■address■necessary■for■network■operation■is■not■set,■connection■to■the■network■could■fail. If■no■printer■name■is■displayed■due■to■the■above■reasons,■connect■this■printer■and■the■computer■on■the■same■ network,■and■set■the■IP■address.■After■setting■the■IP■address,■click■[Find]■again. •● To●search●for●the●printer●with●IP●address●specified Click■[Find■with■specified■address...]■button.■ Select■[Find■the■printer■specified■address.]■radio■button■on■the■screen■that■appears,■and■then■enter■MAC■address■ or■IP■address.
  • Page 30 6.■ Set■IP■address■of■the■printer. ⿟ ■ To■change■IP■address:■ Click■[Change■IP■Address]■to■proceed■to■step■7. ⿟ ■ Not■to■change■IP■address:■ Click■[Next]■to■proceed■to■step■11. 7.■ Enter■the■password. 8.■ Click■[OK]. IMPORTANT •■ When■changing■IP■address,■it■is■necessary■to■enter■a■password■for■the■network■setup.■Contact■the■network■ administrator. •■ The■password■can■be■changed■with■the■network■utility■after■completing■of■installation.■(Default■password:■ admin).■For■more■details,■refer■to■“About■the■Network■Utility”■in■User’s■Guide. 9.■ Change■IP■address. ⿟ ■ IP■address■shown■now■is■the■default■IP■address. ⿟ ■ When■there■is■a■device■having■DHCP■server■ function■on■the■network:■ Checking■“Have■an■IP■address■automatically”■ checkbox■gets■IP■address■automatically. 10.■Click■[Next].
  • Page 31 IMPORTANT •■ When■there■is■no■device■having■DHCP■server■function■on■the■network,■note■the■following:■ •■ If■there■are■two■or■more■identical■printers■(this■printer)■on■the■same■network,■IP■address■may■be■duplicated. ■ - Do■not■check■“Have■an■IP■address■automatically”■checkbox. ■ - Change■the■default■IP■address. 11.■Click■[Next]. 12.■Click■[Next]. NOTE •■ ■ T he■network■utility■is■a■tool■for■configuring■network■settings■for■the■printer.■The■network■utility■is■required■when■ changing■IP■address.■Be■sure■to■install■it■(do■not■uncheck■“Install■network■Utility”■checkbox).■For■how■to■use■the■ network■utility,■refer■to■“About■the■Network■Utility”■in■User’s■Guide.
  • Page 32 13.■To■change■the■printer■name,■enter■a■new■ printer■name■in■[Printer]■text■box. 14.■When■not■using■the■printer■as■the■default■ printer,■uncheck■[Set■as■the■default■ printer]■checkbox. 15.■Click■[Next]. 16.■Check■[Always■trust■software■from■ "CANON■FINETECH■INC. " ]■checkbox. 17.■Click■[Install]. 18.■■Click■[Next].
  • Page 33 19.■Click■[Finish]. 20.■Click■[Finish]. ⿟ ■ If■the■printer■driver■was■installed■in■the■ computer■to■be■used■as■a■server,■click■[Server■ Client■Registration].
  • Page 34 NOTE •● Registering●Server●Client To■register■the■server■client,■click■[Server■Client■Registration]■radio■button.■The■server■client■can■be■registered■ after■completion■of■installation■of■the■printer■driver. 1.■ Start■CD-ROM. 2.■ Click■[Install■the■printer■driver.]. 3.■ Select■[Server■Client■Registration]. 4.■ Click■[OK]. Remove■“Printer■Software■CD-ROM, ” ■and■then■click■[Yes]. Rebooting■of■the■computer■starts■automatically. NOTE •■ If■[No]■was■selected,■be■sure■to■restart■Windows■before■using■the■printer. Go■to■“Installing■User’s■Guide. ” ■(P.■34■)
  • Page 35 ■ ■ Installing■User’s■Guide Install■User’s■Guide.■ It■is■possible■to■read■User’s■Guide■by■setting■CD-ROM■in■CD-ROM■drive.■However,■it■is■useful■to■install■it■in■the■ computer. IMPORTANT •■ Log■on■to■the■computer■as■a■user■with■administrative■privileges. •■ Terminate■in■advance■the■virus■detection■program■and■other■programs■resident■in■the■system,■if■any. Set■the■supplied■CD-ROM■in■CD-ROM■drive. 1.■ Set■the■supplied■“Printer■Software■CD- ROM”■in■CD-ROM■drive. ⿟ ■ [Auto■Play]■screen■appears. 2.■ Click■[Run■autoplay.exe]. ⿟ ■ If■[User■Account■Control]■dialog■box■appears,■ click■[Yes].
  • Page 36 Install■User’s■Guide. 1.■ Click■[Install■the■User’s■Guide]. 2.■ Click■[OK]. 3.■ Click■[Yes]. 4.■ To■create■the■shortcut■icon■for■opening■ User’s■Guide,■click■[Yes].
  • Page 37 5.■ Click■[OK]. NOTE •■ To■read■the■installed■User’s■Guide,■double-click■the■shortcut■icon■created■on■the■desktop.■ If■the■shortcut■icon,■was■not■created■select■it■from■[Start]■menu. •■ ■To■read■User’s■Guide■stored■on■CD-ROM,■click■[Read■the■User’s■Guide]. Setup■of■the■printer■has■been■completed. For■how■to■operate■the■printer,■refer■to■the■following■Guides: •● ●For●how●to●set●paper●and●perform●basic●printing: ■ Refer■to■“Basic■Operation■Guide. ” •● ●For●more●details:● ■ Refer■to■“User’s■Guide. ”...
  • Page 38 4Y8-8087-010...
  • Page 40 Contact Information Swiftcolor/Kanematsu KANEMATSU USA INC. 100 Randolph Road, Somerset, NJ 08873, U.S.A. URL: www.swiftcolor.com E-mail: info@swiftcolor.com Kanematsu G.m.b.H Duesseldorf Head O ce Oststrasse 34, D-40211, Duesseldorf, Germany URL : www.swiftcolor.com E-mail: info@swiftcolor.com 4Y8-8087-010 PRINTED IN JAPAN...
