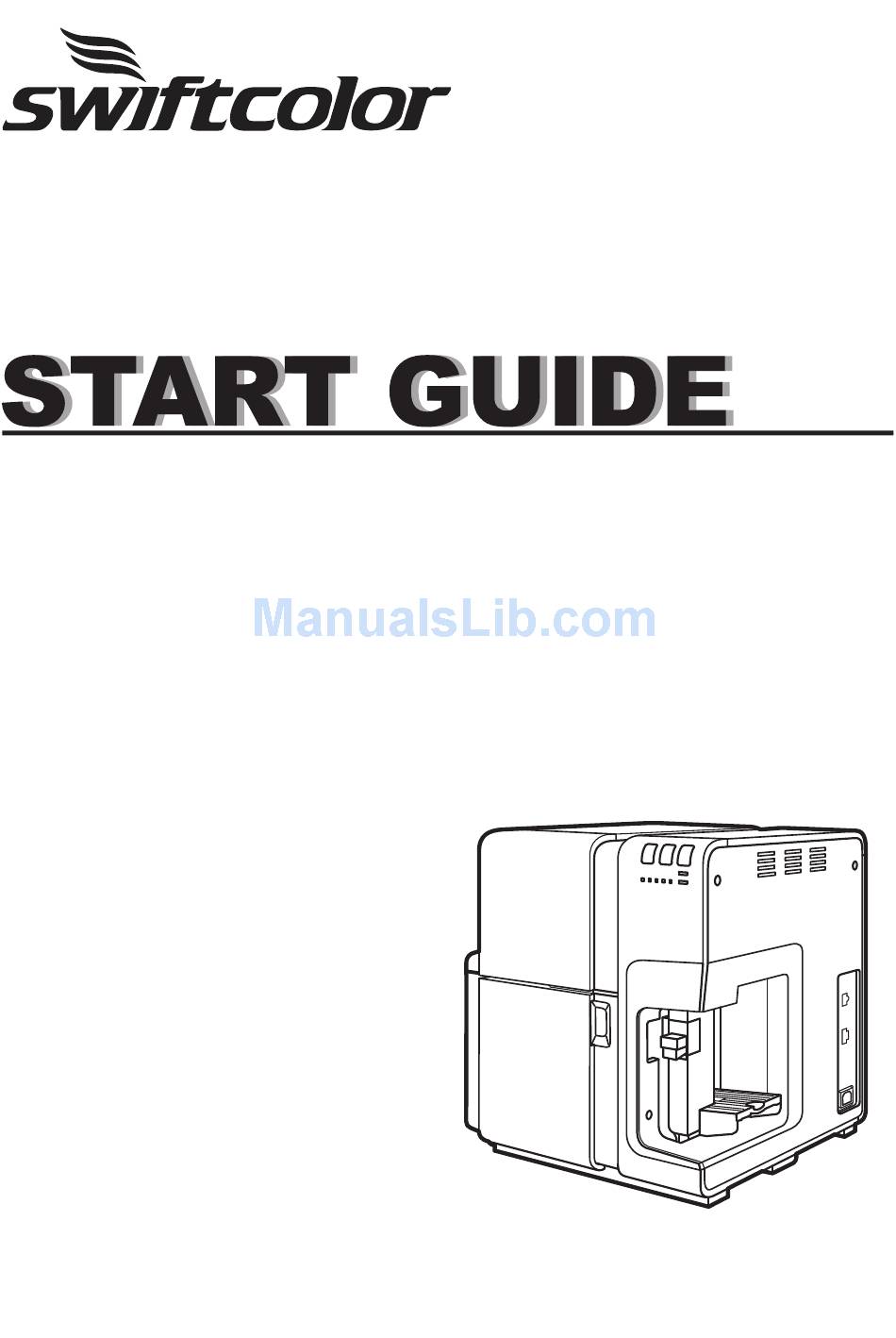

SwiftColor SCC-4000D Start Manual

Hide thumbs Also See for SCC-4000D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
SCC-4000D
Read this guide first.
Please read this guide before operating this product.
After you finish reading this guide, store it in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-4000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SwiftColor SCC-4000D

Summary of Contents for SwiftColor SCC-4000D

  • Page 1 SCC-4000D Read this guide first. Please read this guide before operating this product. After you finish reading this guide, store it in a safe place for future reference.
  • Page 2 About the Instruction Manuals ■ ■ The■instruction■manuals■for■this■printer■consist■of■the■following. ■ ■ ■ P lease■read■before■use■of■the■ printer.■This■START■GUIDE■ contains■precautions■for■safe■ operation■and■instructions■for■ preparations■necessar y■before■ using■this■printer■(such■as■ instructions■on■installing■the■ printer■driver). START■GUIDE■(This■Manual) ■ ■ ■ T he■USER’S■GUIDE■is■in■PDF■ format.■It■contains■specif ic■ instructions■on■operation,■ daily■maintenance,■and■ troubleshooting. ■-■ ■■ A dobe■Reader■must■be■ installed■to■view■USER’S■ GUIDE.■If■Adobe■Reader■is■ not■installed■in■the■computer■ in■use,■download■it■from■the■ USER’S■GUIDE■ homepage■of■Adobe■Systems■...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ������������������������������������������������������������������ 1 Before You Begin ������������������������������������������������������������������� 2 Conventions■................... 2 Illustrations■and■Sample■Screens■ ............2 Trademarks■.................... 2 Abbreviations■..................3 Request■to■the■Customer■............... 3 Legal■Notice■................... 4 Safety Warnings and Precautions ��������������������������������������� 6 Check on the Bundled Items ���������������������������������������������� 13 Before Using the Printer �����������������������������������������������������...

  • Page 4: Before You Begin

    Before You Begin Conventions The■following■marks■are■used■in■this■guide. Indicates■a■warning■concerning■operations■that■may■lead■to■death■or■injury■ Warning to■persons■if■not■performed■correctly.■To■use■the■machine■safely,■always■pay■ attention■to■these■warnings. Indicates■a■caution■concerning■operations■that■may■lead■to■injury■to■persons■ Caution if■not■performed■correctly.■To■use■the■machine■safely,■always■pay■attention■to■ these■cautions. Indicates■operational■requirements■and■restrictions.■Be■sure■to■read■these■ Important items■carefully■to■operate■the■machine■correctly,■and■avoid■damage■to■the■ machine■or■property. Indicates■a■clarification■of■an■operation,■or■contains■additional■explanations■for■ Note a■procedure.■Reading■these■notes■is■highly■recommended. Indicates■an■operation■that■must■not■be■performed.■Read■these■items■carefully,■ and■make■sure■not■to■perform■the■described■operations. Illustrations and Sample Screens The■illustrations■and■the■sample■screens■of■the■printer■driver■settings■in■this■guide■were■created■with■ Swiftcolor■SCC-4000D■in■Windows■7.■The■contents■of■these■printer■driver■screens■and■instructions■ are■essentially■the■same■as■those■for■Windows■Vista■and■Windows■XP;■however,■explanations■are■ provided■when■there■are■minor■differences■in■screen■content■or■procedures. Trademarks ■ ● Microsoft,■Windows■and■Windows■Vista■are■trademarks■of■Microsoft■Corporation■in■the■ United■States■and/or■other■countries. ■ ● Adobe■and■the■Adobe■logo■are■trademarks■of■Adobe■Systems,■Inc. ■ ● Other■brand■and■product■names■may■be■trademarks■of■their■respective■companies.

  • Page 5: Abbreviations

    Before You Begin Abbreviations Throughout■this■document■the■following■abbreviations■are■used■in■text. ■ ● Microsoft■Windows■8■is■abbreviated■as■“Windows■8” ■ ● Microsoft■Windows■7■is■abbreviated■as■“Windows■7” ■ ● Microsoft■Windows■Vista■is■abbreviated■as■“Windows■Vista” ■ ● Microsoft■Windows■XP■is■abbreviated■as■“Windows■XP” ■ ● Microsoft■Windows■is■abbreviated■as■“Windows” Request to the Customer ■ ● Copying■this■guide■or■any■part■of■this■guide■without■permission■is■strictly■forbidden. ■ ● The■specifications■for■this■printer■as■well■as■the■software■provided■with■the■printer■are■subject■ to■change■without■prior■notice. ■ ● We■have■done■our■best■to■make■this■guide■as■complete■and■accurate■as■possible,■and■we■ ask■you■to■contact■to■the■dealer■where■you■purchased■the■printer■if■you■find■any■omissions■or■ mistakes■in■this■document. ■ ● We■can■accept■no■responsibility■for■loss■or■damages■resulting■from■the■use■of■this■printer■or■ its■software;■please■accept■this■before■you■use■the■printer.

  • Page 6: Legal Notice

    Legal Notice ■ Legal Limitations on the Usage of Your Product and the Use of Images ■ ● It■is■illegal■to■reproduce■currency,■bills,■negotiable■securities■and■other■documents■prohibited■ by■law.■Reproduction■of■such■items■may■be■subject■to■criminal■prosecution. ■ ● It■is■illegal■to■reproduce■legal■certificates,■licenses,■and■certain■public■and■private■documents■ prohibited■from■reproduction■by■law.■Reproduction■of■such■items■may■be■subject■to■criminal■ prosecution. ■ ● Please■note■that■intellectual■property■protected■by■copyright■may■not■be■reproduced■without■ the■express■permission■of■the■copyright■holder■except■for■personal■or■household■use■under■ limited■circumstances. ■ Product Name SCC-4000D ■ CE This■equipment■conforms■with■the■essential■EMC■requrements■of■EC■Directive.■We■declare■that■this■ product■conforms■with■the■EMC■requirements■of■EC■Directive■at■nominal■mains■input■230■V,■■ 50■Hz■although■the■rated■input■of■the■product■is■100■to■240■V,■50/60■Hz.■Use■of■shielded■cable■ is■necessary■to■comply■with■the■technical■EMC■requirements■of■EC■Directive.
  • Page 7 Before You Begin ■ FCC (Federal Communications Commission) FCC■Part■15■Compliance NOTE:■This■equipment■has■been■tested■and■found■to■comply■with■the■limits■for■a■Class■B■digital■ device,■pursuant■to■part■15■of■the■FCC■rules.■These■limits■are■designed■to■provide■reasonable■ protection■against■interference■in■a■residential■installation.■This■equipment■generates,■uses,■and■ can■radiate■radio■frequency■energy■and,■if■not■installed■and■used■in■accordance■with■the■instruction■ manual,■may■cause■interference■to■radio■communications.■However,■there■is■no■guarantee■that■ interference■will■not■occur■in■a■particular■installation.■If■this■equipment■does■cause■interference■ to■radio■or■television■reception,■which■can■be■determined■by■turning■the■equipment■off■and■ on,■the■user■is■encouraged■to■try■to■correct■the■interference■by■one■or■more■of■the■following■ measures: •■Reorient■or■relocate■the■receiving■antenna. •■Increase■the■separation■between■the■equipment■and■receiver. •■■ C onnect■the■equipment■into■an■outlet■on■a■circuit■different■from■that■to■which■the■receiver■is■ connected. •■Consult■the■dealer■or■an■experienced■radio/TV■engineer■for■help. CAUTION: Changes■or■modifications■to■this■equipment■not■expressly■approved■by■the■party■ responsible■for■compliance■could■void■the■user’s■authority■to■operate■the■equipment.

  • Page 8: Safety Warnings And Precautions

    Safety Warnings and Precautions Before■using■this■printer,■please■read■this■section■(“Safety■Warnings■and■Precautions”)■thoroughly.■ Warnings■to■need■and■important■matters■are■described■here■to■prevent■damages■to■the■user■and■ other■persons.■Do■not■attempt■to■operate■this■printer■in■any■way■other■than■those■mentioned■in■the■ User’s■Guide. ■ Location Make■sure■that■there■is■sufficient■space■around■the■printer. 415mm 595mm...
  • Page 9 Safety Warnings and Precautions ■ ▪ Never■place■the■printer■where■it■will■be■ Warning exposed■to■rapid■changes■in■temperature,■ such■as■in■direct■sunlight,■near■an■air■ ■ ● ■ N ever■place■items■on■the■printer■such■as■ conditioner,■on■a■hot■day.■ a■flower■vase,■potted■plant,■cosmetics,■ This■could■cause■a■fire■or■damage■to■the■ any■liquid■filled■container,■or■metal■ printer. fasteners.■If■such■items■were■to■fall■on■the■ ■ ▪ Place■the■printer■in■a■location■that■meets■ printer,■this■could■cause■a■fire,■electrical■ the■specified■ranges■of■temperature■and■ shock,■or■damage■to■the■printer. humidity.■If■the■printer■is■either■too■cold■or■ ■ ● ■ T he■electrical■contacts■inside■the■printer■ too■hot,■it■may■not■operate■normally.■ become■extremely■hot■during■normal■ ■Operating■environment:■15■-■30■degrees■ operation.■To■avoid■causing■a■fire,■never■ Celsius■(59■-■86■degrees■Fahrenheit)■RH■10■ store■flammable■substances■like■alcohol,■ -■80%■(with■no■condensation) thinner,■etc.■near■the■printer.
  • Page 10 Safety Warnings and Precautions ■ Power Supply and Power printer■and■the■power■supply■and■ use■a■soft■dry■cloth■to■clean■the■cord■ Cord connectors■and■the■connection■points.■ Leaving■the■cord■plugged■in■and■not■ cleaned■for■a■long■period,■especially■in■ Warning an■area■subject■to■dust,■oil,■and■high■ humidity,■could■cause■the■insulation■ ■ ● ■ T o■avoid■causing■a■fire■or■serious■ material■to■deteriorate. electrical■shock,■always■use■the■power■ cord■provided■with■this■printer.■To■avoid■ Caution a■fire■or■electrical■shock,■do■not■use■an■ extension■cord. ■ ● ■ B e■sure■to■turn■off■the■power■of■printer■ ■ ● ■ T o■avoid■a■fire■or■serious■electrical■shock,■ before■unplugging■the■power■cable. connect■the■printer■power■cord■to■an■...
  • Page 11 Safety Warnings and Precautions ■ Handling the Printer and or■damage■the■printer.■ Supply■Voltage:■AC■100■-■240■V,■50/60■Hz■ Maximum■power:229■W■(max.)■or■less■ Accessories Sleep■mode:■8.5■W■or■less Warning Important ■ ● ■ I f■you■find■a■large■ink■leak,■turn■the■printer■ off■immediately,■disconnect■the■power■ ■ ▪ When■turning■off■the■printer,■press■and■hold■ plug■from■the■power■source,■and■call■ the■[Power]■key■to■turn■it■off■while■the■printer■ for■service.■If■you■continue■to■use■the■ is■in■idle■state. printer,■this■could■cause■a■fire■or■serious■ electrical■shock. ■ ● ■ N ever■clean■the■printer■with■water■or■ any■flammable■liquid■(alcohol,■benzene,■ thinner,■etc.)■either■applied■directly■or■ with■a■cloth.■If■you■accidentally■spill■ liquid■on■the■printer,■turn■the■printer■ off■immediately,■disconnect■the■power■...
  • Page 12 Safety Warnings and Precautions ■ ● ■ D o■not■touch■the■auto■stacker■while■it■is■in■ Caution operation.■In■addition,■do■not■insert■your■ finger■or■any■object■under■the■stacker.■An■ injury■or■failure■can■result. ■ ● ■ T here■are■high■voltage■points■inside■the■ printer.■To■avoid■a■fire■or■electrical■shock,■ never■attempt■to■disassemble■or■repair■ the■printer. ■ ● ■ ■ N ever■insert■or■drop■any■metal■objects■ into■the■printer■when■it■is■open.■This■could■ cause■a■fire■or■serious■electrical■shock,■ or■damage■the■printer.■If■something■falls■ into■the■printer■accidentally,■turn■the■ printer■off■immediately,■disconnect■the■ power■plug■from■the■power■source,■and■ call■for■service.■If■you■continue■to■use■the■ printer,■this■could■cause■a■fire■or■serious■ electrical■shock. ■ ● ■ I f■the■printer■is■dropped■and■damaged,■ switch■the■printer■off■immediately,■...

  • Page 13: Moving The Printer

    Safety Warnings and Precautions ■ ● ■ T his■product■weighs■about■25kg.Two■ Important persons■standing■at■the■front■and■ back■of■the■printer■must■lift■the■printer■ ■ ▪ To■prevent■machine■failures,■do■not■open■ while■holding■the■left■and■right■handles■ the■ink■tank■door■or■maintenance■cartridge■ provided■at■the■bottom■of■the■printer.■If■ exchange■door,■do■not■turn■off■the■printer,■ you■lift■the■printer■in■an■unnatural■posture,■ and■do■not■remove■the■power■plug■from■the■ you■may■drop■it,■resulting■in■an■injury.■In■ outlet■while■the■printer■is■printing.■If■you■do■ addition,■if■you■hold■the■stacker■section■ so,■the■print■head■protection■function■is■not■ or■auto■stacker■(paper■eject■section),■ performed■properly,■resulting■in■a■machine■ you■may■damage■it■or■drop■the■printer,■ failure■or■ink■leakage■which■can■soil■your■ resulting■in■an■injury. clothes■and■the■surrounding■area. ■ ▪ Do■not■apply■excessive■force■or■strong■ shock■to■the■upper■unit.■Doing■so■can■result■ in■a■machine■failure■or■impair■print■quality.■ Be■sure■to■open/■close■the■upper■unit■slowly. ■ ▪ Do■not■place■the■printer■close■to■TV,■radio■ receiver■or■loudspeakers,■etc.■The■magnetic■...

  • Page 14: Maintenance Cartridge

    Safety Warnings and Precautions ■ Ink Tank and the Maintenance Cartridge Caution ■ ● ■ A lways■store■these■items■out■of■the■ reach■of■small■children.■This■prevents■ accidents.If■a■child■accidentally■swallows■ ink,■seek■medical■attention■immediately. ■ ● ■ I f■ink■gets■into■your■eyes,■wash■it■out■with■ flowing■water■immediately.■If■irritation■ persists,■consult■a■physician. ■ ● ■ I f■ink■comes■into■contact■with■your■skin,■ rinse■it■off■with■flowing■water■immediately.■ If■irritation■persists,consult■a■physician. ■ ● ■ N ever■drop■or■apply■excessive■force■to■an■ ink■tank■or■the■maintenance■cartridge.■Ink■ can■stain■clothing■and■the■work■area.

  • Page 15: Check On The Bundled Items

    Check on the Bundled Items Check■that■the■following■items■are■included. ■ ● Printer ■ ● Start■Guide ■ ● Printer■Software■CD-ROM ■ ● Power■Cord■for■120V■ ■ ● Power■Cord■for■230V■ ■ ● Starter■Ink■Tank* series* series* (Black,Cyan,■Magenta,■Yellow) ■ ● Additional■Tray** ■ ● Installation■Procedure* ■ ● Papers■for■test■print* *■The■parts■with■an■asterisk■(*)■will■be■used■for■the■installation. **■■ A dditional■Tray■is■needed■when■print■Plastic■Card.■Attach■it■to■Auto■Stacker■before■start■to■print■Plastic■ Card.

  • Page 16: Before Using The Printer

    Before Using the Printer Printer Part Names and Functions The■name■and■function■of■each■part■is■described■below. ■ Front View Operation■panel Keys■necessary■for■operation■and■lamps■to■indicate■the■state■of■printer■are provided■on■this■panel. USB■port Connect■a■USB■cable■here■to■connect■to■the■computer. LAN■port Connect■a■LAN■cable■here■to■connect■to■the■computer. Side■guide Adjust■the■position■of■this■guide■according■to■the■paper■width. Power■socket Connect■the■power■cord■here.
  • Page 17 Before■Using■the■Printer Feeder■lift■tray Load■the■paper. Side■guide■lever Use■this■lever■to■move■the■side■guide. Ink■tank■door Open■this■door■when■replacing■ink■tanks■or■opening■the■upper■unit. Upper■unit Open■this■unit■when■setting■paper■or■removing■the■paper■jammed■in■the■paper■ feed■path■or■cleaning■inside■of■the■machine.■Holds■the■printhead.

  • Page 18: Left Side /Rear View

    Before■Using■the■Printer ■ Left Side /Rear View Rating■plate A■serial■number■for■identifying■the■printer■is■shown■on■this■plate.■(The■serial■ number■is■required■when■you■ask■for■repair■of■the■printer.) Paper■delivery■slot Paper■is■ejected■through■this■slot. Maintenance■cartridge■door Open■this■door■when■replacing■the■maintenance■cartridge. Auto■stacker Receives■printed■paper■output■from■the■printer. Thick■paper■transport■lever Pull■out■this■lever■to■use■the■special■heavy■paper.

  • Page 19: Inside The Printer

    Before■Using■the■Printer ■ Inside the Printer Transport■area Transports■paper.■Clean■here■if■paper■dust■and■ink■stains. Upper■unit■open■lever Open■the■Upper■unit. Ink■tank Load■Black■(Bk),■Cyan■(C),■Magenta■(M)■and■Yellow■(Y)■ink■tanks■from■left.

  • Page 20: Operation Panel

    Before■Using■the■Printer ■ Operation panel TRAY PAUSE STATUS ERROR TRAY■key Use■this■key■to■move■the■feeder■tray■upward/downward. PAUSE■key Printing Pressing■this■key■suspends■printing. in■pause Pressing■this■key■restarts■printing. Power■key/lamp Power-on. Blinking Sleep■mode. Power-off. STATUS■lamp Online■mode. Blinking Data■being■received.■(Check■the■Status■Monitor■on■the■computer.) Offline■mode.■(Check■the■Status■Monitor■on■the■computer.)
  • Page 21 Before■Using■the■Printer ERROR■lamp Operator-call■error.■(Check■the■Status■Monitor■on■the■computer.) Blinking Fatal■error.■(Check■the■Status■Monitor■on■the■computer.) Normal. Maintenance■cartridge■warning■lamp Full. Blinking Nearly■full. Sufficient■room■to■collect■ink. Ink■warning■lamp These■lamps■indicate■the■remaining■amounts■of■Black■(Bk),■Cyan■(C),■Magenta■(M)■ and■Yellow■(Y)■inks. No■ink■or■tank. Blinking Low■ink. Sufficient■ink. Important ■ ● Opening■the■ink■tank■door■or■maintenance■cartridge■door■during■printing■causes■ an■error■and■suspends■printing.■This■could■result■in■a■failure.■Do■not■open■the■ink■ tank■door■or■maintenance■cartridge■door■except■when■replacing■an■ink■tank■or■ maintenance■cartridge■or■opening/closing■the■upper■unit. ■ ● Never■attempt■to■open■the■upper■unit■by■force■or■hit■the■upper■unit.■This■could■damage■ the■printer■or■result■in■poor■print■quality.■Always■open■and■close■the■upper■unit■slowly.

  • Page 22: Installing Software

    Installing Software After■installing■this■printer■at■the■installation■site,■install■the■printer■driver■in■the■computer.■ The■accessory■“Printer■Software■CD-ROM”■contains■the■printer■driver■and■User’s■Guide.■Install■the■ printer■driver,■and■for■User’s■Guide,■install■it■as■needed. Operating Environment The■printer■driver,■User’s■Guide,■can■be■used■in■the■following■environment: ■ ■ Operating■system■(OS) ■ • Windows■8■(32bit■/■64bit) ■ • Windows■7■(32bit■/■64bit) ■ • Windows■Vista■(32bit■/■64bit) ■ • Windows■XP■(32bit■/■64bit) ■ ■ Computer ■ • Recommended■spec:■Computer■on■which■the■operating■system■above■can■run. ■ ■ Hard■disk■space ■ • Hard■disk■space■required■for■installation■(including■the■space■used■temporarily): ■ • Printer■driver:■50■MB■or■more ■ • User’s■Guide:■25■MB■or■more...

  • Page 23: Installing The Printer Driver

    Installing■Software Installing the Printer Driver This■printer■can■be■connected■to■the■computer■via■a■USB■cable■or■network.■Select■either■method■ according■to■the■environment■where■the■printer■is■used. ■ Using the Printer Via a ■ If■the■printer■is■connected■to■the■ computer■via■USB■cable,■disconnect■ USB Cable the■USB■cable. ■ ● This■printer■is■compatible■with■Hi-Speed■ USB. ■ Turn■on■the■power■of■computer■and■ ■ ● A■USB■cable■does■not■come■with■this■printer.■ log■in■the■computer■as■the■user■with■ Use■a■commercially■available■USB■cable■that■ Administrator■authority. is■compatible■with■your■computer. ■ ● Do■not■connect■the■USB■cable■before■ Important installing■the■printer■driver.■After■starting■ installation■of■the■printer■driver,■connect■the■ ■ ● To■install■the■guide,■it■is■necessary■to■ USB■cable■according■to■the■message■shown■...
  • Page 24 Installing■Software ■ Click■“Install■the■printer■driver.” Note ■ ● If■the■following■window■appears,■click■ “Run■autoplay.exe.” ■ Select■the■model■of■the■printer. ■ ● ■ A ■user■account■control■dialog■box■may■ Confirm■the■[Swiftcolor■SCC-4000D] appear.■In■this■case,■click■[Continue]■or■ selected■and■click■[OK]. [Yes]. ■ ● The■installation■start■window■may■not■ appear■depending■on■the■CD-ROM■drive■ auto■run■setting.■In■this■case,■go■through■ the■following. Steps: 1.■Open■the■“Start”■menu■and■then■select■ ■ Read■the■software■license■agreement,■ “My■Computer”■(or■“Computer”). select■[Agree],■and■then■click■[Next]. 2.■Double-click■the■CD■Drive■icon. 3.■Double-click■“autoplay.exe.”...
  • Page 25 Installing■Software ■ Read■the■Cautions■well■and■then■click■ ■ To■change■the■printer■name,■enter■a■ [Next]. new■printer■name■in■“Printer■name.” ■ Select■“Connect■via■USB■or■existing■ ■ When■not■set■as■the■default■printer,■ port”■and■then■click■[Next]. uncheck■the■checkbox■then■click■ [Next].
  • Page 26 Installing■Software When■the■next■window■is■displayed,■ Important turn■on■the■printer■and■connect■ computer■and■printer■with■USB■cable. [Windows■Security■]■dialog■box■will■appear. Then,■click■[install]. ■ • Windows■XP■ Click■[Continue■Anyway]. If■the■printer■is■successfully■recognized■by■ Widows,■installation■of■the■printer■driver■ continues. Note ■ ● If■the■computer,■which■is■connected■to■ the■printer■by■USB■cable,■is■linked■to■ [Windows■Vista] a■network,■it■may■take■some■time■to■ recognize■the■printer. In■case■there■is■no■internet■connection,■ the■following■[WindowsSecurity]■message■ ■ ● If■you■would■like■to■select■the■connection■ will■appear.Then,■click■[install■this■printer■ destination■by■yourself,■click■[Select■ driversoftware■anyway] manually...]■and■select■the■connection■ port.
  • Page 27 Installing■Software [Windows■XP] Important 1.■ S elect■[■No,■not■this■time]■and■click■ ■ ● The■USB■cable■is■hot-swappable.■ [Next]. However,■it■should■be■noted■that■the■ USB■cable■should■not■be■connected■or■ disconnected■in■the■following■cases: ■ − ■ W hen■the■computer■is■being■booted■(before■ the■desktop■appears) ■ − When■the■printer■is■printing ■ − When■the■printer■driver■is■being■installed ■ ● ■ W hen■disconnecting■the■USB■cable■with■ the■computer■or■printer■powered,■be■sure■ to■remove■the■USB■plug■on■the■computer■ side■(USB■hub■side)■in■advance.■When■ 2.■■ S elect■“Install■the■software■ reconnecting■the■USB■cable,■wait■for■at■ automatically■[Recommended]”and■ least■5■seconds■after■disconnecting■it.■If■ then■click■[Next]. you■connect■the■USB■cable■too■early,■the■...

  • Page 28: Using The Printer Via A Lan Cable

    Installing■Software ■ Using the Printer Via a 3.■■ C lick■[Finish]. LAN Cable ■ ● A■LAN■cable■does■not■come■with■this■printer.■ Use■a■commercially■available■LAN■cable■that■ is■compatible■with■your■computer. ■ ● When■connecting■to■in-house■LAN,■consult■ the■network■administrator. ■ ● Have■the■power■of■printer■turned■on■before■ connecting■to■LAN. ■ Eject■CD-ROM■and■click■[Yes]. ■ Go■through■steps■1■to■8■of■the■ procedure■for■using■the■printer■via■a■ USB■cable. ■ Check■the■“Connect■via■network”■and■ then■click■[Next]. Note ■ ● If■you■select■[No],■be■sure■to■restart■ Windows■before■using■the■printer. With■that,■installation■of■the■printer■driver■via■a■ USB■cable■is■completed.
  • Page 29 Installing■Software ■ Click■[Next]. ■ Click■[Yes]. ■ Click■[Next]. ■ Connect■LAN■cable■for■the■printer■ when■the■below■window■is■displayed. Click■[Next]. The■setup■wizard■will■search■for■the■ printer■on■the■network.
  • Page 30 Installing■Software ■ When■[Swiftcolor■SCC-4000D]■is■ Important found,■select■it■and■click■[Next]. ■ ● If■nothing■is■displayed■when■searching■ for■the■printer,■contact■the■network■ administrator. If■nothing■is■displayed■when■searching■for■the■ printer,■the■possible■causes■are■as■follows: ■ • ■ T he■[SCC-4000D]■and■computer■are■ installed■on■different■networks.■Accordingly,■ the■[SCC-4000D]■cannot■be■recognized■by■ the■computer. ■ • ■ R egarding■network■operation,■it■may■ be■impossible■to■join■the■network■if■the■ predetermined■IP■address■has■not■been■ set. In■the■above-described■cases,■first■assign■ Printer■the■IP■address. ■ C onnect■the■printer■on■the■network■on■ which■the■computer■subject■to■printer■driver■ is■installed,■and■then■assign■Printer■the■IP■ address.■Or■install■the■printer■driver■in■the■ computer■on■the■network■on■which■the■printer■ is■to■be■installed,■and■then■set■the■IP■address. After■setting■the■IP■address,■retry■network■ search.
  • Page 31 Installing■Software ■ Check■the■“Have■an■IP■address■ Note automatically”■and■click■[Next]. ■ ● If■you■would■like■to■set■a■specific■IP■ address,■uncheck■"Have■an■IP■address■ automatically”■checkbox■and■directly■enter■ IP■address. Note ■ ● If■there■is■an■equipment■having■DHCP■ ■ ● Clicking■[Next]■displays■the■network■ server■function■on■the■network,■checking■ settings■confirmation■window.■Check■that■ the■"Have■an■IP■address■automatically”■ settings■are■correct. checkbox■acquires■IP■address■ automatically. ■ Verify■the■content■and■click■[Next]. Important ■ ● If■there■is■no■equipment■having■DHCP■ server■function■on■the■network,do■not■ check■"Have■an■IP■address■automatically”■ checkbox.■ If■there■are■multiple■units■of■this■printer■on■ the■network,■the■IP■address■may■overlap.
  • Page 32 Installing■Software ■ ■ C lick■[Next]. ■ To■change■the■printer■name,■enter■a■ new■printer■name■in■“Printer.” Important ■ ● Network■Utility■allows■you■to■change■or■ ■ When■not■set■as■the■default■printer,■ confirm■the■IP■address■of■the■printer. uncheck■the■checkbox■then■click■ [Next]. It■is■recommended■to■install■Network■Utility■ in■the■computer■as■Network■Utility■is■required■ to■change■the■IP■address■after■Printer■ installation. For■how■to■use■Network■Utility,■refer■to■ “7.Appendix■“Network■Utility”■of■the■User’s■ Guide. The■software■will■be■installed.
  • Page 33 Installing■Software ■ Click■[Next]. Important [Windows■Security■]■dialog■box■will■appear. Then,■click■[install]. ■ • Windows■XP■ Click■[Continue■Anyway]. The■network■utility■will■be■installed. ■ Click■[Finish]. [Windows■Vista] In■case■there■is■no■internet■connection,■ the■following■[WindowsSecurity]■message■ will■appear.Then,■click■[install■this■printer■ driversoftware■anyway]...
  • Page 34 Installing■Software ■ Click■[Finish]. Note ■ • [Server■Client■Registration]■can■be■added■ later■if■the■registration■was■not■carried■out■at■ the■installation.■ Please■follow■the■same■step■if■the■printer■ driver■is■added■later. Carry■out■the■step■1■to■6■of■[Installing■ the■Printer■Driver].■Then,■the■follow■the■ procedures■in■the■dialog■box. -Register■the■Server■Client Select■[Server■Client■Registration]■and■click■ If■you■want■to■print■from■another■computer■ via■the■computer■in■which■you■installed■ the■printer■driver,■click■[Server■Client■ Registration]. ■ Eject■CD-ROM■and■click■[Yes]. -■Addition■of■the■Printer■Driver Select■[Printer■Addition]■and■click■OK Note ■ ● If■you■select■[No],■be■sure■to■restart■ Windows■before■using■the■printer. With■that,■installation■of■the■printer■driver■via■a■ LAN■cable■is■completed.

  • Page 35: Installing The User's Guide

    Installing■Software Installing the User’s Guide User’s■guide■can■be■viewed■by■setting■the■CD-ROM■in■the■drive;■however■having■the■guide■installed■ to■the■computer■is■convenient■for■use. Important ■ ● To■install■the■guide,■it■is■necessary■to■log■in■the■computer■as■the■user■with■Administrator■authority.■ In■addition,■only■have■the■user■with■Administrator■authority■have■log■in■status. ■ ● Have■Anti-virus■programs■and■other■resident■programs■closed■in■advance. ■ Set■the■“Printer■Software■CD-ROM”■in■ Note the■computer. ■ ● ■ A ■user■account■control■dialog■box■may■ Note appear.■In■this■case,■click■[Continue]■or■ [Yes]. ■ ● If■the■following■window■appears,■click■“Run■ autoplay.exe.” ■ Click■[Install■the■User’s■Guide]. ■ ● The■installation■start■window■may■not■ appear■depending■on■the■CD-ROM■drive■ auto■run■setting.■In■this■case,■go■through■ the■following. Steps: 1.■■...
  • Page 36 Installing■Software ■ Select■the■model■of■the■printer. ■ Click■[OK]. Confirm■the■[Swiftcolor■SCC-4000D] selected■and■click■[OK]. The■step■above■completes■the■installation■ of■the■user’s■guide. ■ Click■[Yes]. Installation■of■the■user’s■guide■starts. ■ To■create■a■shortcut■that■opens■the■ user’s■guide■on■the■desktop,■click■ [Yes].

  • Page 37: Reading The User's Guide

    Installing■Software Reading the User’s Guide The■installed■User’s■Guide■can■be■viewed■by■double-clicking■the■shortcut■created■on■the■desktop. If■shortcut■is■not■created,■select■User’s■Guide■from■the■[Start]■menu. ■ From■the■[Start]■menu,■select■[All■ ■ Click■[Read■the■User’s■Guide]. Programs]■-■[Swiftcolor■SCC-4000D],■ click■[Read■the■User’s■Guide]. ■ User’s■guide■will■open. Note ■ ● To■view■the■user’s■guide,■Adobe■Reader■ must■be■installed■in■advance■within■the■ computer. ■ Select■the■model■of■the■printer. ● To view the user’s guide without Confirm■the■[Swiftcolor■SCC-4000D]■ selected■and■click■[OK]. installing� ■ Set■the■[Printer■Software■CD-ROM]■to■ computer’s■CD-ROM■drive. Note ■ User’s■Guide■will■open. ■ ● ■ A ■user■account■control■dialog■box■may■...

  • Page 38: Paper Loading Procedure

    Paper Loading Procedure This■section■describes■how■to■load■paper. ■ Make■sure■that■the■Power■lamp■stays■ ■ Load■and■insert■the■paper■stack■in■the■ lit. feeder■lift■tray■until■it■stops.■ If■the■Power■lamp■does■not■stay■lit■or■it■ Make■sure■that■the■paper■stack■is■also■ is■not■blinking,■press■the■power■key■to■ aligned■with■the■side■guide■(rear). put■the■printer■in■the■power-on■state. [When■Loading■Business■Card/ID-card] Load■paper■stack■in■long■edge■feed■direction. ■ While■raising■the■side■guide■lever,■ Side guide move■the■side■guide■fully■to■the■front■ (rear) side. Note ■ ● When■loading■new■paper,■flap■sheets■of■ paper■well■and■align■all■edges■of■sheets■of■ paper.
  • Page 39 Paper■Loading■Procedure Important ■ ● Do■not■print■on■the■back■of■the■envelope.■ A■printing■failure■or■other■problems■can■ result. Note ■ ● It■is■recommended■that■paper■exclusively■ for■the■color■card■printer■be■used.■Using■ nonexclusive■paper■can■cause■bled■and■ blurred■printing■or■adversely■impact■the■ printer,■resulting■in■troubles. ■ ● When■loading■paper,■check■that■top■ surface■of■the■paper■stack■is■not■higher■ than■the■load■limit■mark.
  • Page 40 Paper■Loading■Procedure Note ■ ● When■loading■envelopes,■pull■out■the■auxiliary■tray. ■ ● Load■envelopes■with■their■outsides■(on■which■an■address■is■printed)■up,■in■such■a■manner■that■ the■sealing■portions■are■closed■and■pressed■against■the■side■guide■(rear). ■ ● If■sheets■of■new■paper■or■swelled■envelops■are■loaded■as■they■are,■they■may■not■be■fed■smoothly. When■loading■sheets■of■new■paper,■flap■them■well■and■press■on■swelled■envelopes■before■ loading■them. ■ ■ ● Flatten■curled■sheets■of■paper■before■loading■them. ■ ● The■capacity■of■the■feeder■tray■is■as■follows: ■ Business■Card/■Postcard:■500■sheets■(Thickness:■0.245mm■or■less.)■ ■ Envelope:■100■sheets■ ■ Card■(Length:148■mm■or■more):■100■sheets ■ ■ W hen■loading■paper,■check■that■top■surface■of■the■paper■stack■is■not■higher■than■the■load■limit■ mark.■ If■a■paper■feed■error■occurs,■reduce■the■number■of■sheets■loaded■in■the■tray.
  • Page 41 Paper■Loading■Procedure ■ While■raising■the■side■guide■lever,■ ■ Press■the■TRAY■key. slowly■move■the■side■guide■until■it■ The■feeder■tray■rises■automatically.■ stops■against■paper. Wait■until■it■stops■rising. Important ■ ● Do■not■press■the■side■guide■against■the■ paper■stack■end■face■too■strongly.■A■paper■ jam■can■result. When■the■status■lamp■stays■lit■in■green,■the■ printer■is■ready■for■printing. Important ■ ● Do■not■operate■the■side■guide■after■the■ feeder■tray■has■risen.■A■paper■jam■can■ result.
  • Page 42 Paper■Loading■Procedure Important ■ To those who use thick paper To■use■thick■paper,■set■[Paper■form]■of■the■printer■driver■to■[Thick■paper]■and,■pull■out■the■thick■paper■ transport■lever■in■the■paper■delivery■slot. ■ ● Setting■the■printer■driver On■the■Page■Setup■sheet,■set■[Paper■form]■to■[Thick■paper]. ■ ● Setting■the■thick■paper■transport■lever When■using■thick■paper When■using■paper■other■than■thick■paper Pull■out■the■thick■paper■transport■lever■in■the■paper■delivery■ Push■the■thick■paper■transport■lever■in■the■paper■delivery■slot. slot. *■ S ettings■for■both■the■printer■driver■and■thick■paper■transport■lever■are■required.■If■these■are■not■set■properly,■an■error■message■is■ displayed■on■the■Status■Monitor■window■and■the■printer■does■not■operate. When■the■thick■paper■transport■lever■is■not■pulled■out When■[Special■heavy■paper]■is■not■set■by■the■printer■driver...

  • Page 43: For The Use Of Plastic Card

    Paper■Loading■Procedure ■ For the use of Plastic Card Please■follow■the■following■procedure■for■ Note the■plastic■card■printing. ■ ● When■loading■3.5x5.5inch■Plastic■card,■ Make■sure■that■printer■is■switched■off. stand■the■flap■of■additional■tray. ■ Press■the■power■key■for■at■least■1■ second. Auto■Stacker■lowers■automatically. ■ Load■Additional■tray■to■the■auto■ stacker. Set■Additional■Tray■to■Auto■Stacker.■ Push■it■until■it■reaches■the■end. Note ■ ● When■remove■Additional■Tray,■pull■and■ down■it■as■shown■in■figure. Make sure that the bottom part of Additional Tray and Auto Stacker should be located in parallel as shown in figure.
  • Page 44 Paper■Loading■Procedure ■ Press■down■Feeder■tray■lever■to■ Note [Plastic]. ■ ● When■loading■paper■media,■set■Feeder■ tray■lever■to■[Paper]. ■ Open■the■[Page■setup]■sheet■in■Printer■ driver■and■select■[Plastic■Card]■for■ [Paper■Type].
  • Page 45 Paper■Loading■Procedure ■ Press■TRAY■key. The■feeder■lift■tray■lowers■automatically. Wait■until■it■stops■lowering,■and■then■set■ the■plastic■card.
  • Page 46 Paper■Loading■Procedure Important ■ To those who use plastic card To■use■thick■paper■or■plastic■card,■set■[Page■setup]■of■the■printer■driver■to■[Card■CR80■plastic■ 85.6x54.0mm][Card■4.25■x■2.5inch][Card■3.5■x■2.5inch]■and,■pull■out■the■thick■paper■transport■lever■at■ the■paper■delivery■slot. ■ ● Setting■the■printer■driver On■the■Page■Setup■sheet,■set■[Paper■Size]■and■[Paper■Type]■to■[Plastic■card]. ■ ● Setting■the■thick■paper■transport■lever ■ ● When■using■plastic■card■(Paper■length■is■less■than■57mm) ■ ● When■using■plastic■card■(Paper■length■is■57mm■or■more) •■ [Card■CR80■plastic■85.6x54.0mm] •■ [Card■ID-2■105.0■x■74.0mm] •■ [Card■4.25■x■2.5inch] •■ [Card■ID-3■88.0■x■125.0mm] •■ [Card■3.5■x■2.5inch] •■ [Card■3.5■x■5.0inch] •■ [Card■4.0■x■6.0inch] •■ [Card■4.0■x■3.0inch] •■...

  • Page 47: Specifications

    Specifications ■ ■ Printer Printing■method Inkjet Print■colors Full■color Output■resolution 1200■dpi■×■1200■dpi Printing■speed Business■Card,■ID-1(Plastic■card):■100■sheets/min.■ Postcard:■45■sheets/min.■ Envelope:■28■sheets/min.■ Plastic■card(3.5x5.5inch):50■sheets/min Printable■area 107.8■mm■(W)■×■297.0■mm■(L) Print■margin■ Top/Bottom:■1.5■mm (in■relation■to■paper■ Left/Right:■2.0■mm transport■direction) Print■head 5,097■nozzles■(effective■nozzles) Paper Matte■coated■paper,■Glossy■paper,■Inkjet■postcard,■Envelope,■Plastic■ card Paper■size Width:■85■mm■-■120■mm■ Length:■49■mm■-■300■mm Paper■thickness Business■Card,■Postcard,■Plastic■card:■0.21■mm■-■0.76■mm Envelope:■0.28■mm■-■0.32■mm Paper■feed■capacity Business■Card,■Postcard:■500■sheets■(Thickness:■0.245■mm■or■less)■ Envelope:■100■sheets■ Card,■Plastic■card■(Length:148■mm■or■more):■100■sheets Ink■used Water■based■dye-ink■ Yellow■(Y),■Magenta■(M),■Cyan■(C),■and■Black■(Bk) Interface Hi-Speed■USB,■1000BASE-T/100BASE-TX/10BASE-T Operating■noise...
  • Page 50 4Y8-8053-030■...
  • Page 52 Contact Information Swiftcolor/Kanematsu KANEMATSU USA INC. 100 Randoloph Road Somerset, NJ 08873 USA URL : www.swiftcolor.com E-mail: info@swiftcolor.com Kanematsu G.m.b.H Duesseldorf Head Office Oststrasse 34, D-40211, Duesseldorf, Germany URL : www.swiftcolor.com E-mail: info@swiftcolor.com 4Y8-8053-030 PRINTED IN JAPAN. 2013...
