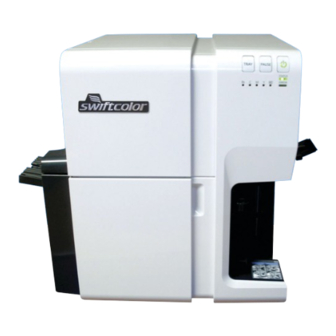

SwiftColor SCC-4000D User Manual
Hide thumbs Also See for SCC-4000D:

Advertisement

Quick Links

Technical User Guide
for the SCC-4000D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC-4000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SwiftColor SCC-4000D

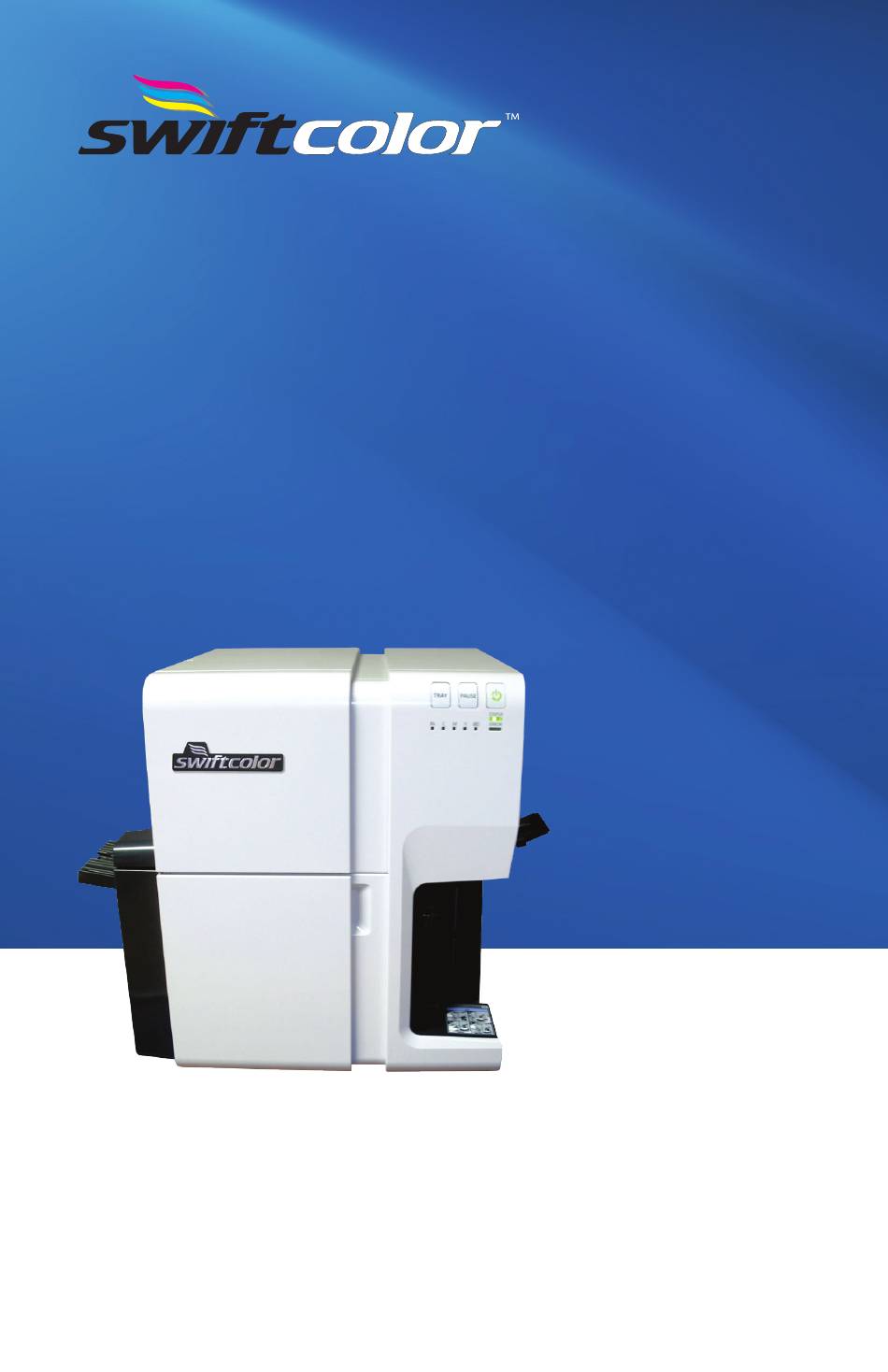

  • Page 1 Technical User Guide for the SCC-4000D...
  • Page 2 Notes...
  • Page 3: Table Of Contents

    Changing Card Type/Size ......................7 Cleaning the Printer ...........................9 Common Parts Replacement ....................16 Reseating the Print Head ......................23 Common Error Codes and Problems .................25 Shipping the Printer ........................27 Contact Information ........................28 Technical Support ..........................28 Sales Inquiries .............................28 Marketing Inquiries ..........................28 www.swiftcolor.com...
  • Page 4: Setting Up The Printer

    Setting Up the Printer Download driver at http://swiftcolor-card.com/printerdownloads.php. 2. Take printer out of box as shown below. DO NOT GRAB THE TRAYS AS IT WILL DAMAGE THE PRINTER! There are handles underneath. 3. Install the print head. a. Open upper unit and remove screw securing maintenance cover.
  • Page 5 Remove print head from packaging and install into printer on the rail guide. Make sure to push the print head until it stops. g. Reinstall the Blade Cleaner, close the lower (2) & the upper (1) head release levers, reinstall print module cover, and maintenance cover. www.swiftcolor.com...
  • Page 6 20 minutes. DO NOT OPEN THE INK TANK DOOR DURING THIS PROCESS! THE INK LOADING PROCESS WILL STOP AND WILL START ALL OVER AGAIN. Once complete the SCC-4000D is ready to print! 8. MAKE SURE TO KEEP ORIGINAL PACKAGING TO PROPERLY SHIP THE PRINTER.
  • Page 7: Operation Panel

    In pause Pressing this key restarts printing. [3] Power key/lamp Power-on. Blinking Sleep mode. Power-off. [4] STATUS lamp Online mode. Blinking Data being received. (Check the Status Monitor on the computer.) Offline mode. (Check the Status Monitor on the computer.) www.swiftcolor.com...
  • Page 8 • Never attempt to open the upper unit by force or hit the upper unit. This could damage the printer or result in poor print quality. Always open and close the upper unit slowly. SCC-4000D User Guide...
  • Page 9: Changing Card Type/Size

    If the card size selected does not match the actual physical dimensions of the card in the hopper, the printer will error out with a card jam error. The picture on top lists the paper size and the picture on the bottom lists the types. www.swiftcolor.com...
  • Page 10 Then go to Printer Preferences -> click on Custom Paper Size underneath the paper size. From there, create your card size using Inches or MM, name the size and click register on the bottom right. SCC-4000D User Guide...
  • Page 11: Cleaning The Printer

    Cleaning the Printer Cleaning the printer is essential to the successful performance of the SCC-4000D. There are two areas in the printer where cleaning is needed and can be performed. The transport area or rollers should be cleaned on a regular basis with a cleaning card. The print head is generally an area...
  • Page 12 Remove the release paper from the backside of the card. d. Place the card in hopper with the text side facing down. In the printer preferences, select 3.5 x 5.5 inch Paper Size and print the blank image. SCC-4000D User Guide...
  • Page 13 Note: You can send the card through as many times as required to clean the transport rollers. 2. Print Head Cleaning The SCC-4000D performs periodic auto cleanings which is determined by the amount (distance) printed to keep the print nozzles from clogging. There are cases when a manual cleaning is necessary to unclog print head nozzles.
  • Page 14 Swab Cleaning – Open the Service Utility, and under the Test Print/ Adjustment tab select a Standard size media to print on (the media printed must be on the list). Click on the Nozzle Check Pattern Button. The card printed will look like the following: SCC-4000D User Guide...
  • Page 15 Find white streak(s)/line(s) on printed paper and then locate the non- firing nozzle on the print head. Touch the tip of cleaning stick on the nozzle that is not firing and then keep contact for 5 seconds to absorb the ink. www.swiftcolor.com...
  • Page 16 Leaving the head in this position will cause the ink to dry in the nozzles which will create more clogged nozzles. The print head will recap and return to normal position automatically once the upper unit is closed). SCC-4000D User Guide...
  • Page 17 With a lint free cloth soaked in Isopropyl alcohol (please make sure the alcohol is 90% or higher), wipe the print head in the area and color where the white lines appear. www.swiftcolor.com...
  • Page 18: Common Parts Replacement

    Common Parts Replacement The SCC-4000D printer has a number of consumable parts that require replacing when they expire or in the event of failure. This section will take you through replacing these parts and any adjustments necessary. To accomplish these replacements, you will need a Phillips screw driver, latex/rubber gloves and the Service Utility.
  • Page 19 Remove Service Tool Unit if installed, Print Module Cover and lift and lower upper and lower print head release levers (1) and (2). www.swiftcolor.com...
  • Page 20 Open the Service Utility and click on the Parts Replacement tab. Check the Purge Unit box under the Consumable Parts Replacement section and click the Start button. The utility will walk through the entire process of this procedure. SCC-4000D User Guide...
  • Page 21 Discard the expired/defective unit in the disposable zip lock bag provided with the new unit. Note: When installing the new unit, record the adjustment value (Rec wipe P) from the label on the front of the unit. www.swiftcolor.com...
  • Page 22 Rec wipe P value into the Service Utility. The printer will restart in normal mode to complete the process. 3. Blade Cleaner Replacement – Should be replaced when a strong cleaning does not unclog blocked nozzle(s) or it expires. SCC-4000D User Guide...
  • Page 23 The utility will reboot the printer in service mode and place the purge unit in the position to be removed. Once done, the printer will power down. b. Remove the maintenance cover, Service Tool Unit and Print Cover Module (See Print Head Replacement). www.swiftcolor.com...
  • Page 24 Remove expired Blade Cleaner and replace with new unit. d. Place the Print Cover Module, Service Tool Unit and Maintenance Cover back on to the printer and power the unit on. SCC-4000D User Guide...
  • Page 25: Reseating The Print Head

    To reseat the print head, open the Service Utility and click on the Troubleshooting tab. Select the Head Install Position button. Remove the maintenance cover. Open the Upper unit, remove the screw securing the cover and remove cover while pushing the hooks on the inside of the cover. www.swiftcolor.com...
  • Page 26 Caution! Be careful when removing the print head, it will have a full capacity of ink inside. Tilting it down or up would result in the ink spilling out. Just slide the print head out and back into the module. SCC-4000D User Guide...
  • Page 27: Common Error Codes And Problems

    Common Error Codes and Problems Some of the more common fixable errors on the SCC-4000D. Error Codes Print Head Position Error Code Detail Code Issue 2X, 3X, 4X, 5X, 6X The print head upper release lever (1) may not be in the down position.
  • Page 28 Increasing the cycle will keep create more stability while card is being transported. The Service Utility is also needed to make this adjustment. SCC-4000D User Guide...
  • Page 29: Shipping The Printer

    The warranty of any unit with this type of damage is automatically void! When shipping the SCC-4000D from one location to another it is most important to put the printer in Shipping Mode. Shipping mode will drain the ink from the printer’s vital systems so that it does not spill inside the...
  • Page 30: Contact Information

    Contact Information Technical Support Address: SwiftColor Card Service Center 31390 Viking Parkway Westlake, OH 44145 Phone: (732) 271-7328 Email U.S.: supporttech@swiftcolor.com Hours of Operation: 8:00 a.m. – 8:00 p.m. EST Monday – Friday (Excluding holidays) Sales Inquires Email U.S.: sales@swiftcolor.com Marketing Inquiries Email: marketing@swiftcolor.com...
  • Page 31 Notes...
  • Page 32 Need more technical support? Email us at supporttech@swiftcolor.com    ...
