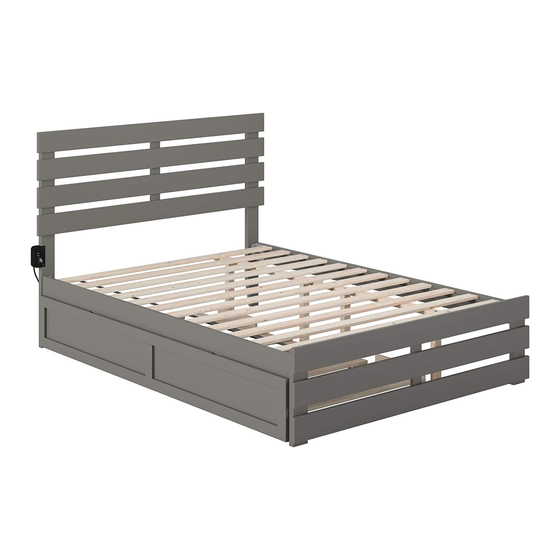

Before assembling your headboard and footboard, please read through these
instructions carefully and familiarize yourself with the different parts.
please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726
PARTS LIST
1
HEADBOARD PANEL BOARDS 4 PCS
2
LEFT LEG
3
RIGHT LEG
4
FOOTBOARD PANEL BOARDS
5
LEFT FOOTBOARD LEG
6
RIGHT FOOTBOARD LEG
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

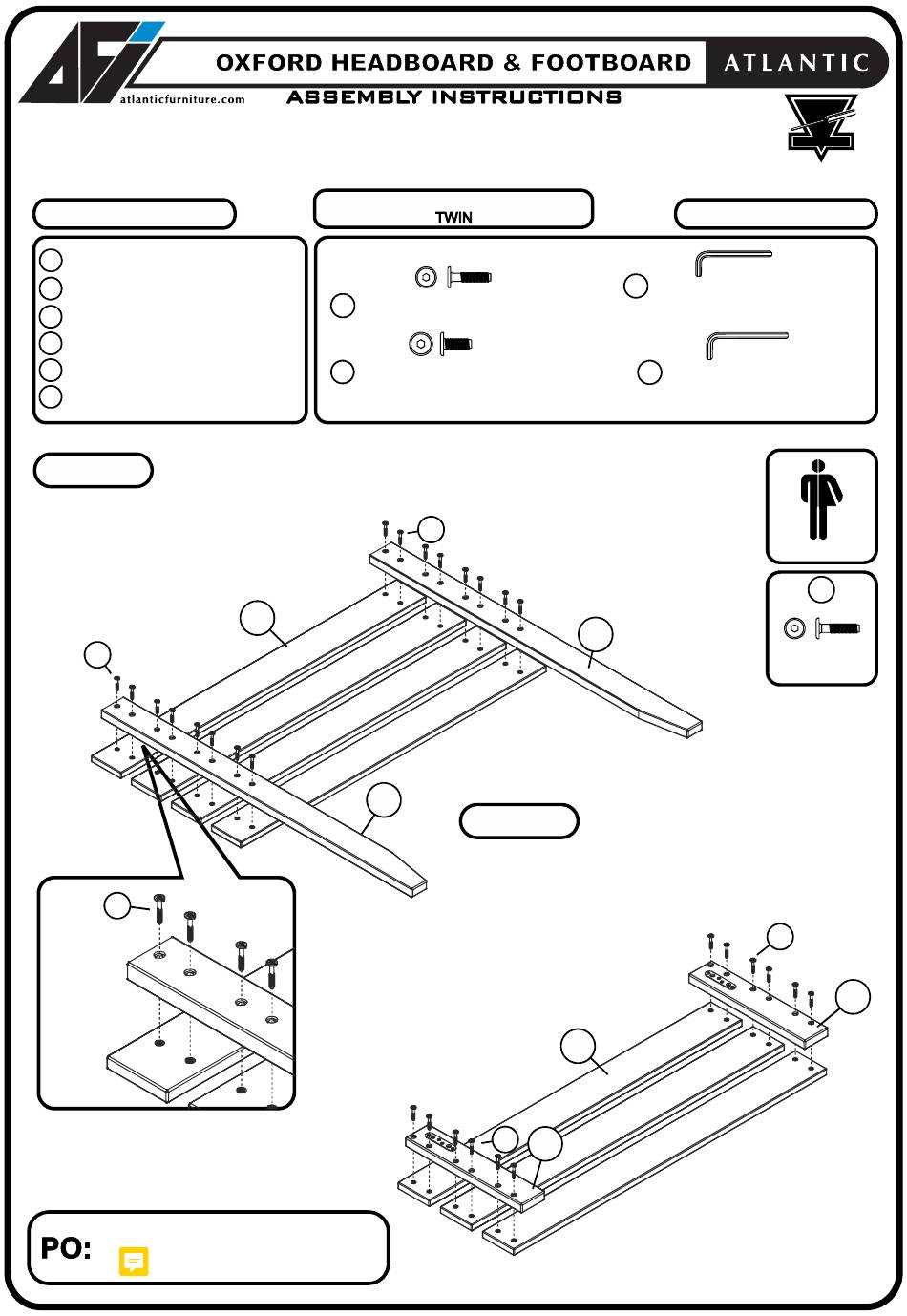

Step 1
Attach left leg (2) and right leg (3) to headboard panel boards (1),
using JCB M6 X 35mm (A).
Tighten with the Allen wrench M4 (C).
A
A
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
1 PC
A
JCB M6 X 35mm - 28 pcs
1 PC
3 PCS
1 PC
B
JCB M8 X 15mm ( 5/8") - 8 pcs
1 PC
1
3
Spare - 1 pc
A
2
Step 2
Attach left footboard leg (5) and right footboard leg(6)
to footboard panel boards (4), using JCB M6 X 35mm (A).
Tighten with the Allen wrench M4 (C).
4
A
6
ASSEMBLE
HARDWARE
C
Allen wrench M4 - 1pc
Spare - 1pc
D
Allen wrench M6 - 1pc
Adult assembly
Adult assembly
JCB M6 X 35mm
A
Page 1 of 2
READY
TO
A
5
