PARTS LIST
1
FOOT RAIL
2
LEFT LEG
3
RIGHT LEG
4
SIDE RAILS
5
SLAT KIT
6
SLAT SUPPORT 1
7
SLAT SUPPORT 2
8
SUPPORT LEGS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

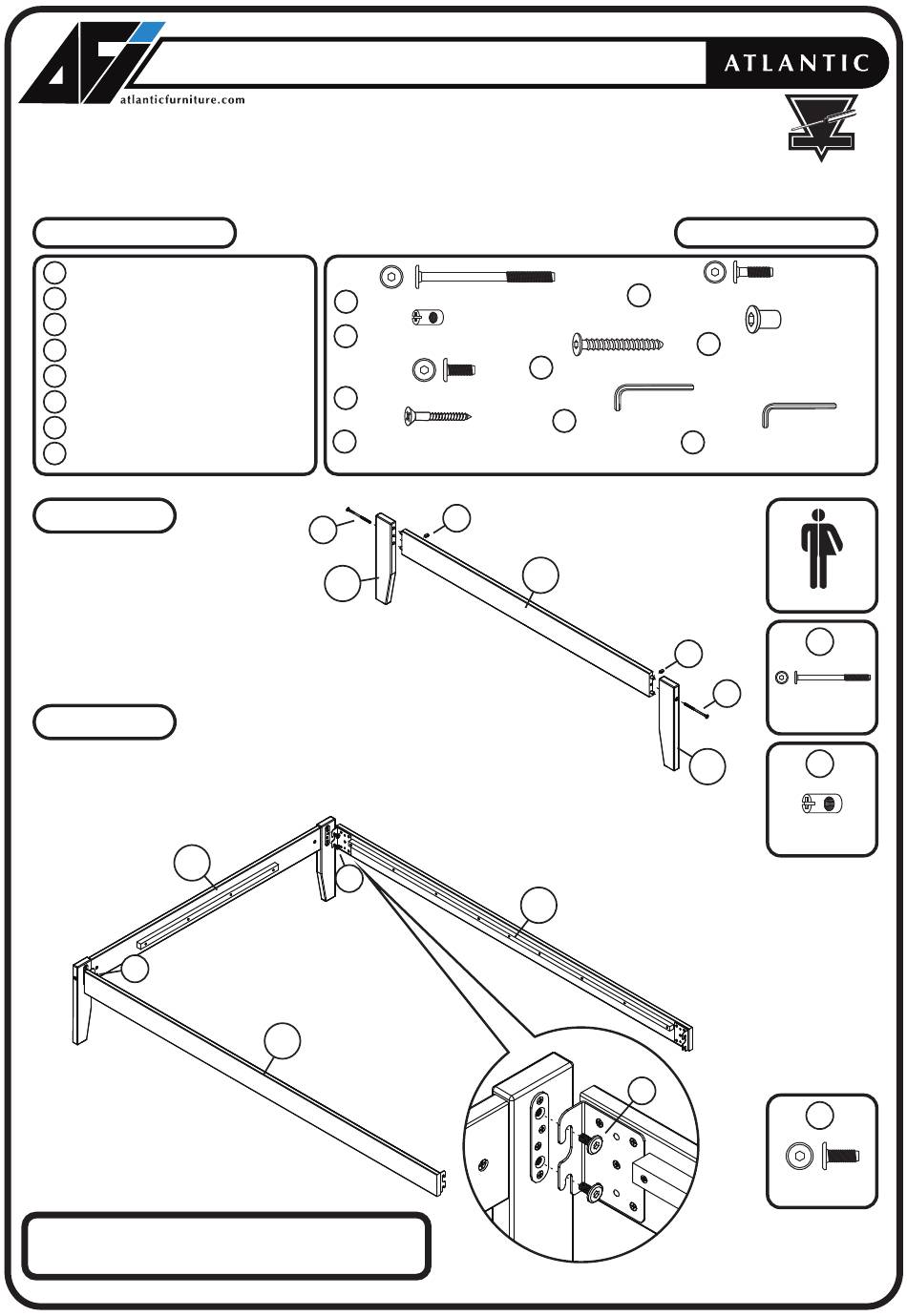

Step 1
Attach the legs (2) and (3)
to foot rail (1), using
JCB M6 X 110mm (A) and
barrel nut (B).
Tighten with the Allen wrench M4 (I).
Step 2
Attach side rails (4) to the foot rail (1) as shown below using JCB M8 X 15mm (C).
Tighten with Allen wrench M6 (H).
1
C
PO:
OPEN BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
1 PC
1 PC
A
JCB M6 X 110mm (4 3/8") - 2 pcs
1 PC
B
Barrel nut - 2 pcs
2 PCS
2 SETS
C
JCB M8 X 15mm ( 5/8") - 4 pcs
1 PC
1 PC
D
Wood screw(1 1/4") - 25 pcs
3 PCS
A
2
C
4
FULL
Spare - 1 pc
G
Allen Screw - 3pcs
H
Allen wrench M6 - 1pc
Spare - 2 pcs
B
1
4
READY
ASSEMBLE
HARDWARE
E
JCB M6 X 25mm(1") - 4pcs
F
Cap nut - 4pcs
I
Allen wrench M4 - 1pc
Spare - 1pc
Adult assembly
B
A
JCB M6 X 110mm
3
Barrel nut
C
JCB M8 X 15mm
Page 1 of 2
TO
A
B
C
Advertisement
Related Manuals for AFi Atlantic AG8011239
Summary of Contents for AFi Atlantic AG8011239
- Page 1 OPEN BED FRAME FULL READY ASSEMBLY INSTRUCTIONS Before assembling your bed frame, please read through these ASSEMBLE instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726 PARTS LIST HARDWARE FOOT RAIL...
- Page 2 OPEN BED FRAME FULL READY Step 3 Step 4 ASSEMBLE Attach open bed frame to the headboard Attach support legs (8) to slat support 1 & 2 (6)(7) as as shown below using 4 JCB M8 X 15mm bolts shown below using Allen screw (G) tighten with that are supplied with your headboard.
- Page 3 TRUNDLE BED Before assembling your Trundle bed, please read through these instructions carefully. Familiarize yourself with the different parts. Adult assembly ATTENTION! If you receive a damaged or defective item, please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726 Phillips screwdriver Customer supplied HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
-
Page 4: Parts List
TRUNDLE BED PARTS LIST HARDWARE 1 BOX LEFT, RIGHT, MID RAIL 3 PCS FRONT PANEL 1 PC REAR BLOCK 2 PCS 2 SETS FRONT RAIL 1 PC SLAT KIT WITH WEBBING BACK RAIL 1 PC Step 1 Attach the left, right and mid rails (05) to the front rail (03) using L bracket (E) and JCB M6 X 1 5/8”(B). - Page 5 TRUNDLE BED Attach the front panel (02) to the front rail (03) as shown, using JCB M6 X 5/8” (C). Step 2 Tighten with the Allen wrench (G). Adult assembly JCB M6 X 5/8” Allen wrench Step 3 Lay the slat kits (07) webbing side down onto the rail assembly as shown. Attach using wood screw (F) and tighten with the Phillips head screw driver.
- Page 6 TRUNDLE BED Step 4 Attach the rear blocks (06) to the back rail (04) as shown using JCB M6 X 2 3/8”(A) barrel nut (D). Tighten with the Allen wrench (G) JCB M6 X 2 3/8” Adult assembly Barrel nut Allen wrench Step 5 Lastly, Insert Trundle bed to the bed as shown below.
