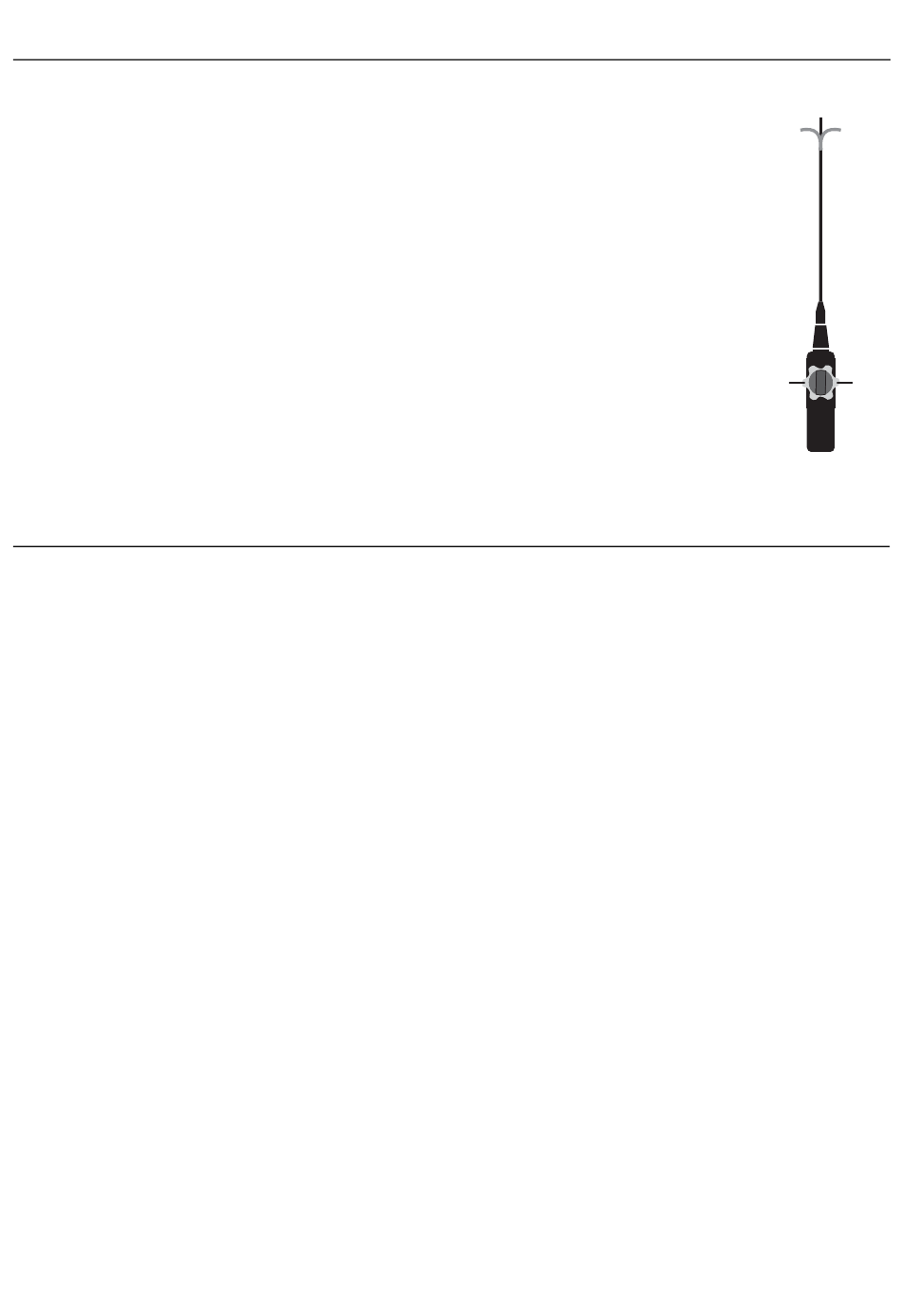

Articulation Setup and Orientation
The articulation direction and orientation may change if the probe is twisted and coiled during
use or when stored. To re‐orient the probe:
1. Place the extended probe on a flat surface
2. Set the tension "F" knob to the left or released position.
3. Set the articulation knob to the center position with the R Δ and Δ L
labels in the horizontal position.
4. Manually adjust the probe and camera to the zero degree position.
5. Rotate the articulation knob clockwise for a 120° bend.
6. If necessary, manually adjust the probe so that the camera lays flat on
the surface with a 120° articulation
7. Rotate the articulation knob counter‐clockwise and confirm proper
orientation.
Specifications
Resolution
Length
Outer diameter (O.D.)
Focus distance (depth of field) 6cm to
Housing
Field of View (FOV)
Number of LEDs
Lamp Output
Operating Temperature
Storage Temperature
Warranty
All rights reserved including the right of reproduction in whole or in part in any form
640 x 480 pixels
1m (3.3')
6mm (0.24")
∞
Stainless Steel
60º
4
3500 Lux at 20mm (0.8")
‐20 to 70°C (‐4 to 158°F)
‐20 to 70°C (‐4 to 158°F)
One year
Copyright © 2013‐2016 FLIR Systems, Inc.
ISO‐9001 Certified
www.extech.com
∞
(2.36" to )
RΔ ΔL
HDV‐TX1L‐en‐GB_V1.1 2/16
