Austausch Funkmodul
Beschaltung X1/4:
24V
Verdeck öffnen
0V
Verdeck schließen
unbeschaltet
Verdeck steht still
!
Nicht zusammen mit Fahrertaster
installierbar
www.EdschaTS.com
EN
Replacing the radio module

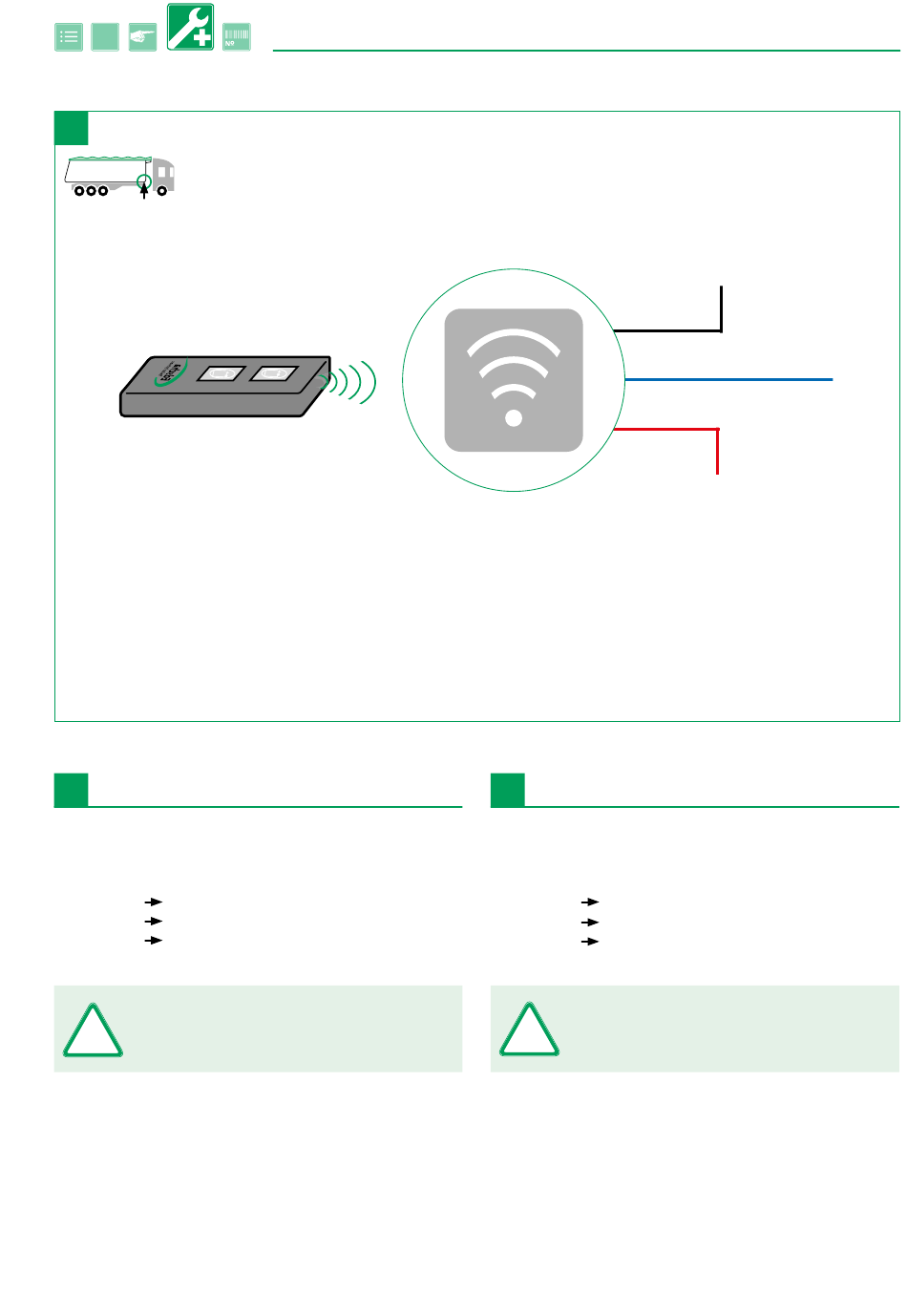

Wiring X1/4:
24V
open roof
0V
close roof
unbeschaltet
roof stops
!
Cannot be installed together with the
driver switch
Batterie -
Battery -
X1/4
Funkmodul
X1/4
Radio module
Batterie +
Battery +
