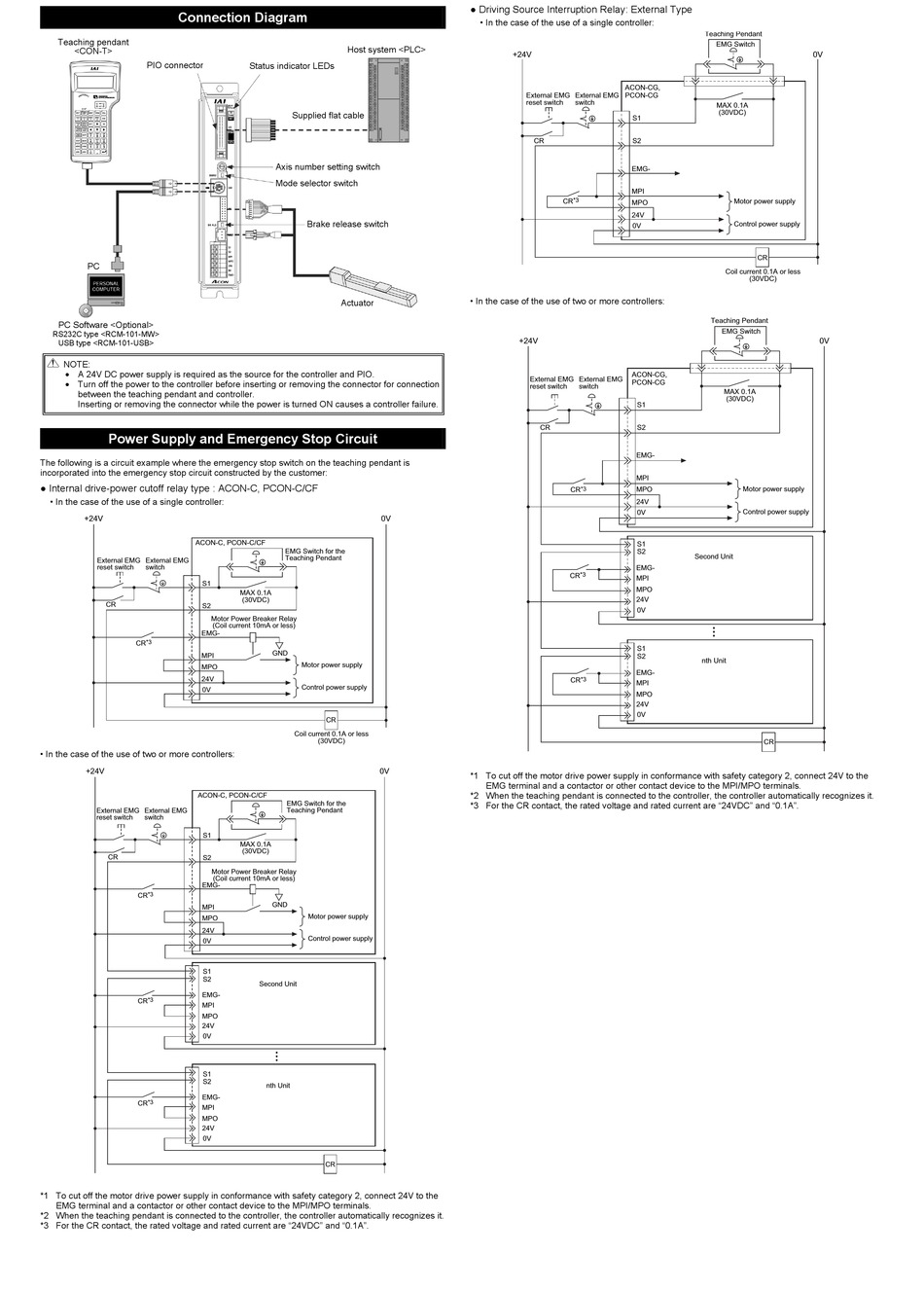

Connection Diagram - IAI ACON-C Series First Step Manual

Connection Diagram

Teaching pendant
<CON-T>
PIO connector
PC
PC Software <Optional>
RS232C type <RCM-101-MW>
USB type <RCM-101-USB>
NOTE:
 A 24V DC power supply is required as the source for the controller and PIO.
 Turn off the power to the controller before inserting or removing the connector for connection
between the teaching pendant and controller.
Inserting or removing the connector while the power is turned ON causes a controller failure.
Power Supply and Emergency Stop Circuit
The following is a circuit example where the emergency stop switch on the teaching pendant is
incorporated into the emergency stop circuit constructed by the customer:
● Internal drive-power cutoff relay type : ACON-C, PCON-C/CF
• In the case of the use of a single controller:
+24V
ACON-C, PCON-C/CF
External EMG External EMG
reset switch switch
S1
CR
S2
EMG-
*3
CR
MPI
MPO
24V
0V
• In the case of the use of two or more controllers:
+24V
ACON-C, PCON-C/CF
External EMG External EMG
reset switch switch
S1
CR
S2
EMG-
*3
CR
MPI
MPO
24V
0V
S1
S2
EMG-
CR *3
MPI
MPO
24V
0V
S1
S2
EMG-
*3
CR
MPI
MPO
24V
0V
*1 To cut off the motor drive power supply in conformance with safety category 2, connect 24V to the
EMG terminal and a contactor or other contact device to the MPI/MPO terminals.
*2 When the teaching pendant is connected to the controller, the controller automatically recognizes it.
*3 For the CR contact, the rated voltage and rated current are "24VDC" and "0.1A".
Host system <PLC>
Status indicator LEDs
Supplied flat cable
Axis number setting switch
Mode selector switch
Brake release switch
Actuator
EMG Switch for the
Teaching Pendant
MAX 0.1A
(30VDC)
Motor Power Breaker Relay
(Coil current 10mA or less)
GND
Motor power supply
Control power supply
CR
Coil current 0.1A or less
(30VDC)
EMG Switch for the
Teaching Pendant
MAX 0.1A
(30VDC)
Motor Power Breaker Relay
(Coil current 10mA or less)
GND
Motor power supply
Control power supply
Second Unit
nth Unit
CR
● Driving Source Interruption Relay: External Type
• In the case of the use of a single controller:
+24V
External EMG
reset switch
CR
• In the case of the use of two or more controllers:
+24V
External EMG
reset switch
CR
0V
0V
*1 To cut off the motor drive power supply in conformance with safety category 2, connect 24V to the
EMG terminal and a contactor or other contact device to the MPI/MPO terminals.
*2 When the teaching pendant is connected to the controller, the controller automatically recognizes it.
*3 For the CR contact, the rated voltage and rated current are "24VDC" and "0.1A".
Teaching Pendant
EMG Switch
ACON-CG,
External EMG PCON-CG
switch
MAX 0.1A
(30VDC)
S1
S2
EMG-
MPI
*3
CR
MPO
24V
0V
Coil current 0.1A or less
Teaching Pendant
EMG Switch
ACON-CG,
External EMG
PCON-CG
switch
MAX 0.1A
(30VDC)
S1
S2
EMG-
MPI
CR *3 MPO
24V
0V
S1
S2
Second Unit
EMG-
CR *3
MPI
MPO
24V
0V
S1
S2
nth Unit
EMG-
*3
CR
MPI
MPO
24V
0V
0V
Motor power supply
Control power supply
CR
(30VDC)
0V
Motor power supply
Control power supply
CR
