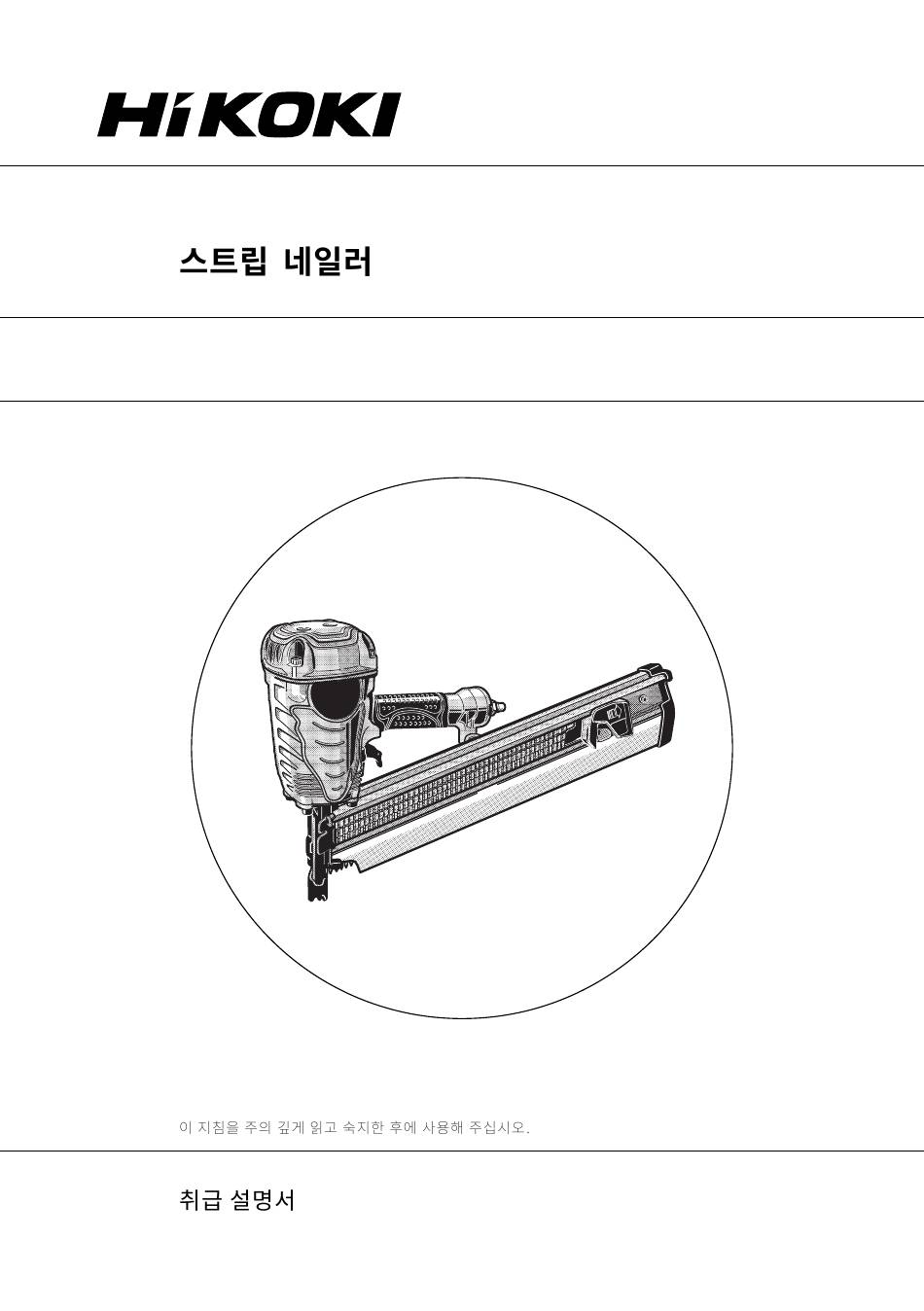

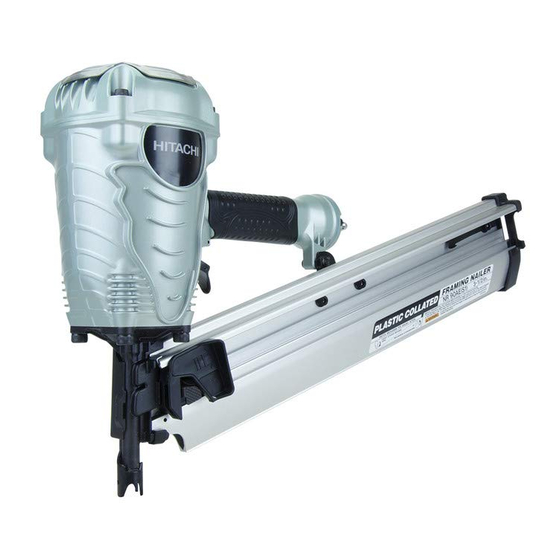

- Page 1 Strip Nailer NR 90AE (S1) Read through carefully and understand these instructions before use. Handling instructions...
- Page 4 English Head Guard Exhaust cover Body Piston O-ring Piston Driver blade Nose Trigger Push lever Firing head (Outlet) Magazine Ribbon spring Nail feeder (A) Nail feeder (B) Nail stopper Air plug Switching device Upward position Downward position Previously pull the trigger Disconnect air hose Shallow side Deep side...
-
Page 5: General Operational Precautions
English GENERAL OPERATIONAL PRECAUTIONS PRECAUTIONS ON USING NAILER 1. Operate the power tool safely for correct uses. 1. Safe operation through correct usage. Do not use the power tool for uses other than those This tool was designed for driving nails into wood and specifi... -
Page 6: Specifications
English 9. Before using the power tool, check the push lever. 16. Take care when nailing thin boards or the corners Before using the power tool make sure to check that the of wood. push lever and valve operate properly. Without nails When nailing thin boards, the nails may pass right loaded into the power tool, connect the hose and check through, as may also be the case when nailing the... -
Page 7: Nail Selection
1. Nailing procedures system, whichever is higher. This HiKOKI nailer is equipped with a nailer operation 2. Check on safety switching device. CAUTION Use SINGLE SEQUENTIAL ACTUATION MECHANISM ○... -
Page 8: Inspection And Maintenance
(2) remove all nails from the nailer; provide a reducing valve between the air compressor (3) supply 5 – 10 drops of HiKOKI pneumatic tool and nailer. Then, adjust the air pressure within the lubricant into the air plug on the nailer; and operating range of 0.49 –... - Page 16 Code No. C99196151 T Printed in Taiwan...
