INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS
MODEL
Improper use of this Nailer can result in death or serious injury!
This Manual contains important information about product safety.
Read and understand this Manual before operating the Nailer.
Keep this Manual available for others before they use the Nailer.
Never allow anyone who has not reviewed this manual.

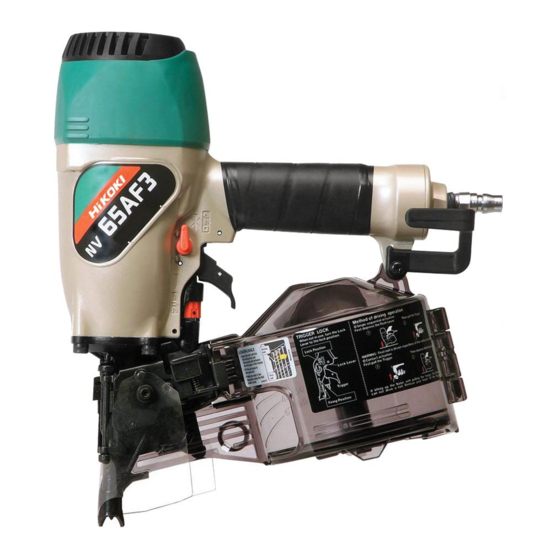

NV 65AF3
DANGER
NAILER
Advertisement
Table of Contents
Related Manuals for HIKOKI NV 65AF3
Summary of Contents for HIKOKI NV 65AF3
- Page 1 INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS NV 65AF3 MODEL NAILER DANGER Improper use of this Nailer can result in death or serious injury! This Manual contains important information about product safety. Read and understand this Manual before operating the Nailer. Keep this Manual available for others before they use the Nailer.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT INFORMATION ....................... 3 DEFINITIONS OF SIGNAL WORDS ..................... 3 SAFETY IMPORTANT SAFETY INSTRUCTIONS FOR USING NAILERS ............4 EMPLOYER’S RESPONSIBILITIES ....................... 6 OPERATION NAME OF PARTS ..........................7 SPECIFICATIONS ..........................8 NAIL SELECTION ..........................8 ACCESSORIES ............................8 STANDARD ACCESSORIES ...................... -
Page 3: Important Information
IMPORTANT INFORMATION READ AND UNDERSTAND ALL OF THE OPERATING INSTRUCTIONS, SAFETY PRECAUTIONS AND WARNINGS IN THIS MANUAL BEFORE OPERATING OR MAINTAINING THIS NAILER. Most accidents that result from the operation and maintenance of Nailers are caused by the failure to observe basic safety rules or precautions. -
Page 4: Safety
SAFETY IMPORTANT SAFETY INSTRUCTIONS FOR USING NAILERS READ AND UNDERSTAND ALL INSTRUCTIONS DANGER 1. ALWAYS WEAR EYE PROTECTOR. When operating the Nailer, always wear eye protector with side shields, and make sure others in work area wear eye protector, too. Eye protector must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against flying particles both from the front and side. - Page 5 If the Nailer appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a HiKOKI authorized service center. 25. DO NOT DISCONNECT AIR HOSE FROM NAILER WITH FINGER ON TRIGGER.
-
Page 6: Employer's Responsibilities
Unauthorized parts, accessories, or fasteners may void your warranty and can lead to malfunction and resulting injuries. Only service personnel trained by HiKOKI, distributor or employer shall repair the Nailer. Never modify or alter a nailer. Doing so may cause it to malfunction and personal injuries may result. -
Page 7: Operation
OPERATION NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Nailer. Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer. NAME OF PARTS Muffler Top Cover Protector... -
Page 8: Specifications
G Accessories other than those shown below can lead to malfunction and resulting injuries. STANDARD ACCESSORIES 1 Eye protector ..........1 2 Oiler ............. 1 3 Nose cap ............. 1 4 Case ............. 1 NOTE: Accessories are subject to change without any obligation on the part of HiKOKI. – 8 –... -
Page 9: Applications
Inspect the regulator before operation to be sure it operates properly. Lubricator ..The lubricator supplies an oil mist to the Nailer. Inspect the lubricator before operation to be sure the supply of lubricant is adequate. Use HiKOKI pneumatic tool lubricant. Regulator Compressor Side... -
Page 10: Lubrication
Filter-regulator-lubricator units should always be used. Keep the lubricator filled with HiKOKI pneumatic tool lubricant. If a lubricator is not available, supply 5 – 10 drops of HiKOKI pneumatic tool lubricant into the air plug on the Nailer twice a day. -
Page 11: Testing The Nailer
Before actually beginning the nailing work, test the Nailer by using the checklist below. Conduct the tests in the following order. If abnormal operation occurs, stop using the Nailer and contact a HiKOKI authorized service center immediately. (1) DISCONNECT AIR HOSE FROM NAILER. - Page 12 NOTE: Before loading nails in the magazine, adjust the plate. If the magazine cover is forcibly closed without adjusting the plate correctly, the nail holder may be damaged. (1) Grip the nail guide and knob with finger. Press the knob down and swing the nail guide open. And open the magazine cover.
-
Page 13: Nailer Operation
(5) Close the magazine cover first and swing the nail guide closed. Knob (6) Lock the knob correctly. Nail guide NOTE: Be careful not to deform the collated wires and not to disengage the nails with the guide surface. Otherwise, the nail guide will not close correctly. Magazine cover NAILER OPERATION Read section titled "SAFETY"... - Page 14 Driving This nailer is equipped with the push lever and dose not operate unless the push lever is depressed(upward position). There are two methods of operation to drive nails with this nailer. (1) Single sequential actuation(Trigger fire) WARNING First nail is driven regardless of the contact action. 1 Pull the trigger •...
- Page 15 Adjusting the nailing depth To assure that each nail penetrate to the same depth, be sure that (1) the air pressure to the Nailer remains constant(regulator is installed and working properly) (2) the Nailer is always held firmly against the workpiece. If nails are driven too deep or shallow into the workpiece, adjust the nailing depth in the following order.
-
Page 16: Maintenance
4 Remove the jammed nail with a slotted screwdriver Slotted Screwdriver 5 Cut the deformed collated wire/plastic sheet with nippers. Correct the deformation. In case of frequent jam,contact a HiKOKI authorizes service center. 2. Inspect the feeders 1 DISCONNECT AIR HOSE. -
Page 17: Service And Repairs
SERVICE AND REPAIRS WARNING Only service personnel trained by HiKOKI, distributor or employer shall repair the Nailer. Use only parts supplied or recommended by HiKOKI for repair. All quality Nailers will eventually require servicing or replacement of parts because of wear from normal use. - Page 18 Keep the Nailer operated properly. Open petcock on air compressor tank. Operator troubleshooting Most minor problems can be resolved quickly and easily using the table below. If problems persist, contact a HiKOKI authorized service center for assistance. PROBLEM CHECK METHOD CORRECTION Nailer operates, but no nail is Check for a jam.
-
Page 19: Parts List
– 19 –... - Page 20 Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. C99097511 Printed in Japan...
