Page 1

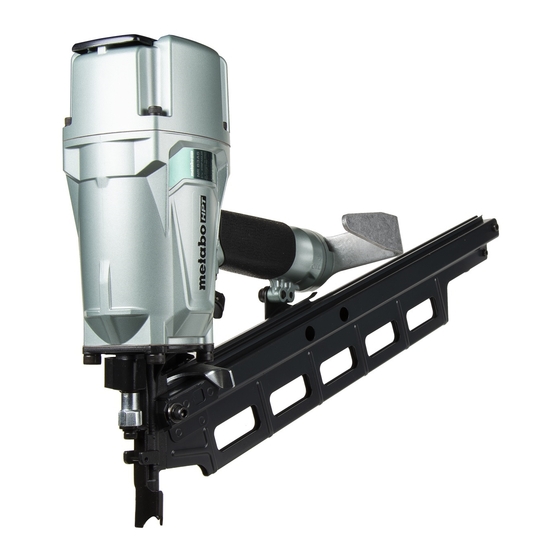

Strip Nailer 스트립 네일러 NR 83A5 Read through carefully and understand these instructions before use. 이 지침을 주의 깊게 읽고 숙지한 후에 사용해 주십시오 . Handling instructions 취급 설명서...
Page 2
Enlarged view of the valve part Valve Part...
Page 5
English 한국어 Exhaust cover 배기 커버 Body 바디 캡 Piston O-ring 피스톤 오 링 Piston 피스톤 Driver blade 드라이버 톱날 Nose 노즈 Adjuster 조절기 Push lever 푸시 레버 Firing head (Outlet) 발사 헤드(출구) Magazine 매거진 Nail feeder 네일 피더 Stop lever 스톱...
English GENERAL OPERATIONAL PRECAUTIONS PRECAUTIONS ON USING NAILER 1. Operate the power tool safely for correct uses. 1. Safe operation through correct usage. Do not use the power tool for uses other than those This tool was designed for driving nails into wood and specifi...
English 9. Before using the power tool, check the push lever. 16. Take care when nailing thin boards or the corners Before using the power tool make sure to check that the of wood. push lever and valve operate properly. Without nails When nailing thin boards, the nails may pass right loaded into the power tool, connect the hose and check through, as may also be the case when nailing the...
1. Nailing procedures Check the nailer for air leaks and defective or rusty This HiKOKI nailer is equipped with a nailer operation parts. switching device. ○ Check whether or not the push lever works correctly.
Page 9
(2) remove all nails from the nailer; Confi rm that the change stopper has completely returned (3) supply 5 – 10 drops of HiKOKI pneumatic tool to original position inside the trigger (See. Fig. 7). lubricant into the air plug on the nailer; and Depress the nail outlet onto the desired point;...
Clean the magazine. Remove paper chips or wooden chips which may have accumulated in the magazine. Lubricate it with HiKOKI pneumatic tool lubricant. 2. Check on mounting screws for each part At regular intervals check every part for loose mounting screws and whether or not there are any air leaks.
Page 11
한국어 일반 작동 주의 사항 네일러 사용 시 주의 사항 1. 전동 공구는 용도에 맞게, 안전하게 사용해야 합니다. 1. 올바른 사용법으로 안전하게 작동합니다. 이 지침에 명시된 용도 이외의 용도로 전동 공구를 이 공구는 목재 또는 유사한 소재에 네일을 타입할 수 사용하면...
Page 12
한국어 9. 전동 공구를 사용하기 전 푸시 레버를 확인해야 합니다. 16. 얇은 판재 또는 목재의 모서리를 타정할 때는 주의해야 전동 공구를 사용하기 전 푸시 레버와 밸브가 적절하게 합니다. 작동하 는지 반드시 확 인해야 합니다. 전동 공구에 얇은 판재를 타정하는 경우에는 네일이 그대로 관통할 네일을...
Page 13
한국어 네일 선택 사용하기 전 안내 1. 공기 압력을 확인해야 합니다 이 네일러는 아래 표에 표시된 네일만 타입할 수 있습니다. 주의 공기 압력은 0.49 0.83 MPa(4.9 8.3 bar)을 계속 NR83A5 유지해야 합니다. 네일 직경과 길이 그리고 타정 대상 목재의 경도에 플라스틱...
Page 14
(1) 네일러에서 에어 호스를 분리합니다. 체인지 스 토퍼가 트리거 안 에서 원위치로 완전히 (2) 네일러에서 모든 네일을 빼냅니다. 복귀되었는지 확인합니다(참조: 그림 7) (3) 네일러의 에어 플러그 안에 HiKOKI 공기압 공구 원 하 는 위 치 에 서 네 일 출 구 를...
Page 15
반드시 분리해야 합니다. 1. 매거진 검사 에어 호스를 분리합니다. 매거진을 청소합니다. 매거진 안에 누적될 수 있는 종이 조각이나 나무 조각을 제거합니다. HiKOKI 공기압 공구 윤활유를 사용하여 윤활합니다. 2. 각 부분의 장착 스크루를 확인합니다 모든 부분을 정기적으로 검사하여 장착 스크루 헐거움과...
