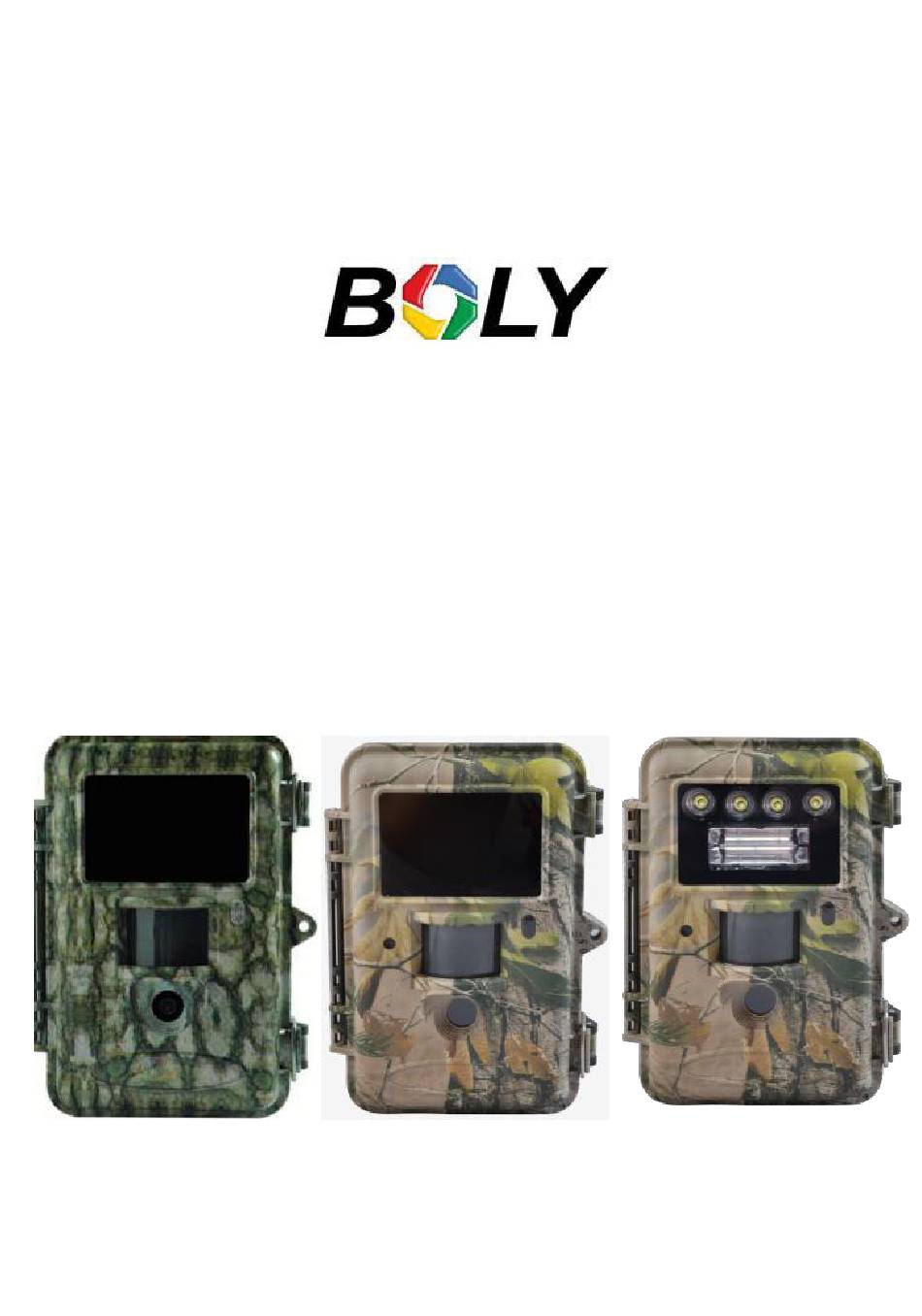

- Page 1 User Manual Trail Camera SG560K/SG560X/SG562-C/SG2060 Series/SG562-D...
-
Page 2: Table Of Contents
Boly Trail Cameras Table of Contents 1.Getting Started ..............1 2.Camera Operation............4 2.1 Batteries/ Power Supply ........4 2.2 SD Card Information ........... 4 2.3 Camera Mode............5 2.4 Trigger Mode............6 3. Camera Setup Settings and Display......7 3.1 Settings Interface & Display....... 7 3.2 Manual Image / Video Capturing......8... -
Page 3: Getting Started

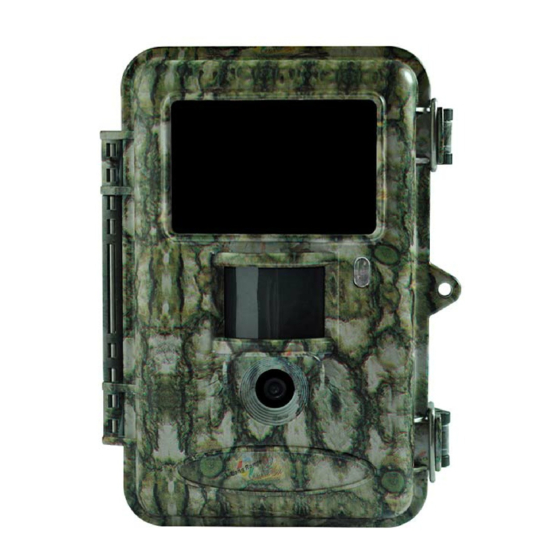

Boly Trail Cameras 1.Getting Started ① ② ③ ④ ⑤ ⑥ ⑧ ⑦ ② Flash: Available for SG560X/ ① IR LED ④ Microphone SG2060-X/SG562-D/SG2060-D ⑥ Lens ③ Indication ⑧ Speaker: SG2060Series/SG562-D ⑤ PIR ⑦ Lock... - Page 4 Boly Trail Cameras 4x1.7mm DC in 4x1.7mm DC in Model Product Features SG560K-18mHD Black IR, 100ft detection range SG560X-18mHD Motion sharp camera, 100ft. detection range SG562-C White LED Flash Camera, color pictures and videos at night, Motion Sharp Technology...
- Page 5 Boly Trail Cameras SG562-D Combination White LED/Xenon Flash, color pictures and videos at night SG2060-X Motion Sharp 36MP camera, Motion Sharp Technology SG2060-U Ultra-High Quality 25MP camera, Dual Focus SG2060-K Ultra-High Quality 36MP, Extra long detection range SG2060-D Combination White LED/Xenon Flash, color pictures and videos at night，...
-
Page 6: Camera Operation
Boly Trail Cameras 2.Camera Operation 2.1 Batteries/ Power Supply The camera is powered by four or eight AA batteries. High-density, high-performance, rechargeable alkaline or NiMH batteries are recommended. When the batteries are low, the camera will automatically shut down. A DC 6V/2A external power supply adapter (not included) can also be used to power the camera. -
Page 7: Camera Mode
Boly Trail Cameras The camera will operate properly with a locked SD card inserted, but the card will not be able to store captured images or videos taken by the camera. Do not remove the SD card while the camera is on. -
Page 8: Trigger Mode
Boly Trail Cameras Customize the camera settings, or playback pictures and videos the camera has taken on the LCD display. OFF Mode Turns off the camera. The camera will still consume a small amount of battery power while in the OFF mode. It is recommended to remove the batteries if the camera will not be used for a long period of time. -
Page 9: Camera Setup Settings And Display
Boly Trail Cameras triggering, users need to set PIR sensitivity to low, normal, or high according to the external environment, and set the Timer interval to a desired non-zero value. The camera will capture pictures or videos in a preset time interval even if there is no motion detected. -
Page 10: Manual Image / Video Capturing
Boly Trail Cameras When the camera is in SETUP mode, the screen will activate and display the following: 3.2 Manual Image / Video Capturing Place the camera in SETUP mode and press to manually capture photos or record video. Press again to stop capturing. -
Page 11: Camera Setup Operation
Boly Trail Cameras To delete: Press DEL to delete images or videos in the playback state. If you are in the preview state,press to enter into playback state first. 3.4 Camera Setup Operation To view the camera settings menu, slide the power switch to the setup position.Use the ▼or▲... - Page 12 Boly Trail Cameras clip.This mode disables the photo burst function. Default: Photo To set the camera’s clock.The clock format is YY/MM/DD hour:minute:second.Press▼▲to Set Clock change the value.Press ►◄to select date or time field. Choose the image size,e.g.18MP,12MP,5MP or 25MP,14MP,8MP or 36MP,25MP,14MP.
- Page 13 ON.Press▼▲ to decrease or increase the value.Its value Video Length extends from 5 to 120 seconds or 180 seconds(for SG2060 Series). (SG560K-18mHD from 5 to 60 seconds) Default:10Sec If time lapse is on, the camera can capture...
- Page 14 Boly Trail Cameras function is disabled.Changing this parameter to a non-zero value turns on the Time Lapse mode,and the camera will take photos at the given time interval.NOTE: If the PIR Trigger is set to off,then Time Lapse can’t be set to off.
- Page 15 Boly Trail Cameras OFF: the camera is not triggered by motion to capture pictures or videos. NOTE: The sensitivity of the PIR is strongly related temperature. higher temperature leads to a lower sensitivity. Therefore, it is suggested to use higher...
- Page 16 (Available for SG2060-D) Default: Xenon Choose the days of the week the camera works on. Not available for SG2060 Series and Work Day SG560K-18mHD. Default: All This setting controls when the camera is active each day.
- Page 17 Boly Trail Cameras option settings. The values are set to military time which ranges from 00:00 to 23:59. Default: OFF You can set an A-Z indicator for each of your Camera cameras in order to distinguish which photos Position are from a specific camera.
- Page 18 Boly Trail Cameras with the name of IMAG0001.WAV after formatting the SD card and setting the game call to on, only available for SG2060series. Default: Off In hunting mode, when the SD card is full, the first images or videos will be replaced by new pictures or videos.
- Page 19 Boly Trail Cameras 3.5 Troubleshooting Q1: There is something in front of the camera lens.Is the camera broken? A: The camera is not broken. What’s in front of the lens is an IR-Cut filter. When the camera is powered on, the IR-Cut will reset and cover the lens. When the...
- Page 20 Boly Trail Cameras PIR Detection Zone This camera has a new PIR, which is patented. The new PIR’s detection range can reach 100ft. in good environments. The following picture compares the detection zone between the normal and new PIR. The PIR detection angle (α) is smaller than the field of view (FOV) angle (β).
-
Page 21: Technical Specifications
Boly Trail Cameras 4.Technical Specifications Items SG562-D SG562-C SG560X/ SG2060Series SG560K Image Sensor 14MP F/NO=2.4 F/NO=2.4 Lens FOV=55° FOV=57° Detection Range 100ft. Illumination 100ft. 100ft. 100ft. 100ft. Display Screen 2"LCD 2"LCD 2"LCD 2"LCD 14/25/36MP 5MP/12MP/18MP (SG2060-K/X/ Picture Resolution 8/14/25MP (SG2060-U) - Page 22 The information contained herein is based on tests and data that Boly Inc. believes to be reliable, but the accuracy or completeness is not guaranteed. No warranty of any kind is made with respect to any of the above representations.
-
Page 23: Parts List
Boly Trail Cameras 5.Parts List Part Name Quantity Digital Camera USB Cable Mounting Bracket Belt User’s Manual Warranty Card Version 4.2...
