Summary of Contents for Boly SG520

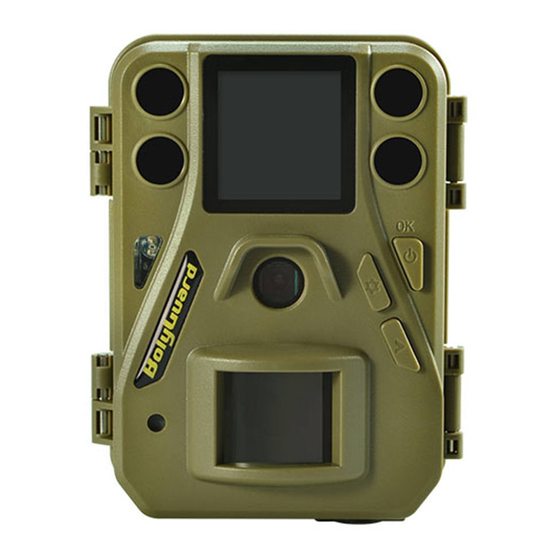

- Page 1 Infrared Digital Scouting Camera User Manual SG520...
-
Page 3: Table Of Contents
Table of Contents 1.Getting Started ................1 2 .Camera Operation ..............3 2.1 Batteries / Power Supply ..........3 2.2 SD Card Information ........... 3 2.3 Camera Modes ..............4 2.4 Trigger Mode ..............5 3. Camera Setup Settings and Display ......... 7 3.1 Settings Interface &... -
Page 5: Getting Started

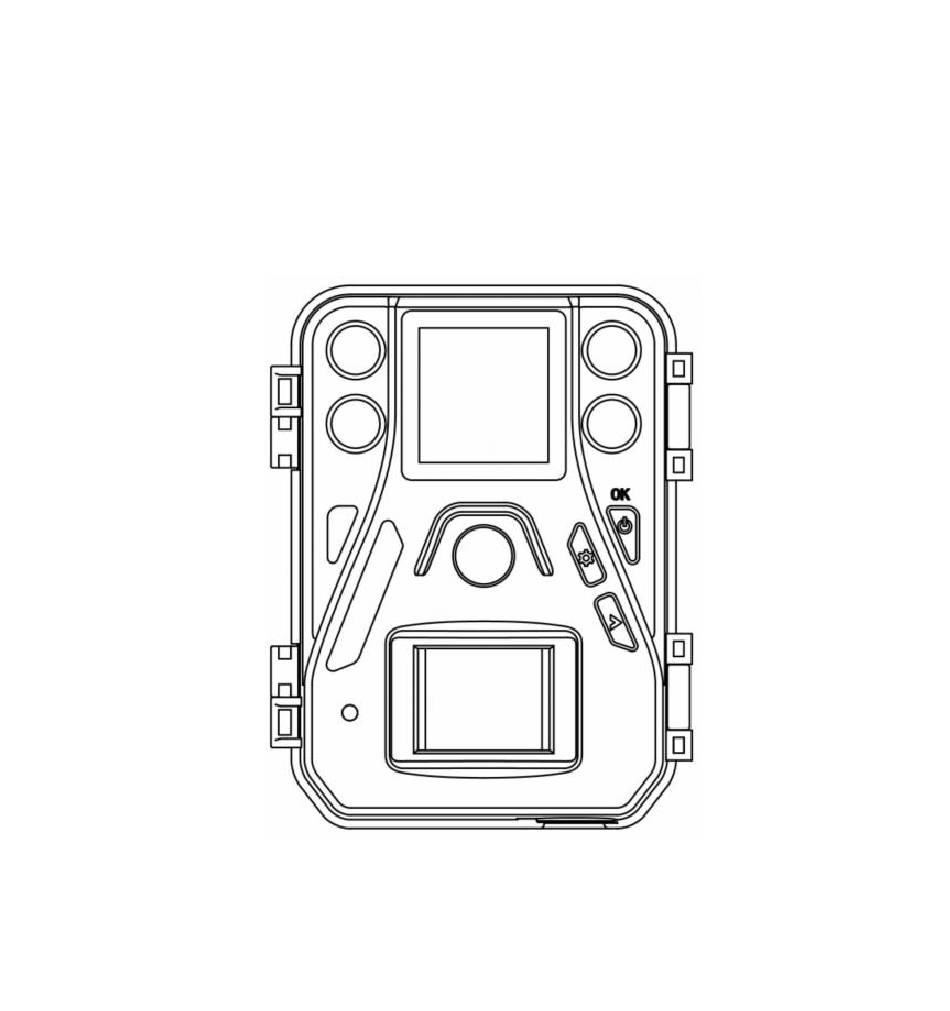

Boly Trail Camera-SG520 1.Getting Started Page 1... - Page 6 Boly Trail Camera-SG520 External AC/DC connector 4*1.7mm Page2...
-
Page 7: Camera Operation
Boly Trail Camera-SG520 2 .Camera Operation 2.1 Batteries / Power Supply The camera is powered by four AA batteries - high-density, high-performance, rechargeable alkaline or NiMH batteries are recommended. When the batteries are low, the camera will beep twice and automatically shut down. -
Page 8: Camera Modes
Boly Trail Camera-SG520 The camera will operate properly with a locked SD card inserted, but the card will not be able to store captured images or videos taken by the camera. Do not remove the SD card while the camera is on Removing the SD card, while the camera is on, risks damaging the internal components of the camera. -
Page 9: Trigger Mode
Boly Trail Camera-SG520 programmed settings. Hunting mode is automatically activated if the camera is turned on and left alone for 20 seconds. Before entering Hunting Mode, the front (red) LED light will continuously blink for approximately 10 seconds, and then turn off. - Page 10 Boly Trail Camera-SG520 interval. Users need to set the PIR sensitivity to OFF if they want the camera to work only at preset intervals. PIR and Timer Triggering: For both PIR triggering and Timer triggering, users need to set PIR sensitivity to low, normal, or high based on the external environment, and set the Timer interval to a desired non-zero value.
-
Page 11: Camera Setup Settings And Display
Boly Trail Camera-SG520 3. Camera Setup Settings and Display 3.1 Settings Interface & Display To update the camera settings, turn the camera on or place it in ON mode by pressing and holding down the OK button until the display screen activates. -
Page 12: Manual Image / Video Capturing
Boly Trail Camera-SG520 3.2 Manual Image / Video Capturing Place the camera in ON mode and press to manually capture ► photos or record video. Press once to take a picture, when the ► CAMERA MODE option is Photo. When the CAMERA MODE... - Page 13 Boly Trail Camera-SG520 press OK or the camera will retain the previous setting. Main Menu Description Choose language need. It supports six languages: English, Swedish Finnish, German, Language French，Spanish, Czech Swedish. Default: English There are three camera modes: Photo, Video and Camera Mode Pic+Video.
- Page 14 Boly Trail Camera-SG520 mode, and the camera will take photos at the given time interval. NOTE: If the PIR Trigger is set to off, then Time Lapse can’t be set to off. Default: OFF Choose the sensitivity of PIR. The higher the sensitivity, the more easily the motion sensor will be triggered.
-
Page 15: Troubleshooting
Boly Trail Camera-SG520 4 .Troubleshooting 1. There is something in front of the camera lens. Is the camera broken? A: The camera is not broken. What’s in front of the lens is called an IR-cut filter. When the camera is powered on, the IR-cut will be reset and cover the lens. -
Page 16: Pir Detection Zone
Boly Trail Camera-SG520 5. PIR Detection Zone This camera uses a new PIR design, which is patented. The new PIR’s detection range can reach 85ft in good environments. The following picture compares the detection zones of a normal PIR and the new PIR. -
Page 17: Technical Specifications
Boly Trail Camera-SG520 6.Technical Specifications 5MP CMOS Sensor Image Sensor 10MP, 16MP Interpolation F/NO=2.2 Lens FOV(Field of View)=55° PIR detection range 85ft Display Screen of 1.44” LCD Remote Control Memory Card Up to 32 GB 16MP=4896×3264 10MP = 3648 ×2736 Image Resolution 5MP = 2560×1920... -
Page 18: Parts List
Boly Trail Camera-SG520 7. Parts List Part Name Quantity Camera Belt User Manual Warranty Card For more details about our product or software, please visit our website(s) at: http://www.bolymedia.com/index/Support or https://bolyinc.com...
